Product Overview

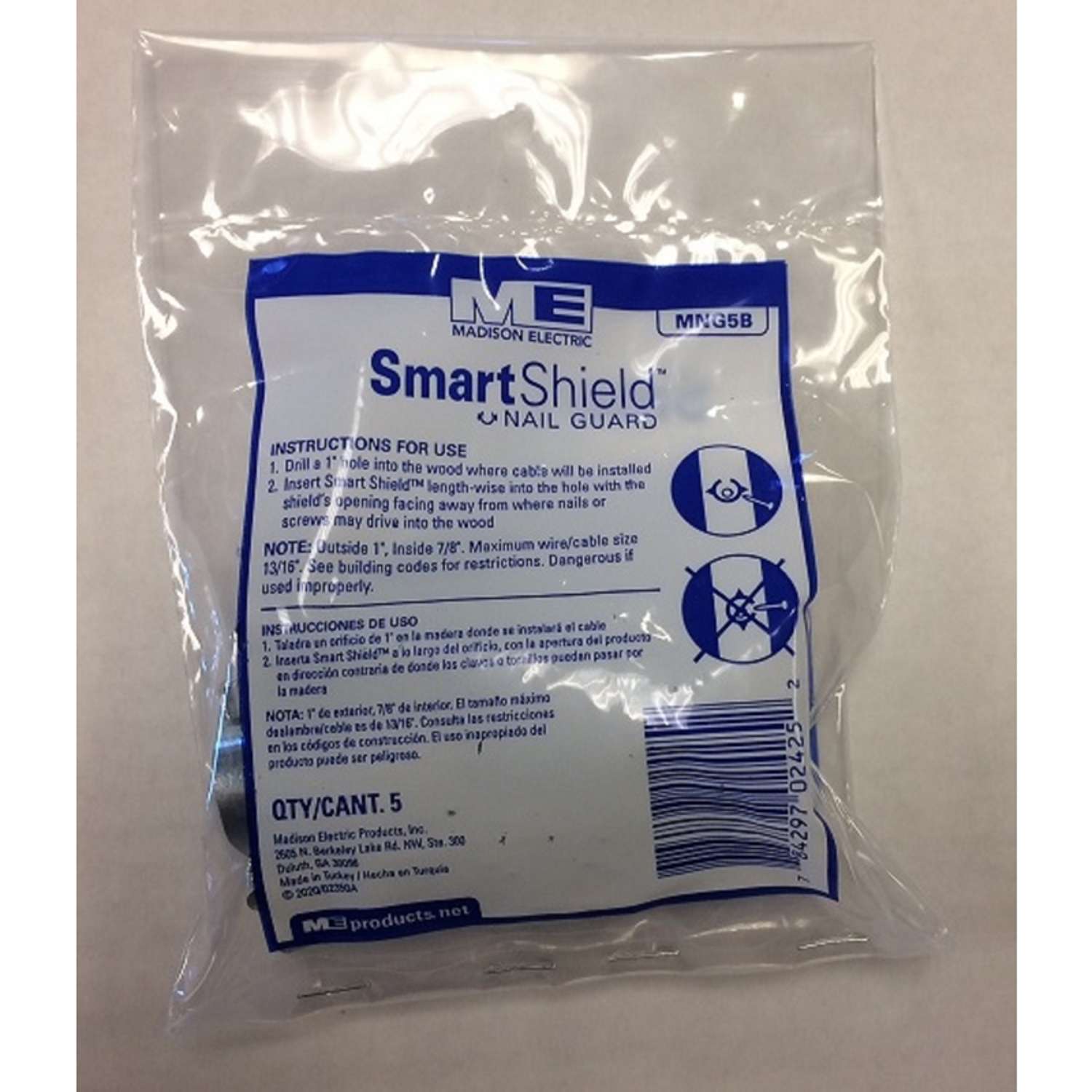

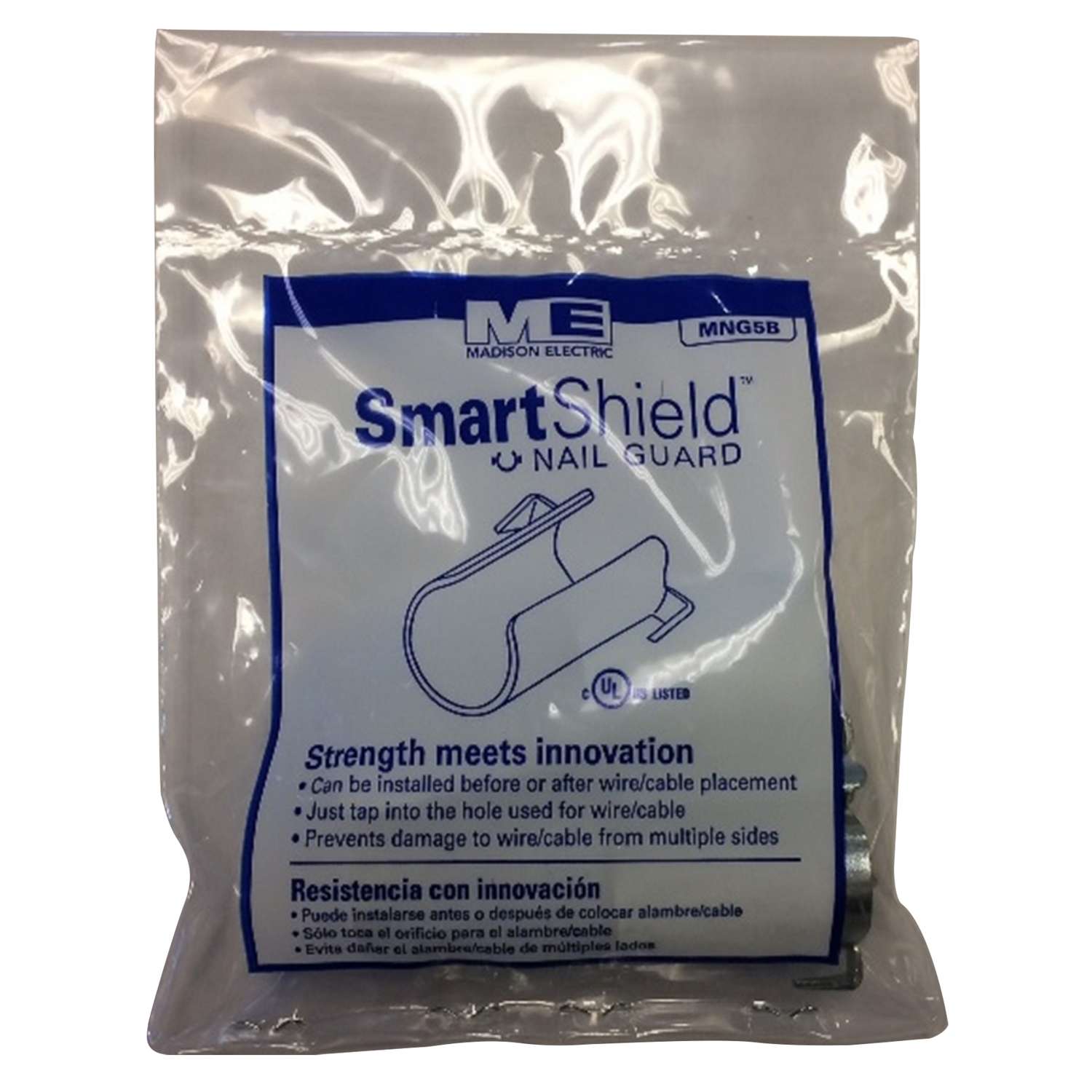

Madison’s new Smart Shield is an innovative steel nail guard that protects wire and cable in wood framing. The unique cylindrical shape houses wire and cable for better protection from both sides of the stud, eliminating the need for multiple standard nail plates. Smart Shield is faster and easier to install and eliminates drywall budge caused by using surface mounted nail plates. Manufactured with heat-treated steel for strength, Smart Shield is also zinc plated to reduce electrolysis. Smart Shield is resistant to direct strikes from nail guns and screws and preventing damage to electrical power cables, potentially shorting the conductors and starting a fire.
  • Provides protection to both sides of the stud
  • Faster and easier to install than traditional nail plates
  • Can be installed before or after cable is placed
  • Safer to handle, less chance on injury caused from protruding flat plate barbs
  • Wont bend when installing like flat plates

Specifications

  • Brand Name: Madison Electric
  • Sub Brand: Smart Shield
  • Product Type: Nail Guard
  • CSA LIsted: Yes
  • Color: Silver
  • Depth: 1.61 inch
  • ETL Listed: Yes
  • Insulating: No
  • Length: 1 inch
  • Material: Steel
  • Number in Package: 5 pack
  • Packaging Type: Bagged
  • Brand Name: Madison Electric
  • UL Listed: Yes
  • Sub Brand: Smart Shield
  • Click here to see the Safety Data Sheets for this product.
