Product Overview

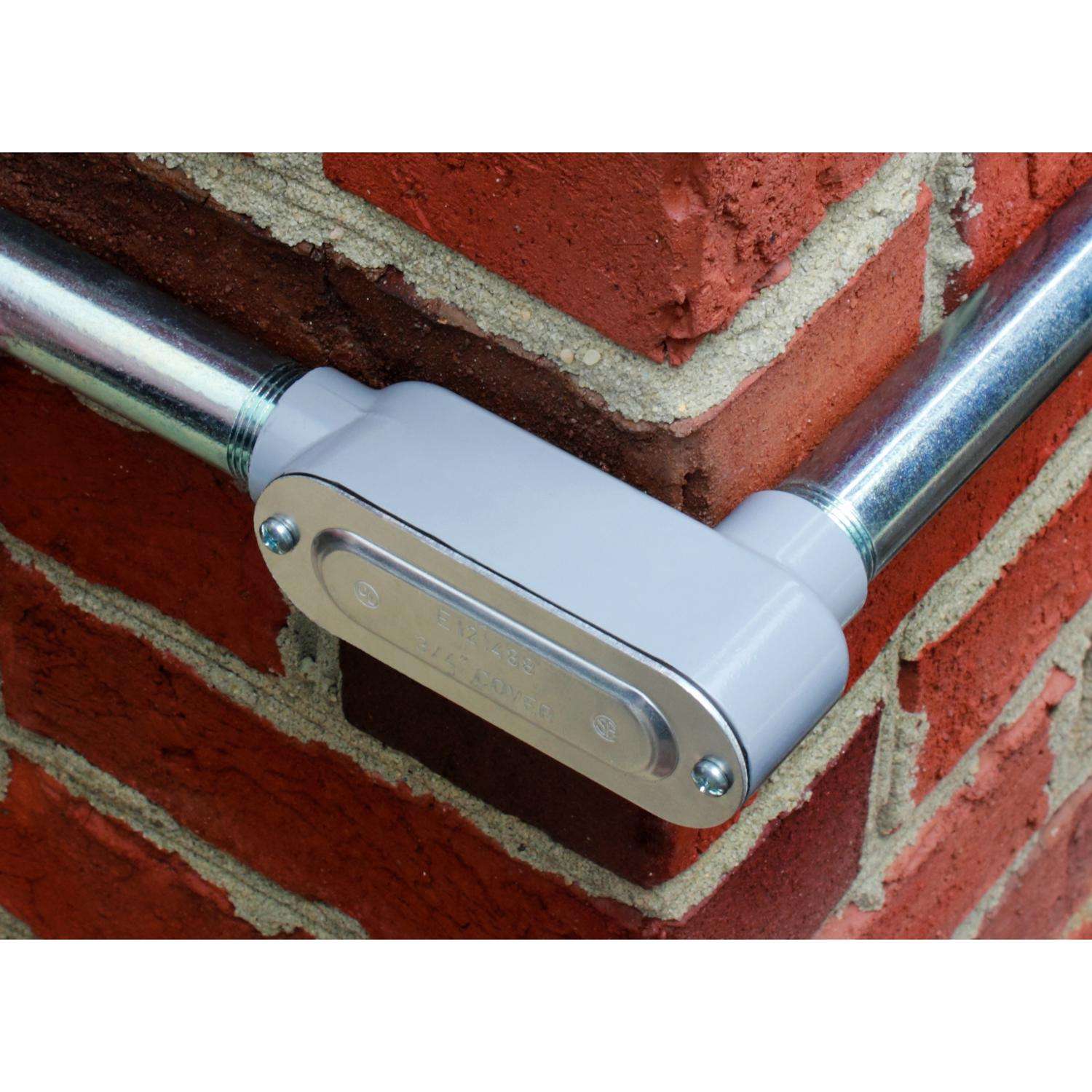

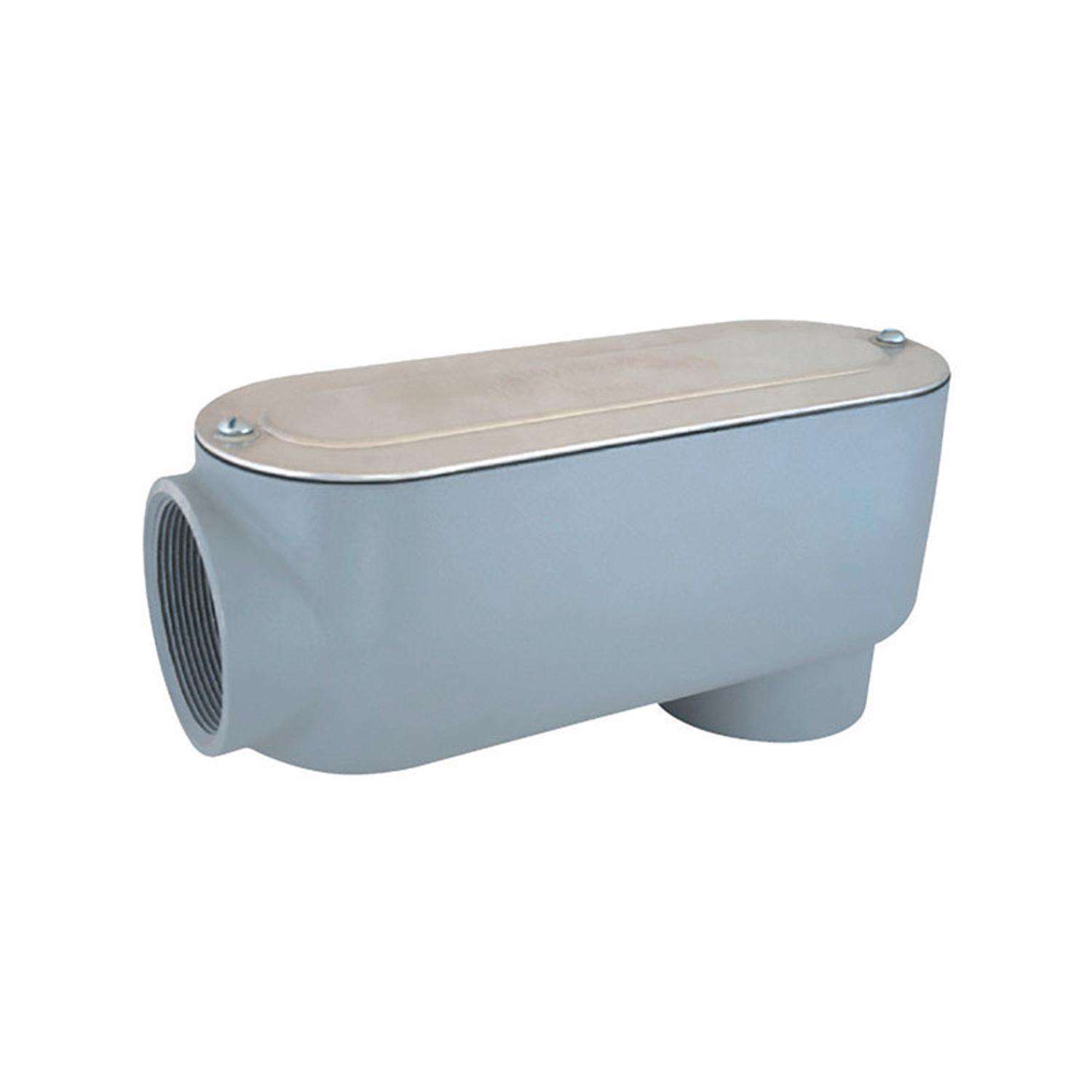

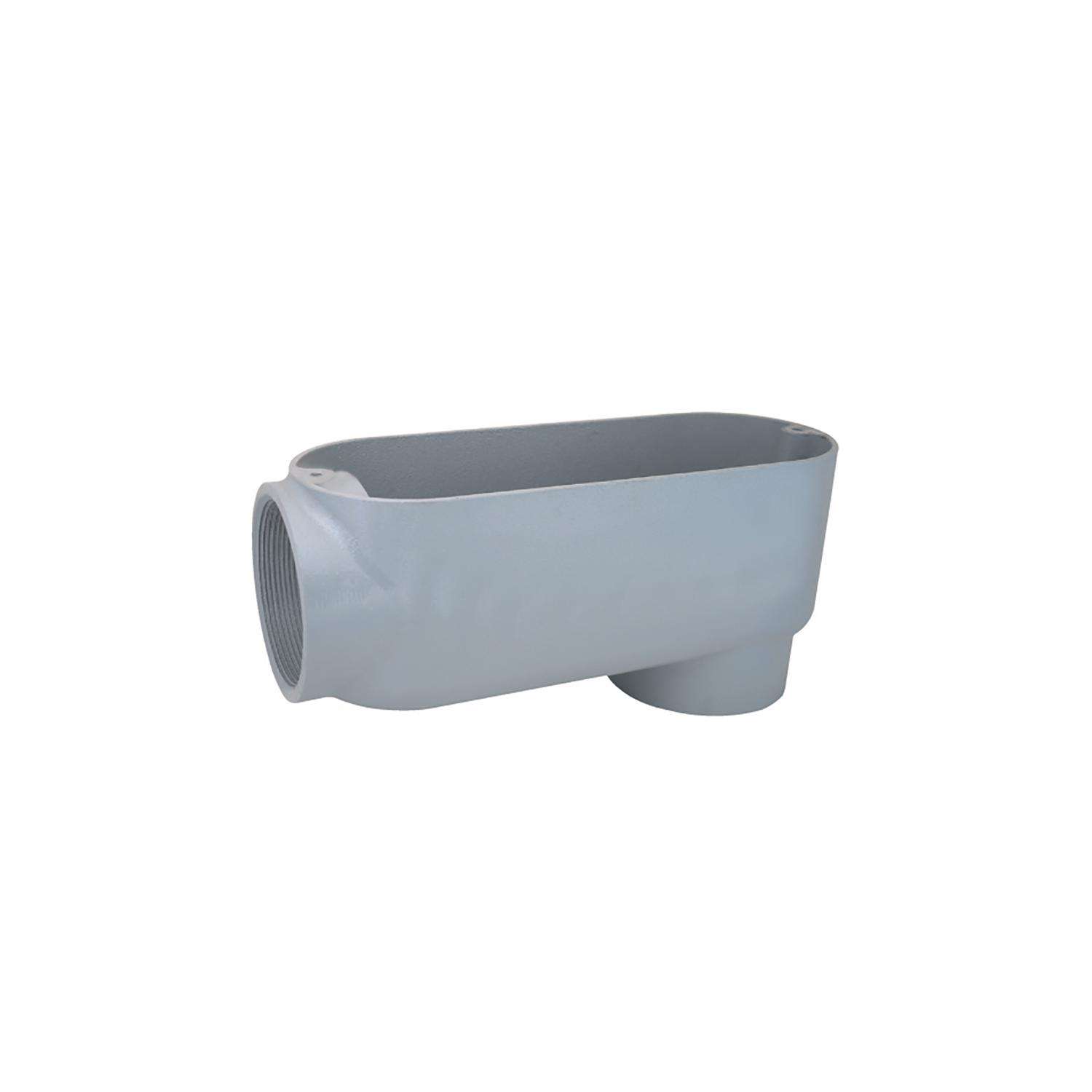

The Sigma ProConnex Conduit Bodies are used to gain access to the interior of a raceway for wire pulling, inspection and maintenance where the raceway changes direction. These aluminum die-cast Conduit Bodies feature a removable aluminum cover that allows access to the interior of the raceway. Conduit Bodies are pre-assembled with cover and gasket and are suitable for use in dry locations.

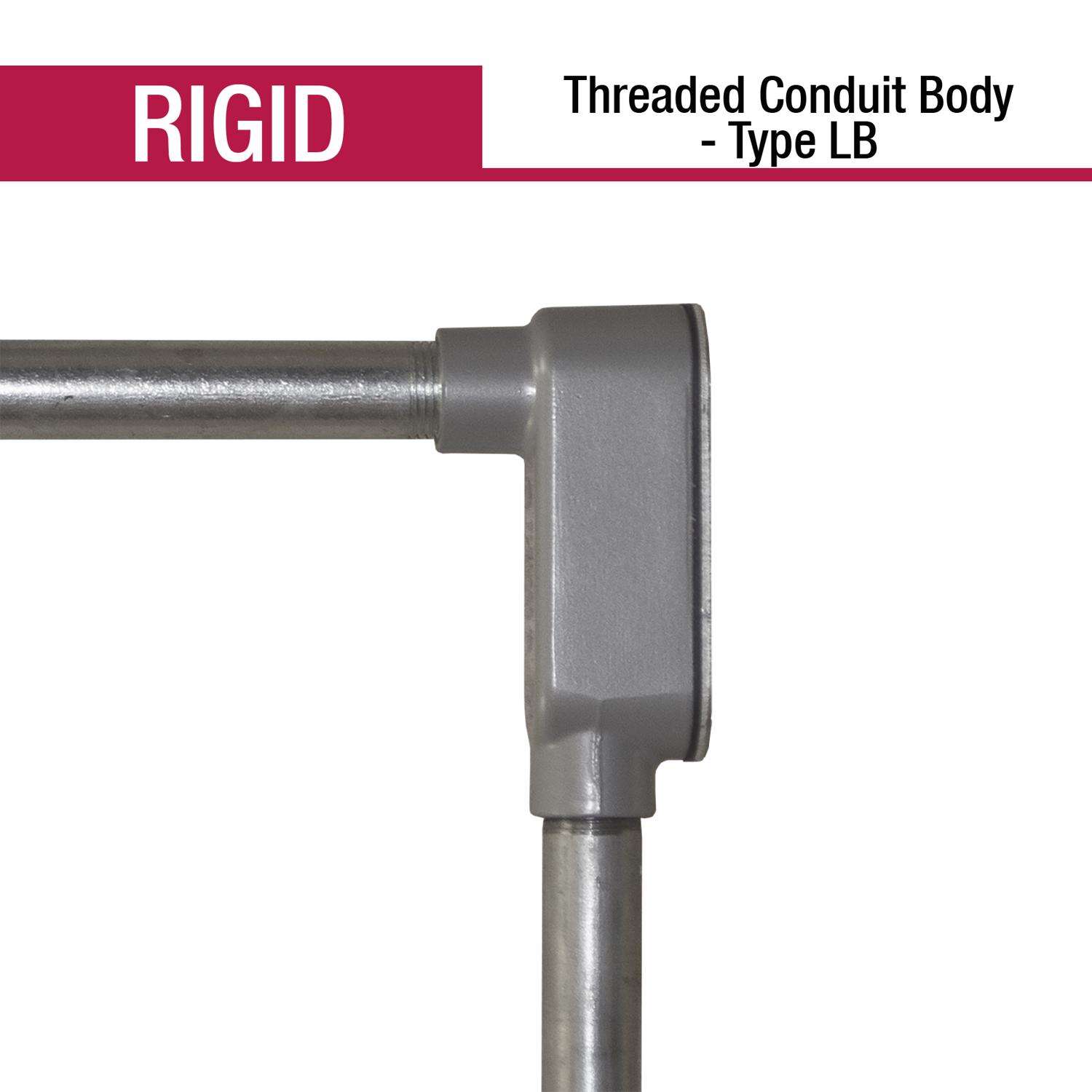

  • Type LB conduit bodies connect lengths of 1-1/2-in rigid conduit or IMC
  • Features removable aluminum cover that allows access to the interior of the raceway
  • Aluminum die-cast construction
  • Pre-assembled with stamped cover and rubber gasket
  • Product is UL and CSA listed, suitable for wet locations *

Specifications

  • Brand Name: Sigma Engineered Solutions
  • Sub Brand: ProConnex
  • Product Type: Conduit Body
  • CSA LIsted: Yes
  • Conduit Compatibility: Rigid/IMC
  • Connector Type: Conduit Body
  • Diameter: 1 1/2 inch
  • Material: Die Cast Aluminum
  • Number in Package: 1 pack
  • Brand Name: Sigma Engineered Solutions
  • UL Listed: Yes
  • Sub Brand: ProConnex
