Product Overview

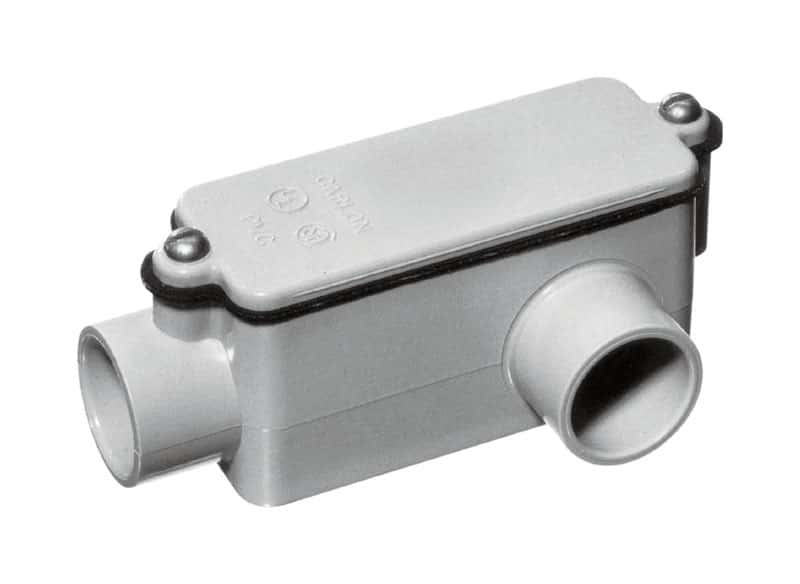

Carlon E984G-CAR 1-1/4" Electrical PVC "LL" access fitting. Used for a 90 degree change of direction of a conduit run. Rectangular shaped conduit body with a removable cover and foam-in-place gasket. Facing the cover side with the end wall hub pointing up, the second hub is in the left side wall. UL listed.
  • 1-1/4" Type-LL Conduit Body
  • Used for a 90 degree change of direction of a conduit run
  • Rectangular shaped conduit body with a removable cover and foam-in-place gasket
  • For indoor and outdoor use in exposed applications
  • 2 unthreaded hubs
  • For use with Schedule 40 and 80 Conduit
  • Facing the cover side with the end wall hub pointing up, the second hub is in the left side wall
  • Length 7-31/65 Inch X Width 2-3/4 Inch
  • Volume: 32 cubic inch
  • UL listed and CSA Certified

Specifications

  • Brand Name: Carlon
  • Product Type: 90 Degree Connector
  • Application: Changing direction in a run of conduit
  • CSA LIsted: Yes
  • Conduit Compatibility: PVC
  • Connector Type: Conduit Body Type LL
  • Diameter: 1 1/4 inch
  • Application: Changing direction in a run of conduit
  • Knockout Original Size: 1-1/4 inch
  • Material: PVC
  • Number in Package: 1 pack
  • Schedule Type Number: 80 schedule
  • Brand Name: Carlon
  • UL Listed: Yes
  • Indoor or Outdoor: Indoor and Outdoor
  • Click here to see the Safety Data Sheets for this product.
