Product Overview

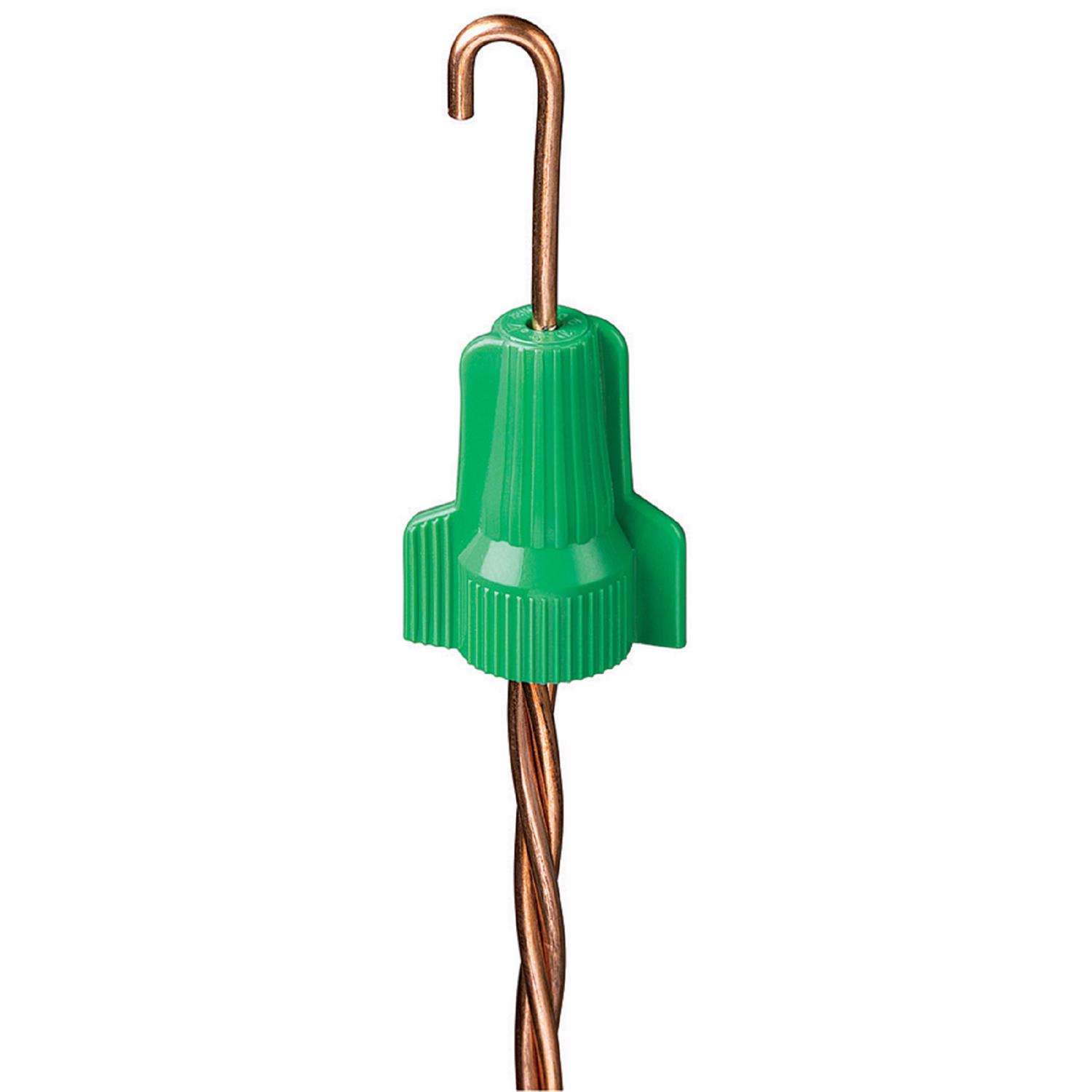

Green winged wire connectors are designed to make electrical ground connections. With a feed through hole in the top of the connector, this specialty grounding only connector allows for 1 wire to be extended beyond the top of the connector to form a pigtail connection for a device or box, while connecting the other grounds together as well. The contoured wing design provides maximum torque for a variety of electrical applications while the co-polymer shell and live-action spring expand for smooth, progressive tightening providing dependable connections. With a tough, flame-retardant shell that withstands environmental extremes and a long, deep skirt to provide maximum dielectric protection to prevent turned-back strands, they bring comfort and performance at a price that is right.
  • Use to connect and insulate 2 or more copper wires together inside an approved electrical box
  • Ribbed cap provides positive grip for fast, easy installation
  • Expanding, square-wire spring creates secure connections
  • For copper to copper connections only; do not use on aluminum wire
  • Tough, UL 94V-2 flame-retardant shell rated for 105 C or 221 F
  • Wide, deep skirt opening accommodates a variety of wire combinations
  • Rated for 600-Volt, 1,000-Volt in lighting fixtures and signs

Specifications

  • Brand Name: Ideal Industries
  • Sub Brand: WingTwist
  • Product Type: Wire Connectors
  • Color: Green
  • Number in Package: 10 pack
  • Packaging Type: Bagged
  • Brand Name: Ideal Industries
  • UL Listed: Yes
  • Sub Brand: WingTwist
  • Click here to see the Safety Data Sheets for this product.
