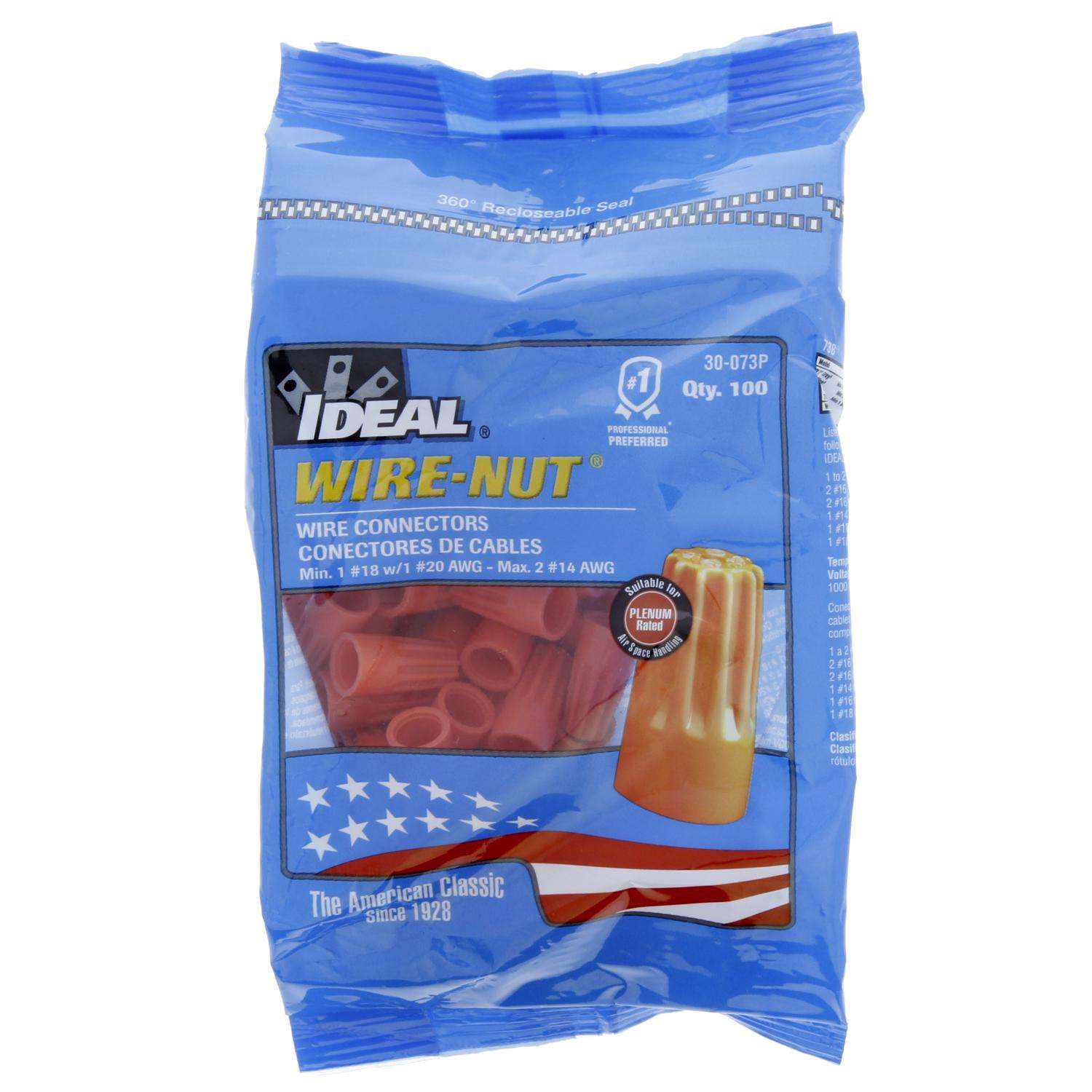

Ideal Industries Insulated Wire Wire Connector Orange 100 pk
Shop all Ideal Industries
Item # 3565587
| Mfr # 30-073P
Roll over image to zoom
Image gallery
Product images
Roll over image to zoom
Product images
Product images
Price
$8.99
Pickup
Delivery
From:
Returns
Free returns on most items within 30 days.
Product Overview

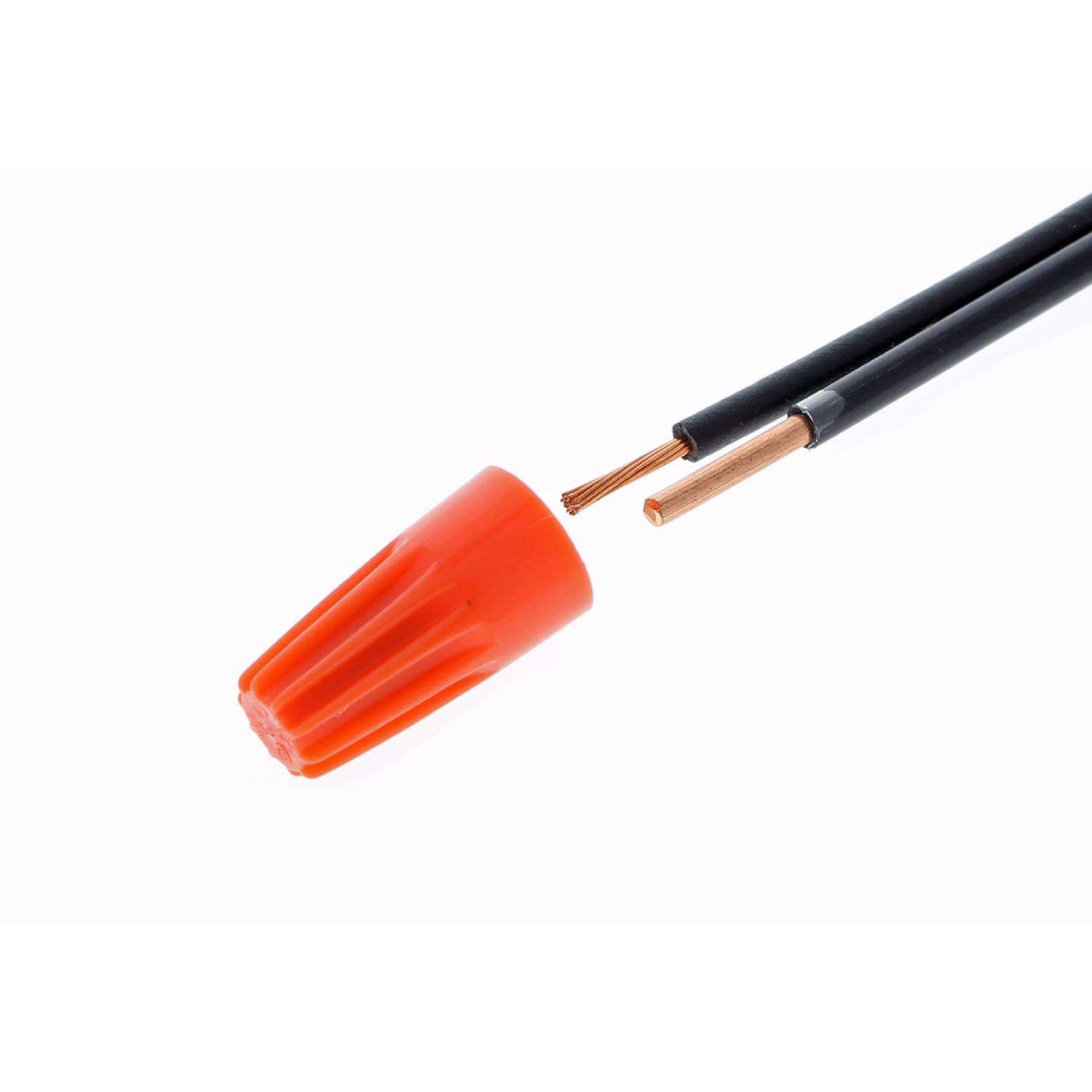

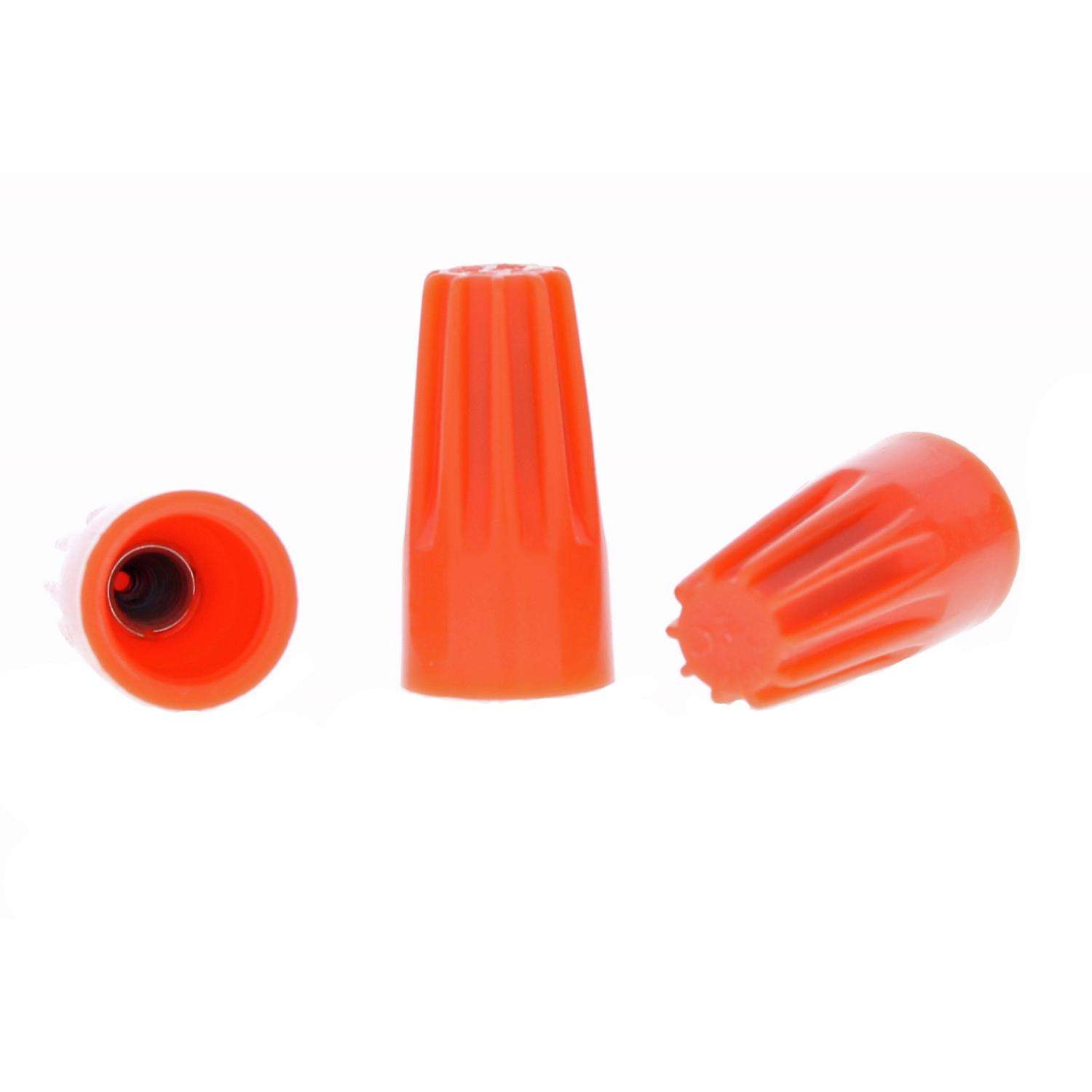

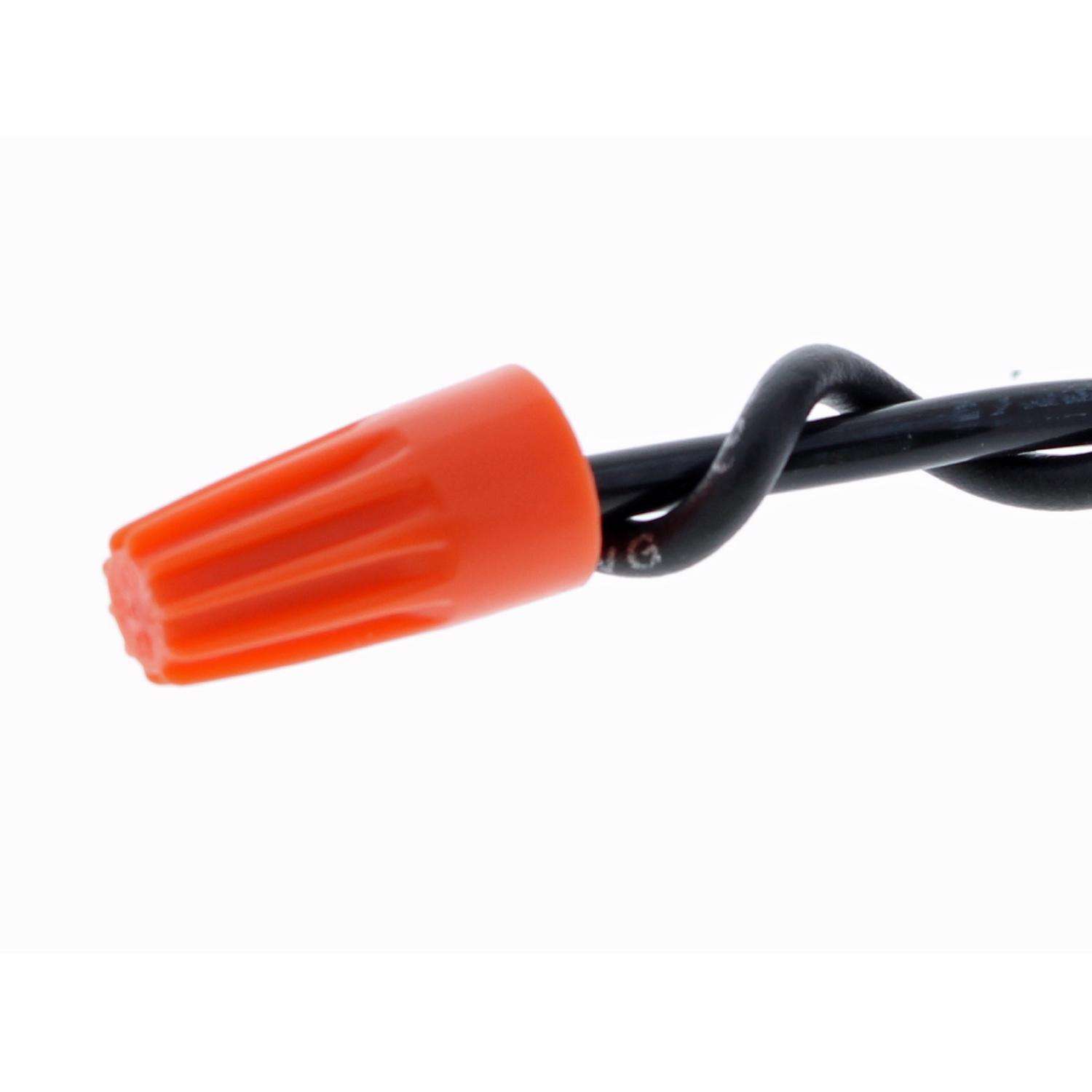

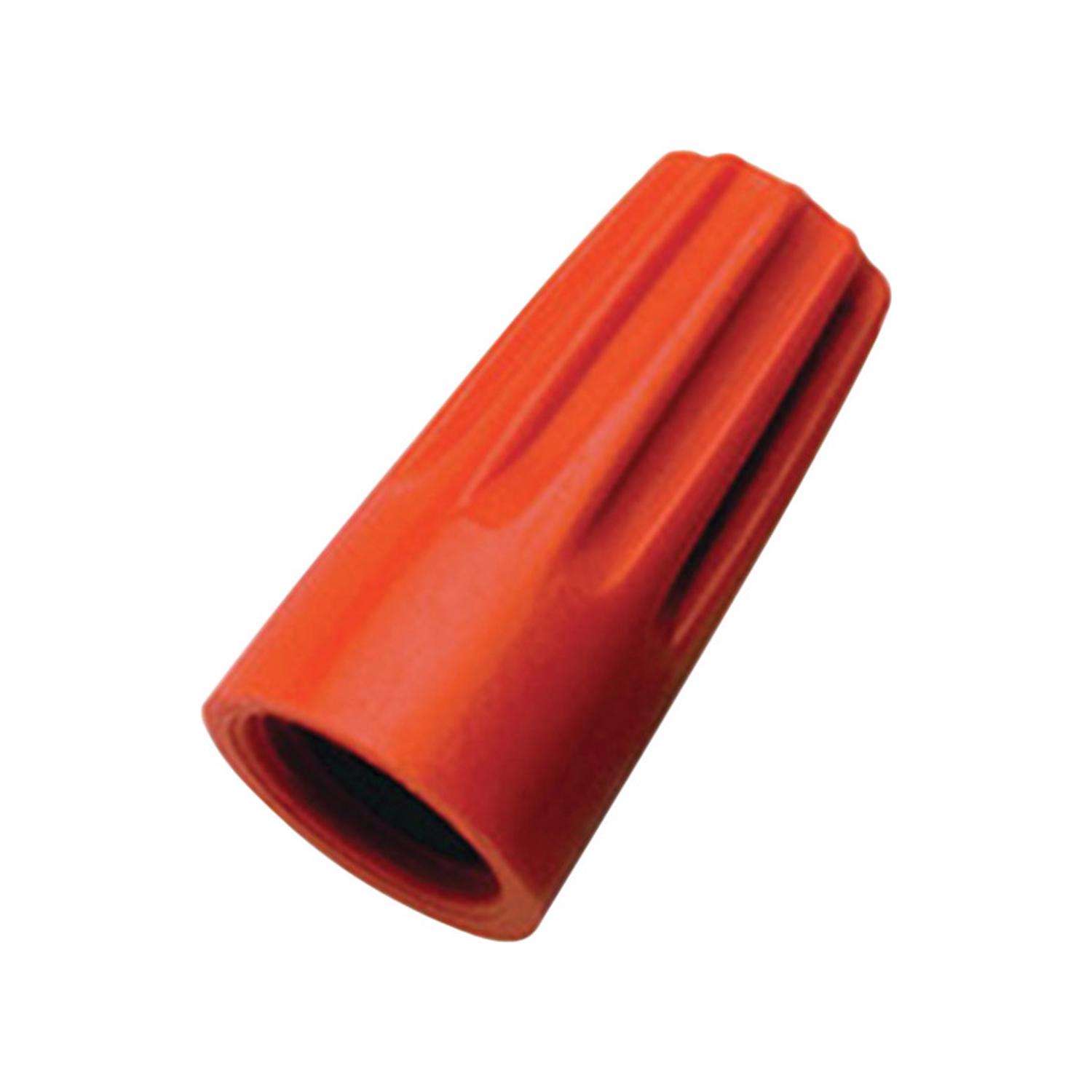

The IDEAL WIRE-NUT wire connectors are the original twist-on wire connectors and feature a positive-grip design for easy installation. Five color-coded models cover hundreds of wire combinations. The fixed square-wire spring provides a secure connection that won't relax over time.
- Standard twist-on wire connector to join and insulate 2 or more wires
- Use on bare copper wire
- Tough UL 94V-2 flame-retardant shell rated at 221F (105 celsius)
- Positive-grip design requires no pre-twisting for fast, easy installation
- Fixed, square-wire springs create their own threads to maintain a secure positive grip that will not relax over time
- Deep skirt helps protect against flashover
- 600-Volt maximum voltage
- Minimum wire capacity of one #18 wire and one #20 wires
- Maximum wire capacity of two #14 wires
- Reusable for easy circuit changes and additions
Specifications
- Brand Name: Ideal Industries
- Product Type: Wire Connector
- CSA LIsted: Yes
- Color: Orange
- Number in Package: 100 pack
- Packaging Type: Bagged
- Brand Name: Ideal Industries
- UL Listed: Yes
- Wire type: Insulated Wire
- Click here to see the Safety Data Sheets for this product.
