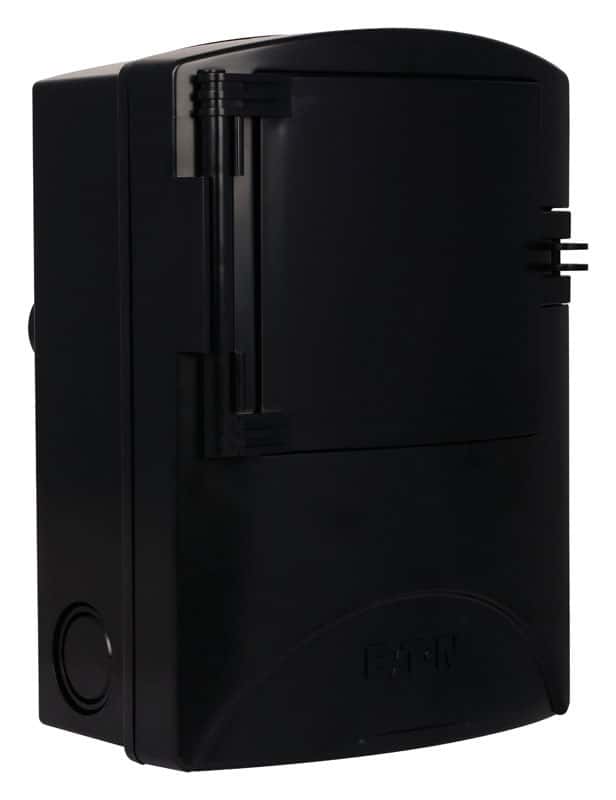

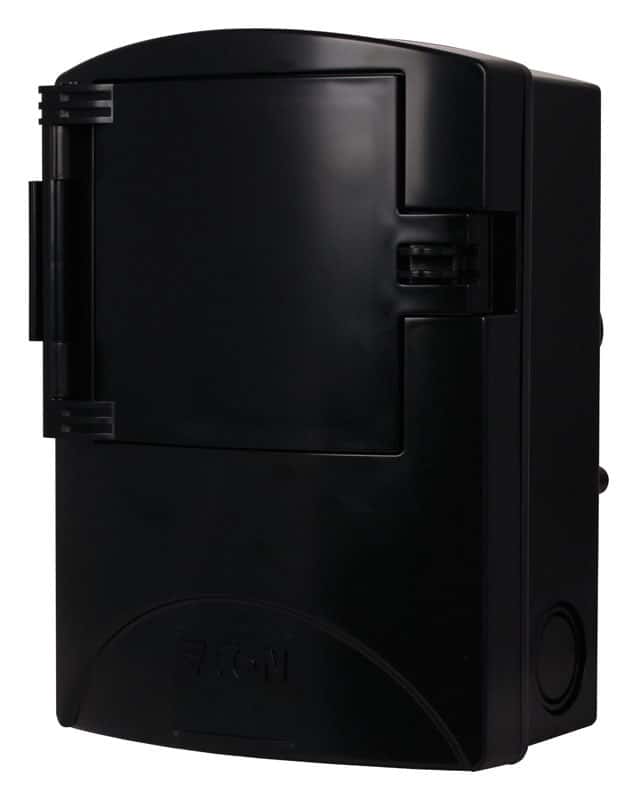

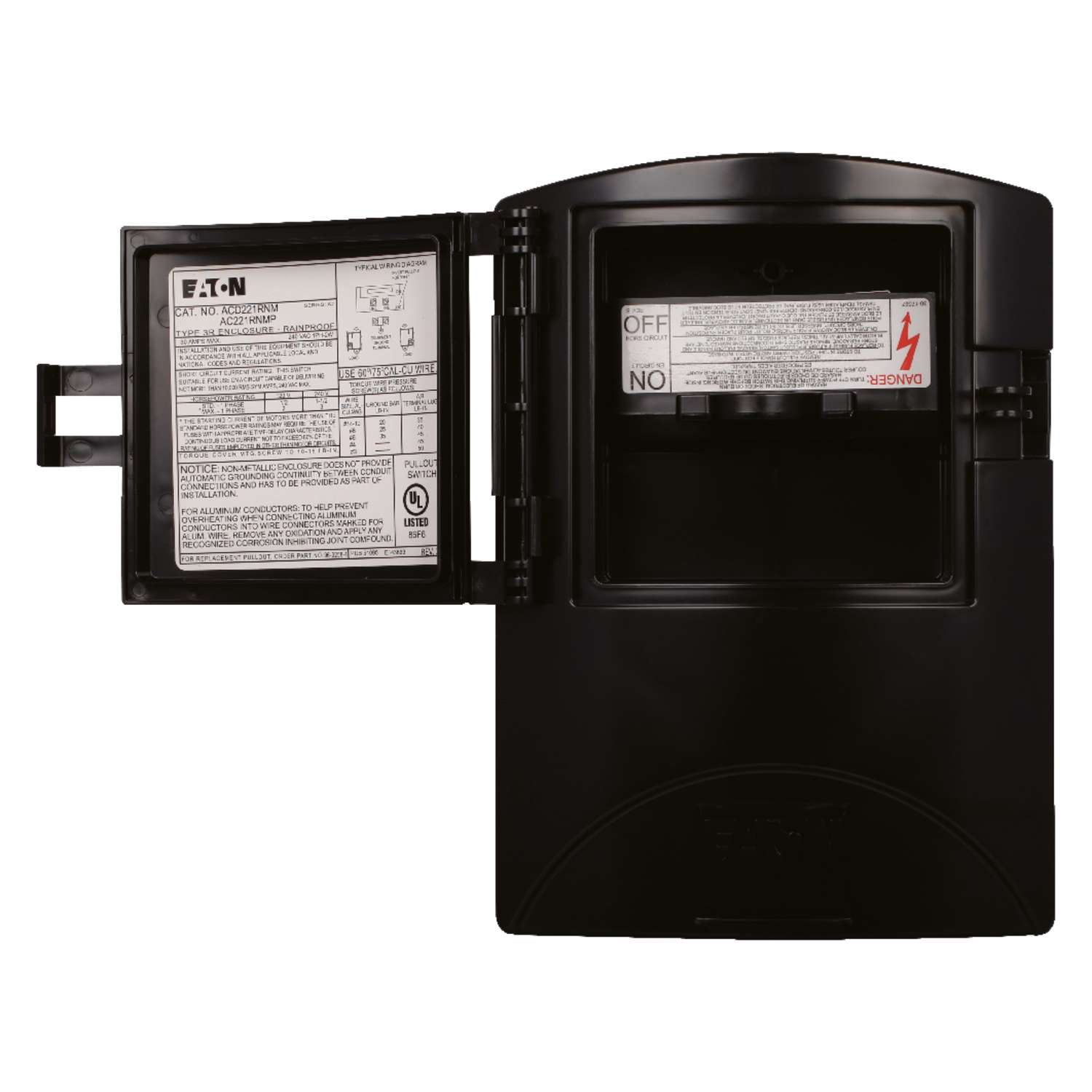

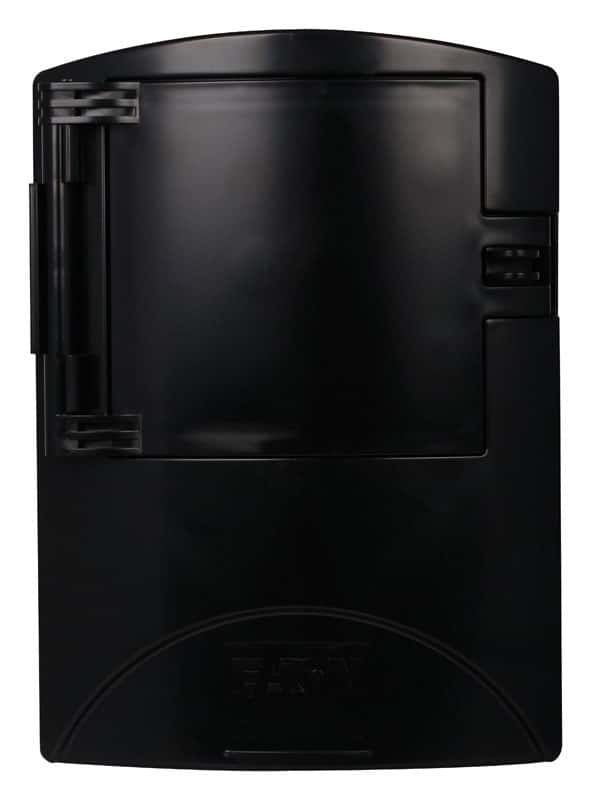

Eaton 30 amps Fusible 2-Pole AC Disconnect
Shop all Eaton
Item # 3003290
| Mfr # AC221RNMP
Roll over image to zoom
Image gallery
Product images
Roll over image to zoom
Product images
Product images
Price
$43.99
Pickup
Delivery
From:
Returns
Free returns on most items within 30 days.
Product Overview
Single phase, 2 pole, 2 wire, 240 volt AC, non-metallic enclosure. Rated 1-1/2 hp at 120 volt, 3 HP at 240 volt with time delay fuses (uses class h cartridge fuses, not included). For top and bottom entry and exit, with provision for type H conduit hub. Heavy duty, high strength, rugged polymer enclosure with UV resistant features. 10000 amp RMS symmetrical interrupting rating. Suitable for use as service entrance equipment with ground bar.
- 30 amp Fused
- Uses Cartridge Fuses
- Nema 3R Outdoor Non-metalic
Specifications
- Brand Name: Eaton
- Product Type: AC Disconnect
- Amps: 30 ampere
- CSA LIsted: No
- Circuit Protection Type: Fusible
- Depth: 4.5 inch
- Height: 10.5 inch
- Mounting Type: Surface Mount
- Number of Poles: 2-Pole
- Packaging Type: BOXED
- Product Series: Type BR
- Brand Name: Eaton
- UL Listed: Yes
- Volts: 240 volt
- Width: 5.625 inch
- Indoor or Outdoor: Outdoor
- Click here to see the Safety Data Sheets for this product.
