Product Overview

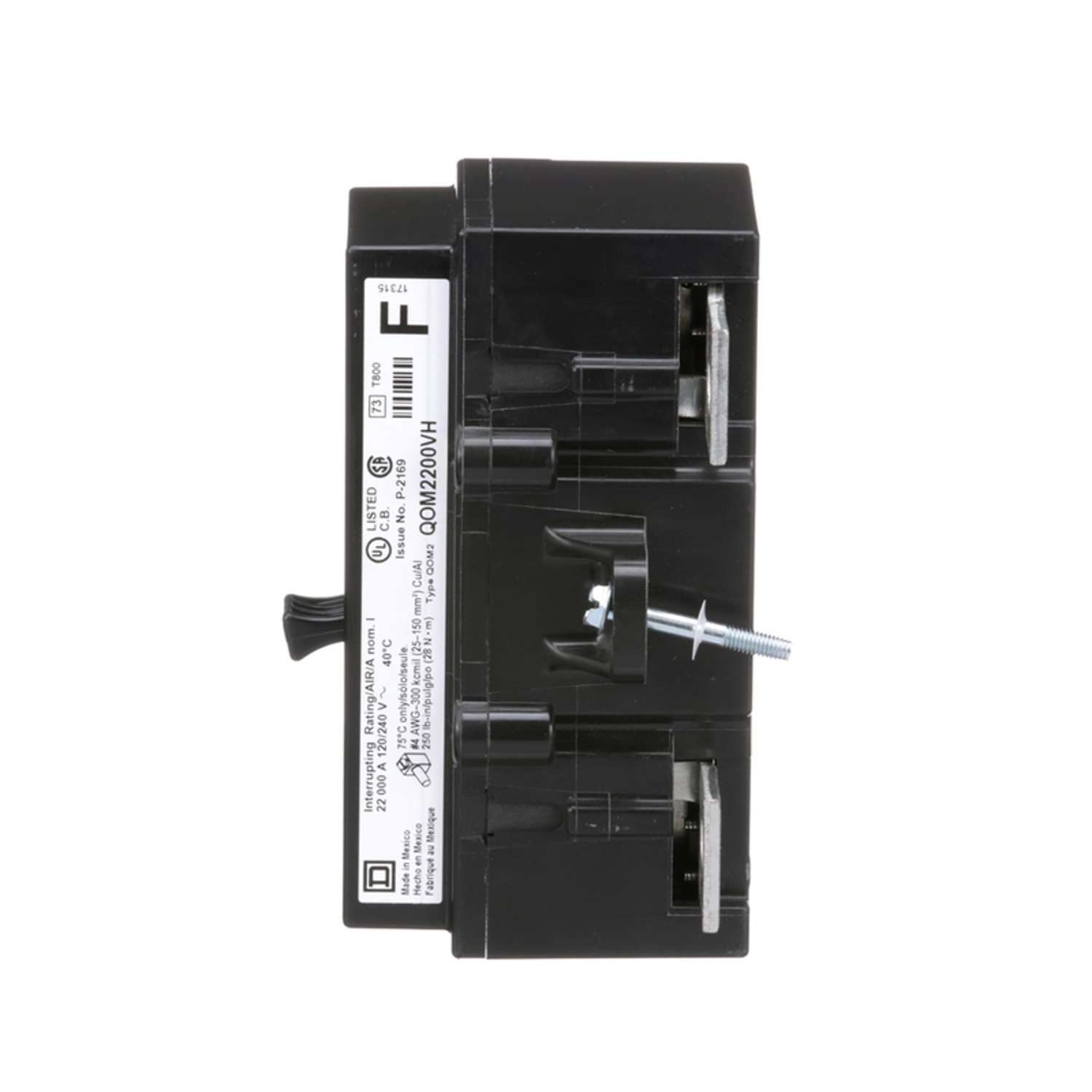

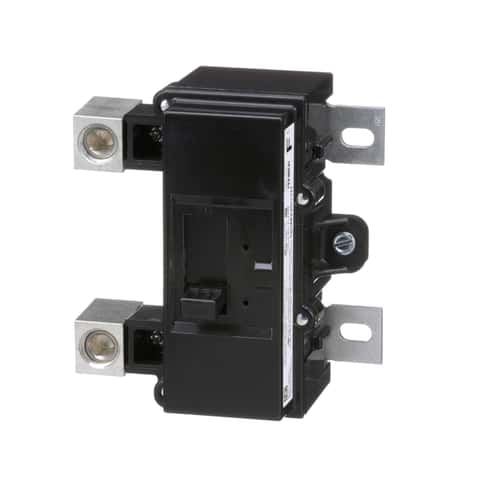

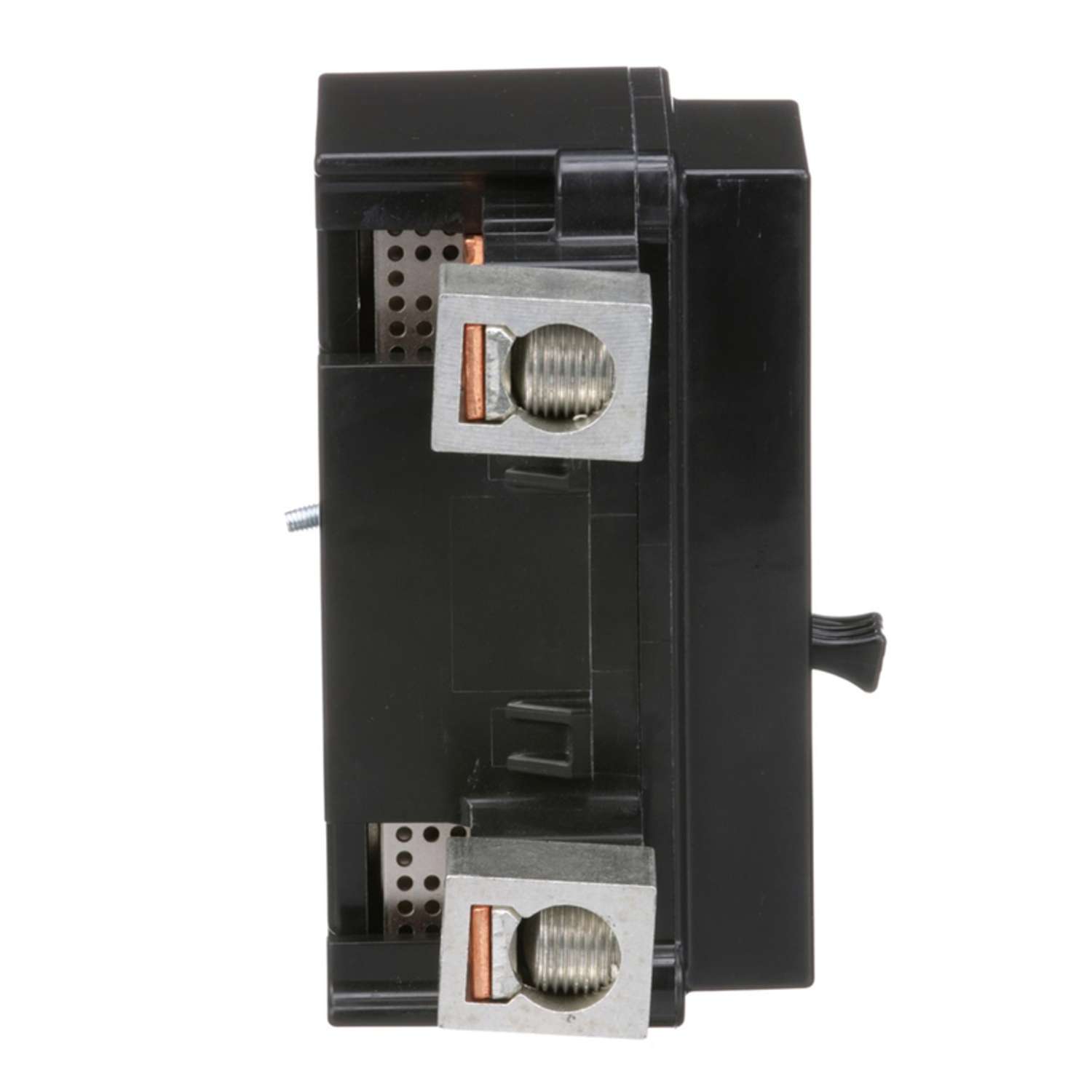

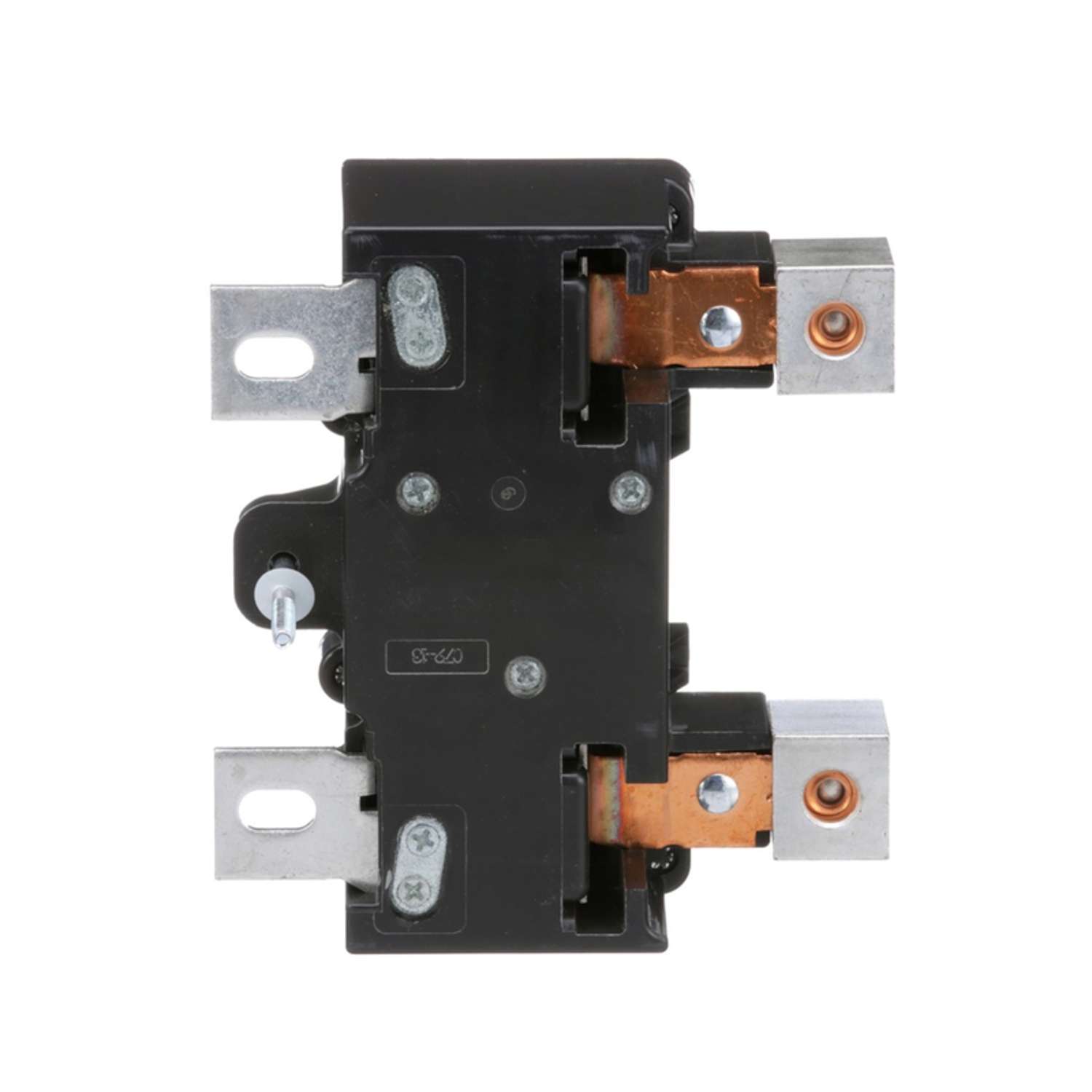

Protect a breaker panel in a load center with this square D by schneider electric QOM2, frame size 200 Amp double-pole main breaker. Used for overload and short circuit protection of your electrical system, this breaker is compatible with square D QO and Homeline load centers, CSED devices and NQOD panel boards rated for 200 - 225 Amps. to ensure safety, it is both UL listed and ANSI certified. The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 22,000 Air.
  • 22 KA 120/240 V AC 50/60 Hz interrupt rating
  • AWG 4 300 kcmil aluminum/copper wire
  • 53.10lbf.in (6N.m) 0.010.10in (465mm) AWG 12 AWG 2/0) tightening torque

Specifications

  • Brand Name: Square D
  • Product Type: Circuit Breaker
  • Amps: 200 ampere
  • CSA LIsted: Yes
  • Circuit Protection Type: Standard
  • Depth: 5.07 inch
  • Height: 5.6 inch
  • Mounting Type: Bolt-On
  • Number of Poles: 2-Pole
  • Packaging Type: BOXED
  • Product Series: QO
  • Brand Name: Square D
  • Volts: 120/240 volt
  • Width: 3.6 inch
  • Indoor or Outdoor: INDOOR
  • Click here to see the Safety Data Sheets for this product.
