Product Overview

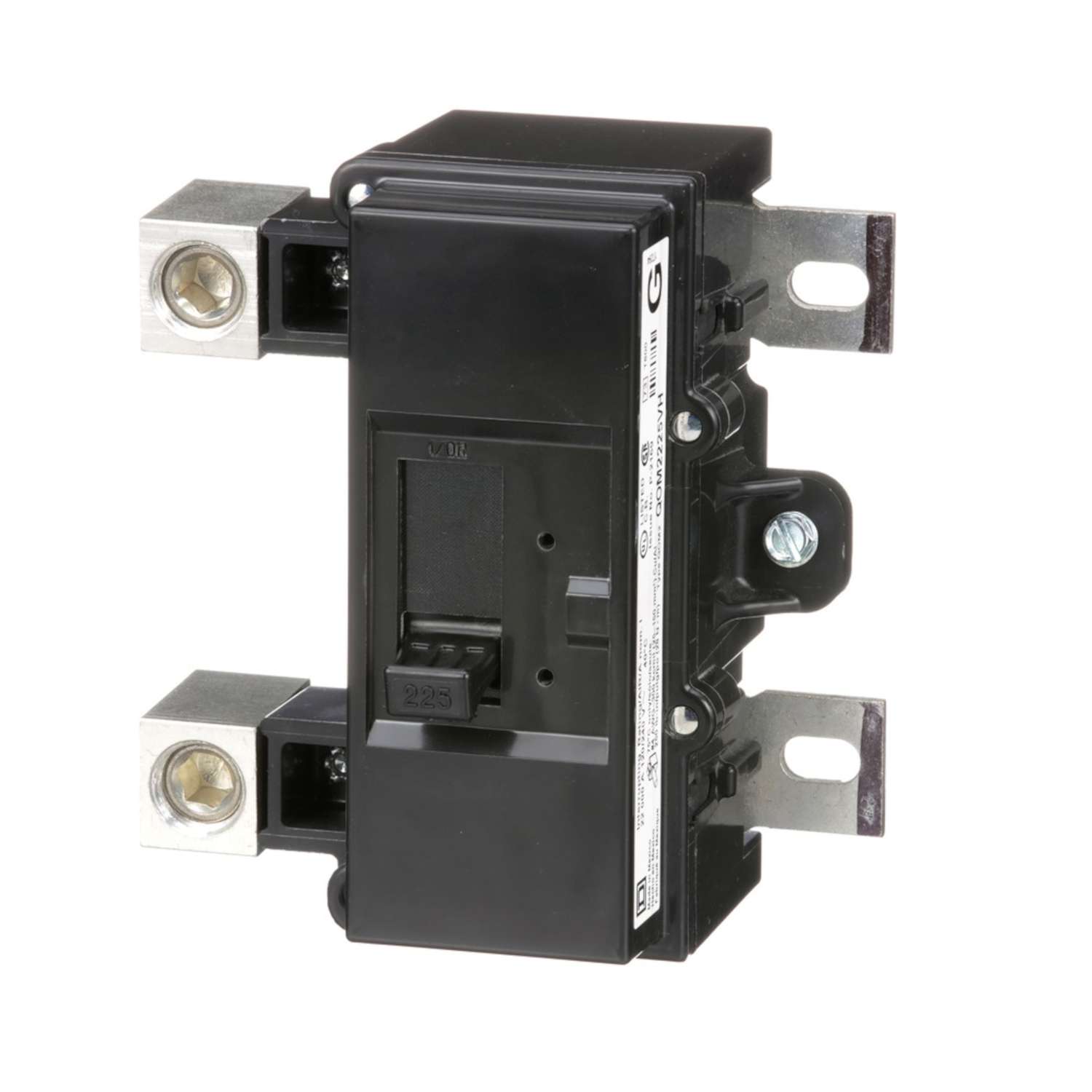

Protect a breaker panel in a load center with this Square D by Schneider Electric QOM2 frame size 225 Amp Double-Pole Main Breaker. Used for overload and short-circuit protection of your electrical system, this breaker is compatible with QO and Homeline load centers, CSED devices and NQOD panel boards rated for 225 amps. To ensure safety, it is both UL-listed and ANSI certified. The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 22,000 AIR. QO circuit breakers have features no other manufacturer can offer. They come in many different sizes and can meet the needs of virtually every function in your home or business. These types of quality, industry-exclusive products keep the Square D brand ahead of the competition and are builders and electrical contractors' first choice in electrical protection.
  • 22 KA 120/240 V AC 50/60 Hz interrupt rating
  • AWG 4 300 kcmil aluminum/copper wire
  • 53.10lbf.in (6N.m) 0.010.10in (465mm) AWG 12 AWG 2/0) tightening torque

Specifications

  • Brand Name: Square D
  • Product Type: Circuit Breaker
  • Amps: 225 ampere
  • Breakers Included: Yes
  • CSA LIsted: Yes
  • Circuit Protection Type: Standard
  • Depth: 5.07 inch
  • Height: 5.6 inch
  • Mounting Type: Bolt-On
  • Number of Poles: 2-Pole
  • Packaging Type: BOXED
  • Product Series: QO
  • Brand Name: Square D
  • UL Listed: Yes
  • Volts: 120/240 volt
  • Width: 3.6 inch
  • Indoor or Outdoor: INDOOR
