Product Overview

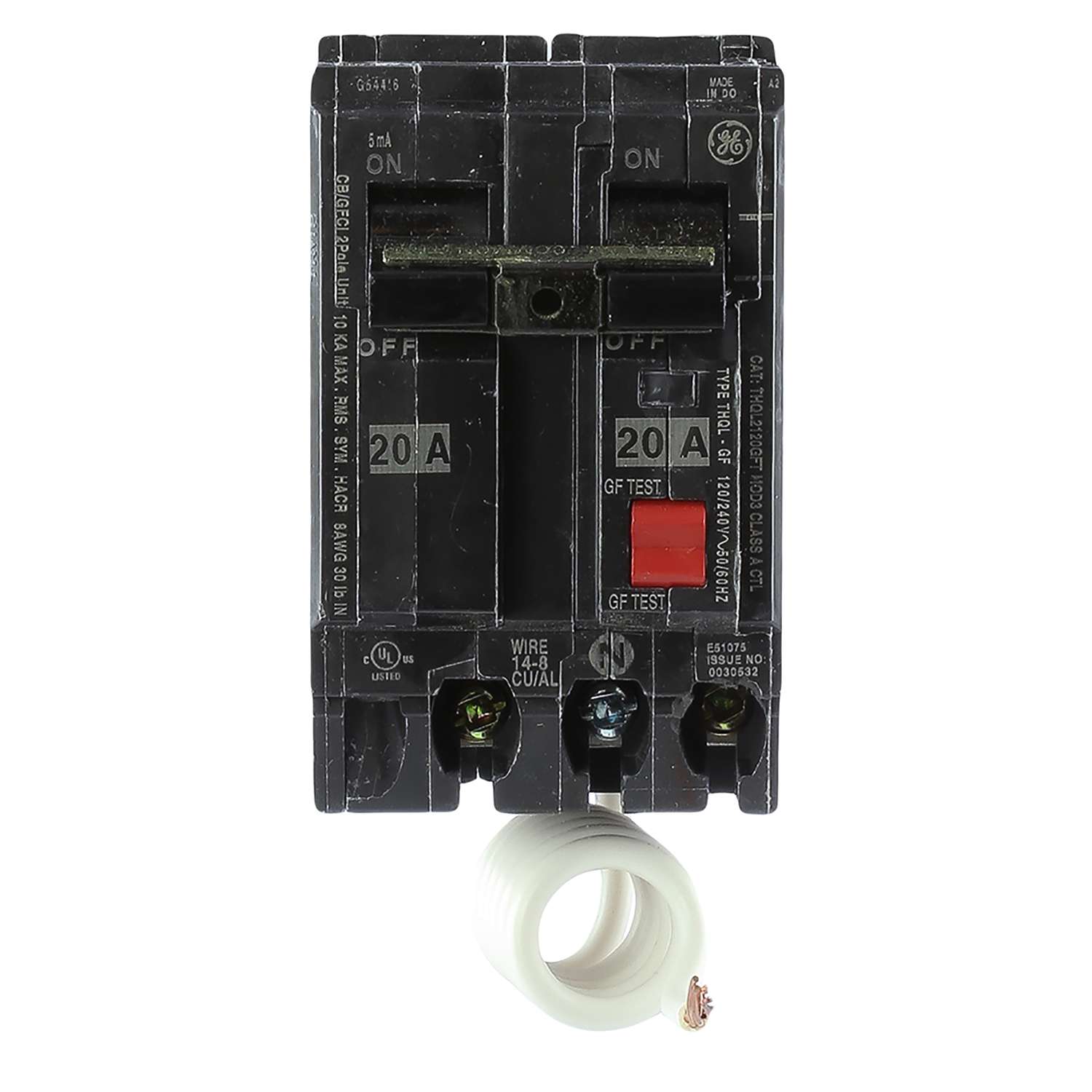

The GE 20 amp Double Pole Ground Fault Circuit Breaker with self-test has a tin plated copper stab to create a reliable, permanent and corrosion resistant connection. The self-test functionality is a UL requirement on all GFCI devices commencing in June 2015. This variant of the GFCI ensures its ground circuitry is functioning properly by automatically running diagnostic testing on a periodic basis. Should a problem be detected, the circuit breaker will trip and will need to be replaced.
  • Unit provides protection against overloads, short circuits and ground faults
  • Detects very low levels of electrical current leakage (ground faults) and acts quickly to shut off power, preventing serious shock
  • Wire range is 14-8 AWG CU/12-8 AWG AL
  • UL listed

Specifications

  • Brand Name: ABB
  • Product Type: Circuit Breaker w/Self Test
  • Amps: 20 ampere
  • Breakers Included: Yes
  • CSA LIsted: No
  • Circuit Protection Type: Ground Fault
  • Depth: 2.4 inch
  • Height: 3.3 inch
  • Mounting Type: Plug-In
  • Number of Poles: 2-Pole
  • Packaging Type: Carded
  • Brand Name: ABB
  • UL Listed: Yes
  • Volts: 120/240 volt
  • Width: 2 inch
  • Indoor or Outdoor: INDOOR
  • Click here to see the Safety Data Sheets for this product.
