Product Overview

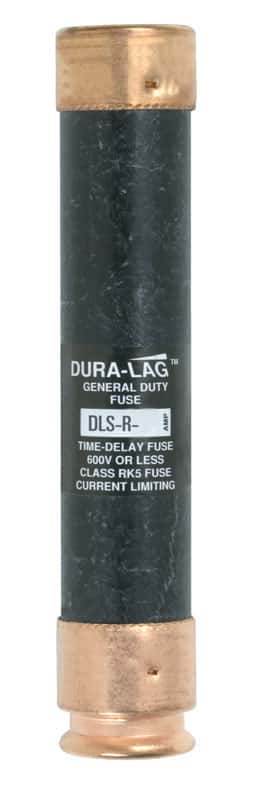

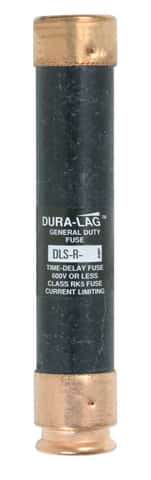

These new fuse service kits are filled with the most popular fuse types and sizes for the most common applications, choose from midget, class CC or class RK5.
  • Class RK5 dual element fuse-edison
  • 10 second time delay
  • Provides motor overload, ground fault and short circuit protection
  • The time delay feature makes it possible to use fuse amp ratings which are much smaller than those of non-time delay fuses
  • Considerable cost savings occur by permitting the use of smaller size switches, panels and fuses themselves
  • Gives motor running back-up protection to motors without extra costs
  • Helps protect motors against burnout from 1 ph on 3 ph systems
  • Current limiting provides component short circuit protection
  • For all general purpose applications including lighting, heating and other non-inductive loads
  • Tin plated copper brass terminal and zinc plated steel screws

Specifications

  • Brand Name: Bussmann
  • Product Type: Dual Element Time Delay Fuse
  • Application: General Purpose
  • Amps: 15 ampere
  • CSA LIsted: Yes
  • Application: General Purpose
  • Endcap Construction: Copper
  • Individual product diameter: 13/16 inch
  • Individual product length: 5 inch
  • Number in Package: 1 Each
  • Packaging Type: BOXED
  • Brand Name: Bussmann
  • Tamper Proof: No
  • Tube Construction: Copper
  • UL Listed: Yes
  • Volts: 600 volt
