Product Overview

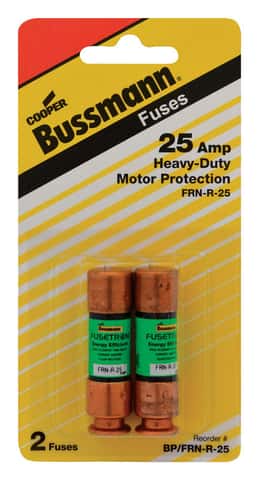

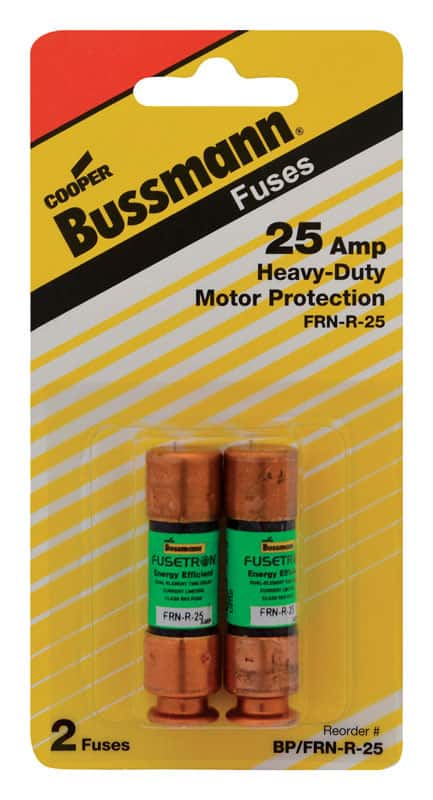

The Cooper Bussmann FRN series 25 ampere brass fuse cartridges are typically seen in power panel boards, motor control centers, combination starters and machinery disconnects. These dual-element, time-delay, class RK5, current-limiting fuse cartridges have a minimum 10-second at 500 percent design. These fuse cartridges have fiberglass tubes and are UL- and CSA listed for safety.
  • Helps protect motors against burnout from overloads and single phasing on three phase systems
  • Will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of ten seconds
  • 250 volt maximum
  • 25 amp
  • 2 count
  • The cartridge fuses are 23% more energy efficient and offer the best time-delay performance. Their dual-element feature allows closer sizing to load for superior protection of motors and transformers. These Class RK5 with a 200kA interrupting rating

Specifications

  • Brand Name: Bussmann
  • Product Type: Dual Element Time Delay Fuse
  • Application: Motor Control Centers
  • Amps: 25 ampere
  • CSA LIsted: Yes
  • Application: Motor Control Centers
  • Endcap Construction: Copper
  • Individual product diameter: 0.56 inch
  • Individual product length: 2 inch
  • Number in Package: 2 pack
  • Packaging Type: Carded
  • Brand Name: Bussmann
  • Tamper Proof: No
  • Tube Construction: Copper
  • UL Listed: Yes
  • Volts: 250 volt
  • Click here to see the Safety Data Sheets for this product.
