Product Overview

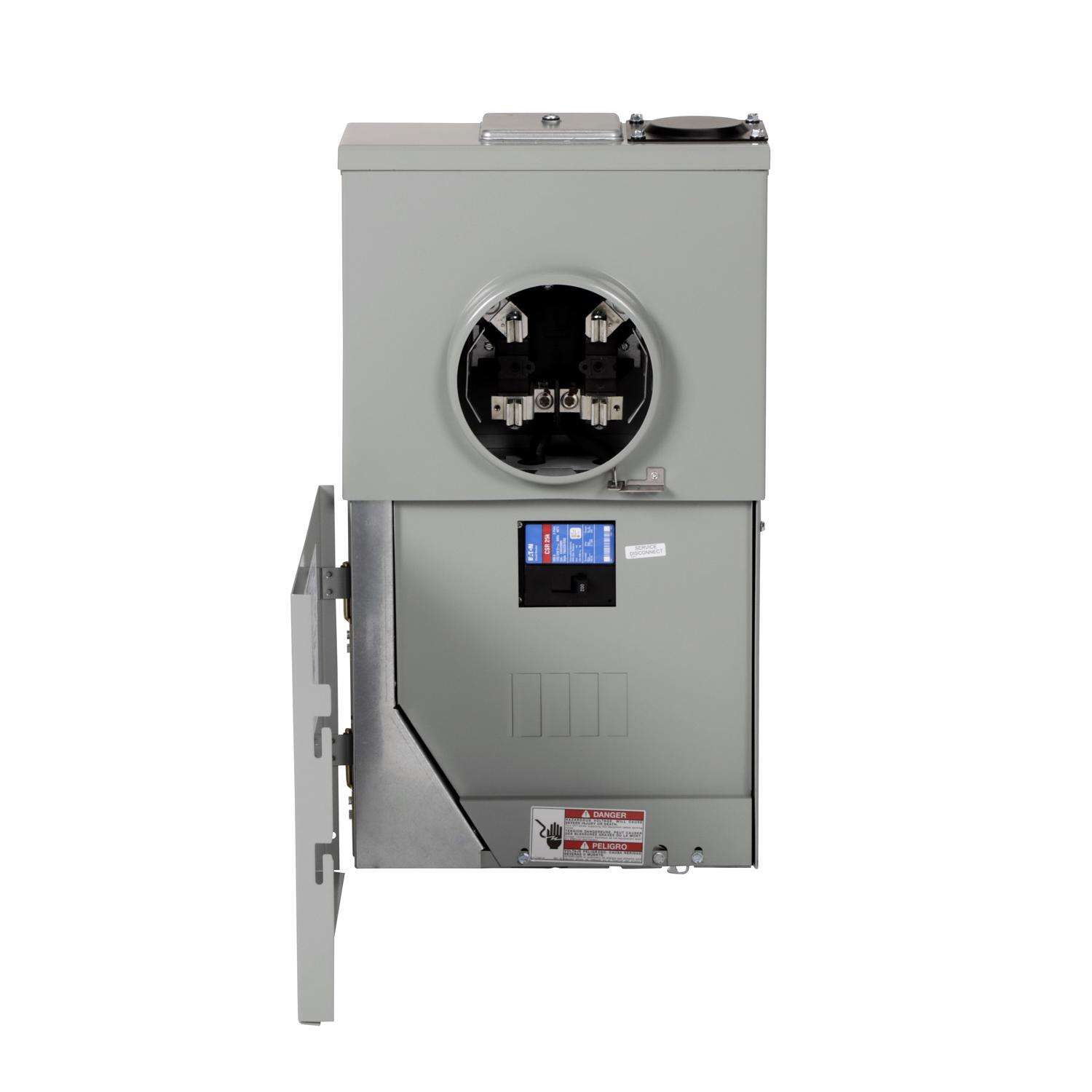

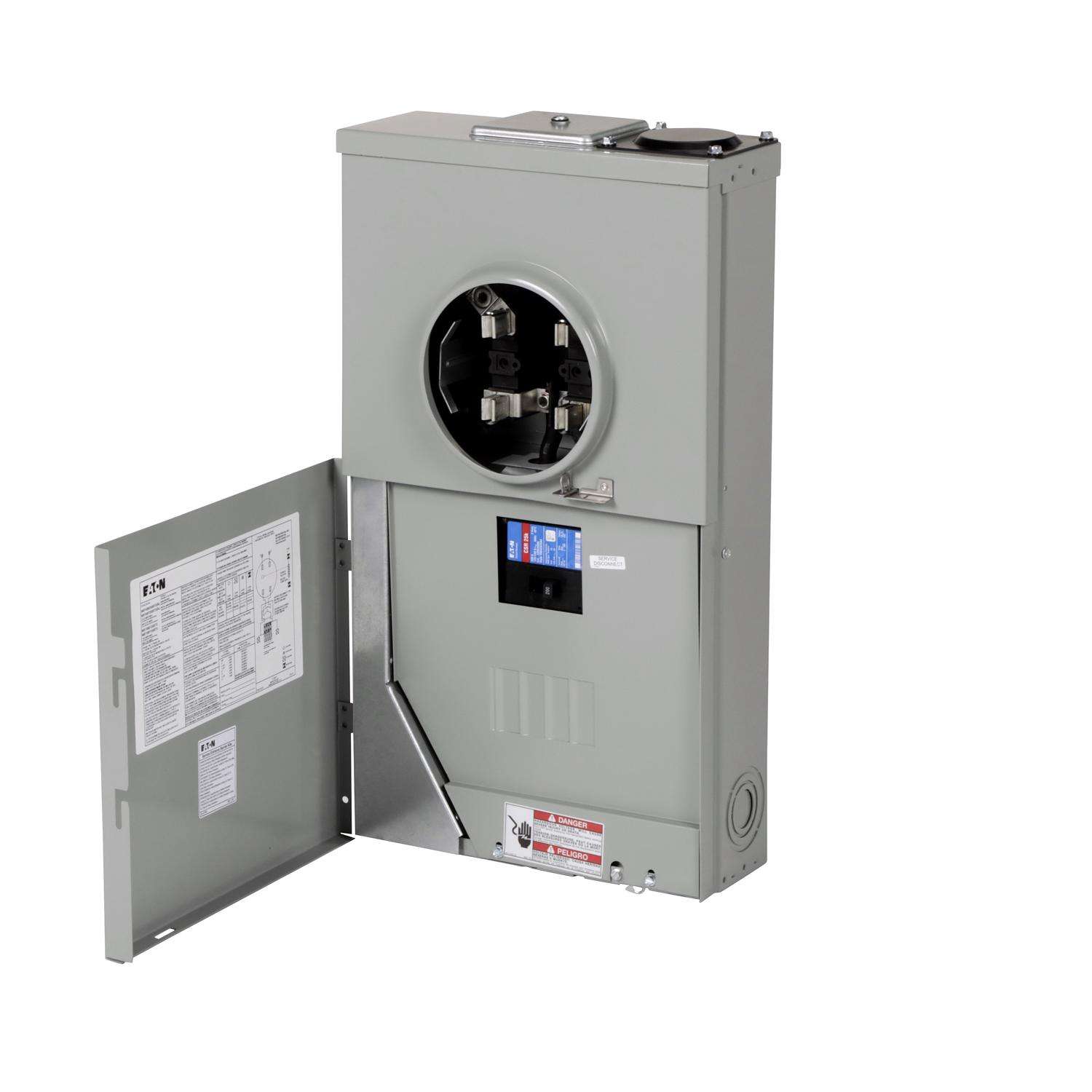

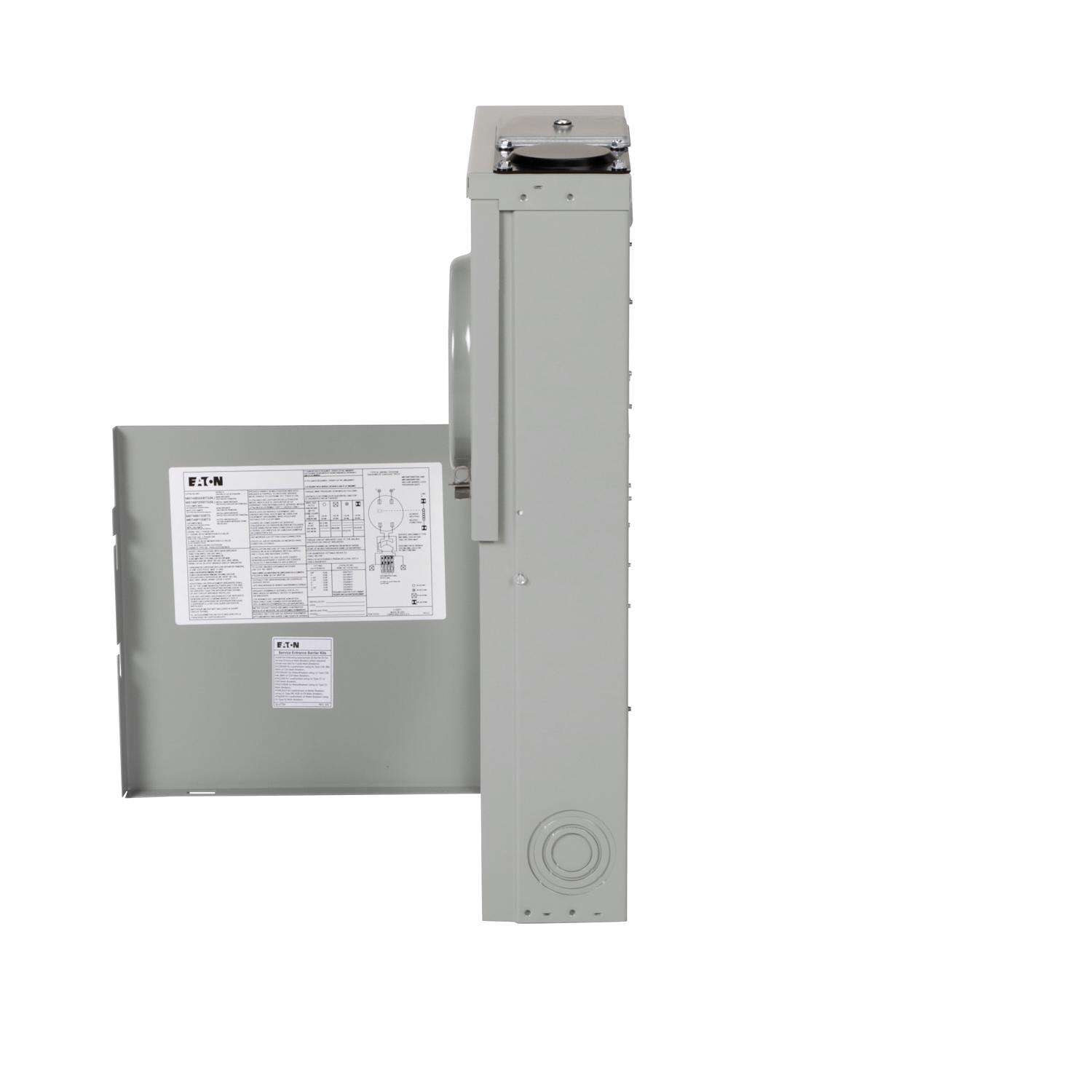

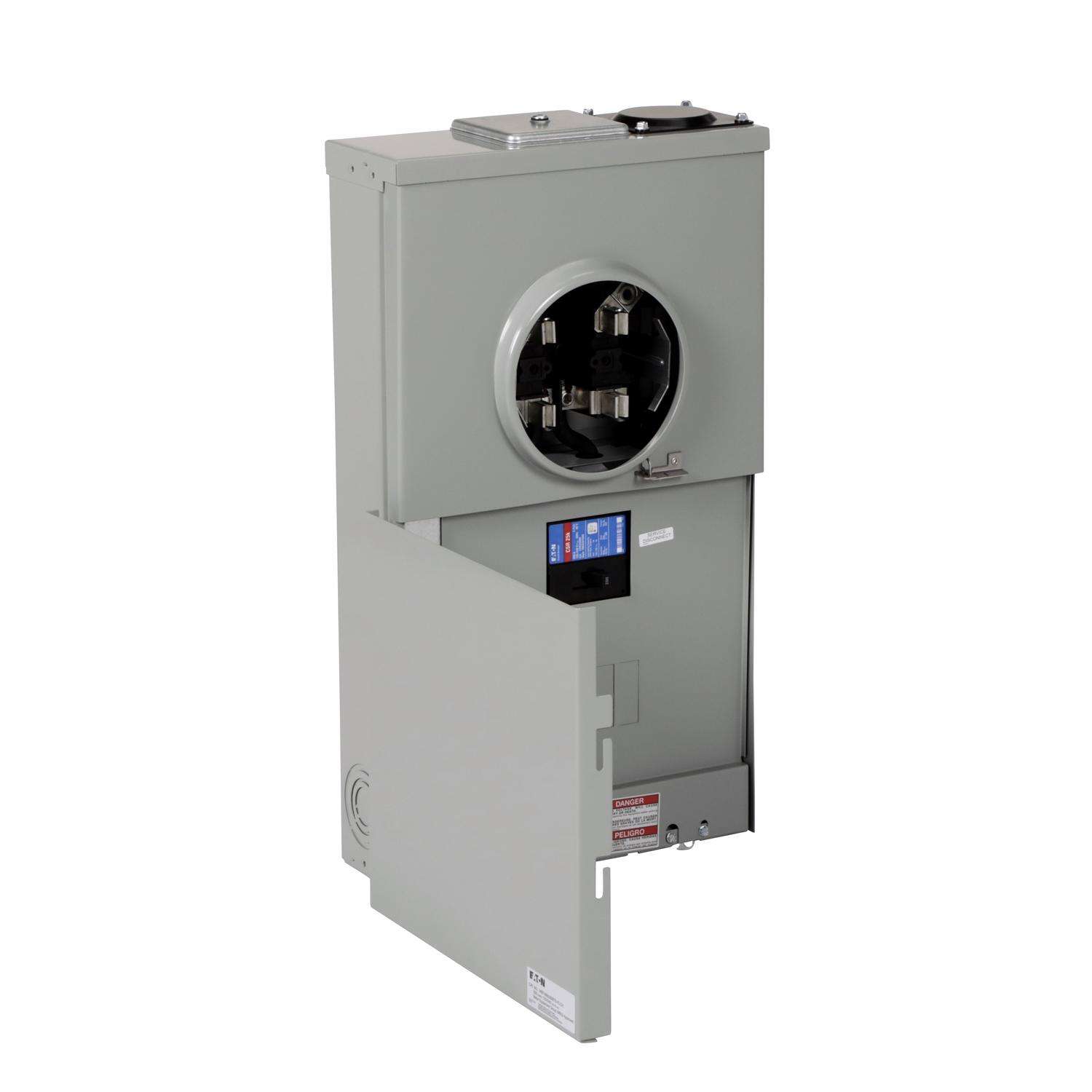

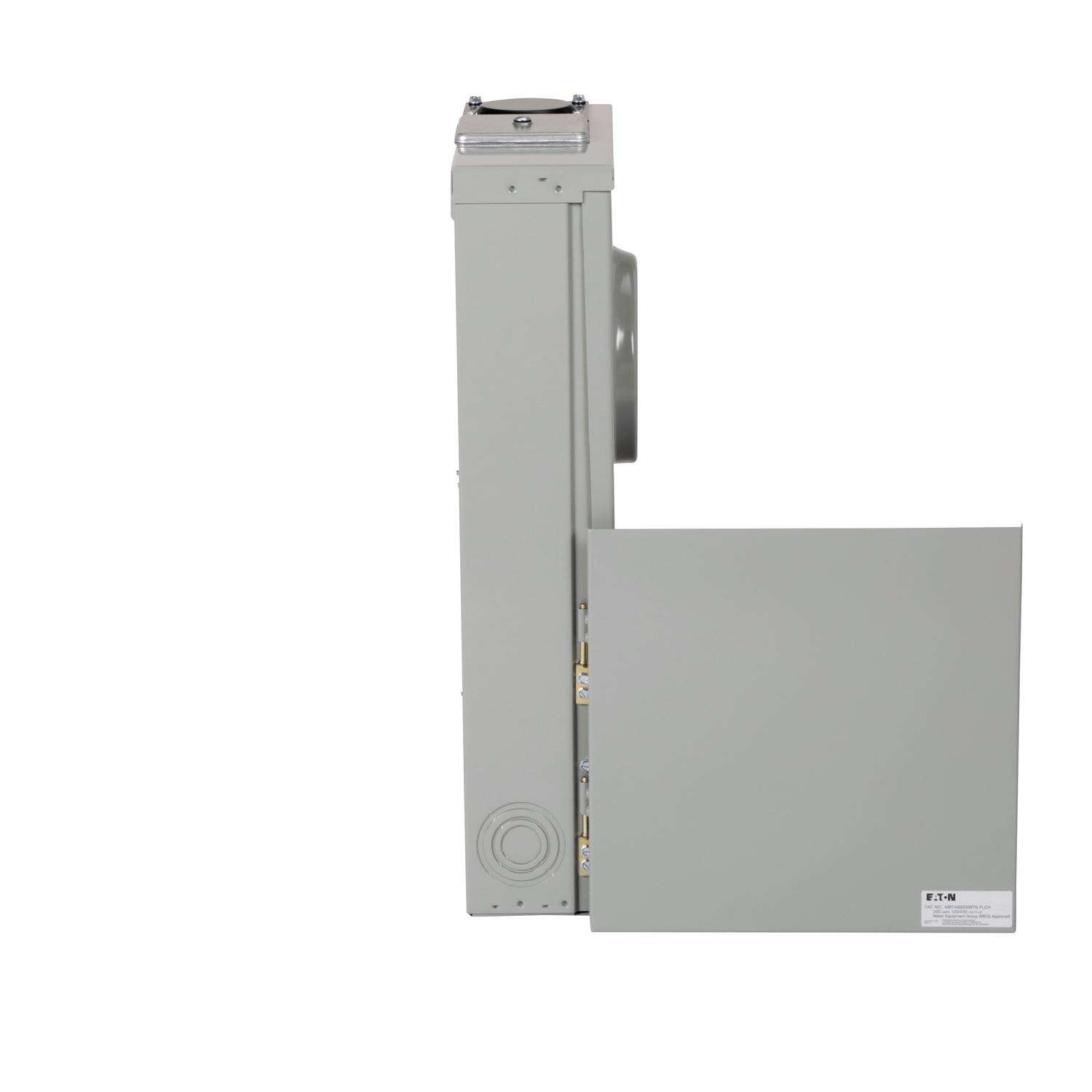

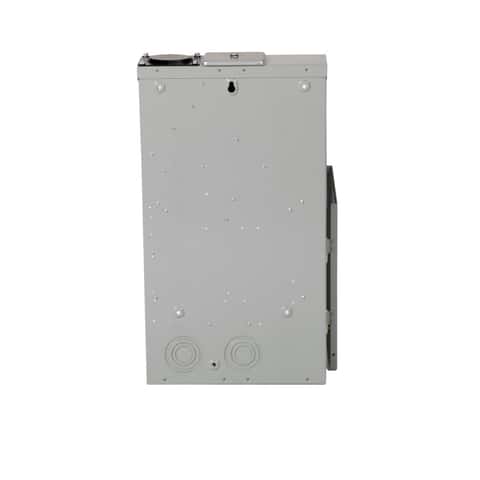

Eaton's residential meter breakers are service entrance equipment systems that consist of a single meter socket and load center or a meter socket and main breaker combined in one enclosure. This unit is commonly referred to as a trailer panel. The meter breakers are constructed to meet the latest NEC wire bending space requirements. The MBT48B200BTS is a 200 Amp, 4 spaces, 8 circuit outdoor panel.
  • Utilities electrical watthour meters in residential and commercial buildings
  • A units and designs such as ring, ring less, bypass and more
  • Ringless type meter socket - trailer panel
  • Used with type BR breakers

Specifications

  • Brand Name: Eaton
  • Product Type: Meter Center
  • ANSI Certified: Yes
  • Amps: 200 ampere
  • Length: 4.94 inch
  • Mounting Type: Surface Mount
  • Nema Type: 3R
  • Number of Phases: 1
  • Number of Spaces: 4
  • Packaging Type: BOXED
  • Brand Name: Eaton
  • Service Feed Type: Overhead/Underground
  • Socket Type: Ringless
  • UL Listed: Yes
  • Volts: 240 volt
  • Width: 14.44 inch
  • Indoor or Outdoor: Outdoor
