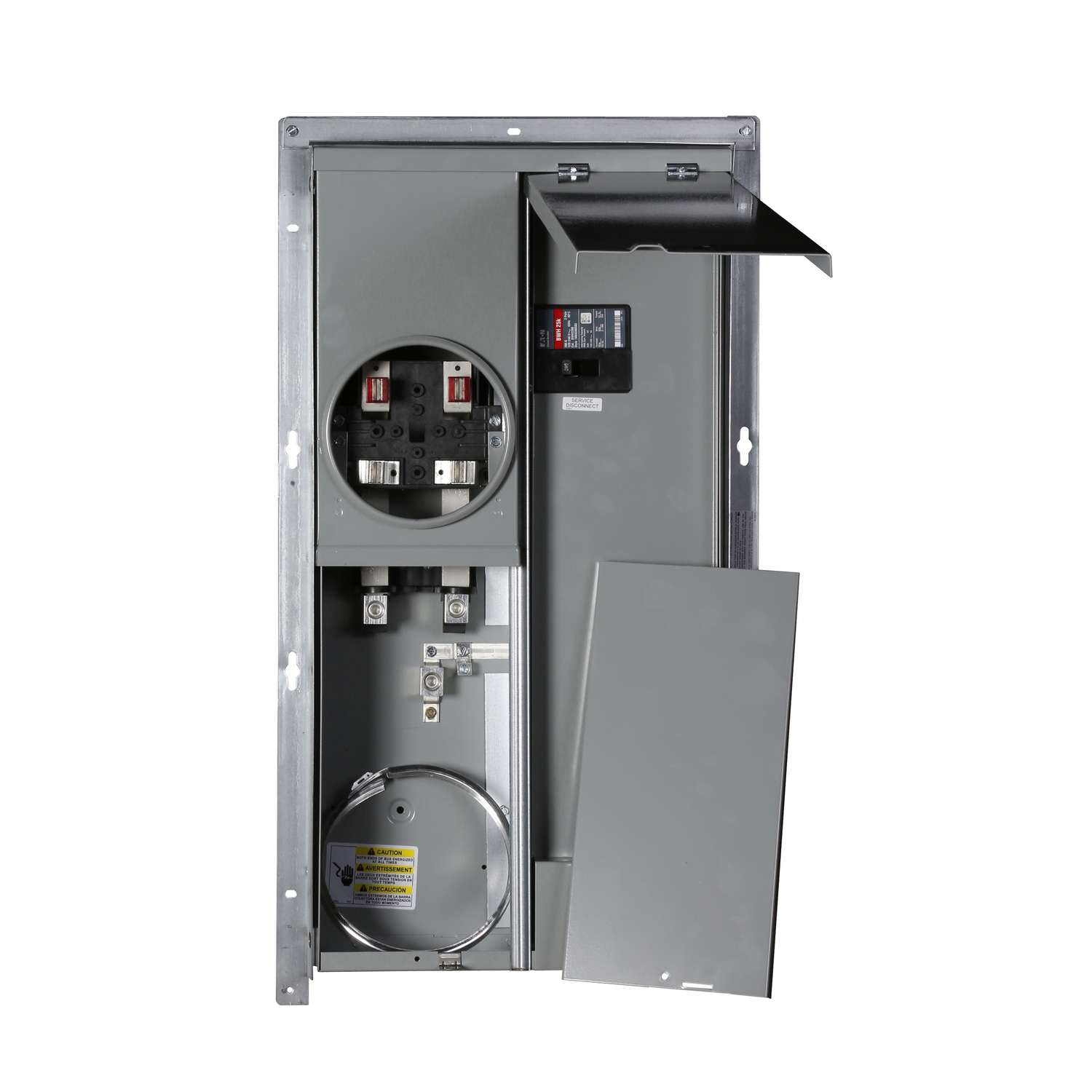

Eaton 200 amps Ring Overhead/Underground Meter Center
Shop all Eaton
Item # 3004495
| Mfr # MBEB200BTF
Roll over image to zoom
Image gallery
Product images
Roll over image to zoom
Product images
Product images
Price
$349.99
Pickup
Delivery
From:
Returns
Free returns on most items within 30 days.
Product Overview
Eaton Type BR meter breaker has an interrupt rating of 10-Kilo-Amps, current rating of 200-Amps and voltage rating of 120/240-Volts. The 1-Phase, 3-Wire meter breaker has overhead/underground feed-thru terminals for connection. This flush mount meter breaker is compatible with 6-AWG-250-KCMIL line, ground conductors. It is NEMA 3R rated for indoor and outdoor applications. It has one socket and four jaws. The meter breaker meets UL and EUSERC standards.
- Utilities electrical watthour meters in residential and commercial buildings
- A units and designs such as ring, ring less, bypass and more
- Check with utility provider if approved before ordering
- Used with type BR breakers
Specifications
- Brand Name: Eaton
- Product Type: Meter Center
- Amps: 200 ampere
- Length: 5.38 inch
- Mounting Type: Flush Mount
- Nema Type: 3R
- Number of Phases: 1
- Packaging Type: BOXED
- Brand Name: Eaton
- Service Feed Type: Overhead/Underground
- Socket Type: Ring
- UL Listed: Yes
- Volts: 240 volt
- Width: 14.44 inch
- Indoor or Outdoor: Outdoor
- Click here to see the Safety Data Sheets for this product.
