Product Overview

All Eaton sockets are rated 600 Vac maximum and either 100 ampere, 200 ampere or 320 ampere continuous. All have a minimum short circuit rating of 10,000 RMS symmetrical ampere (watt hour meter is not included in rating). All single meter sockets are UL labeled and are supplied in surface mounted outdoor enclosures. Each utility determines meter socket requirements per local codes and we offer a variety of designs to meet virtually any local utility specification.

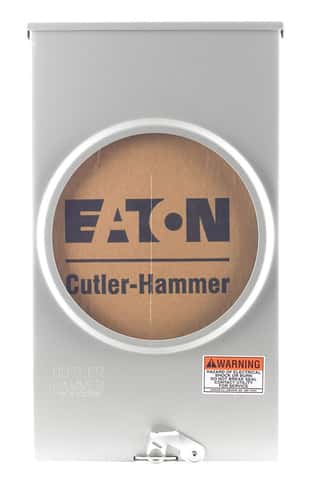

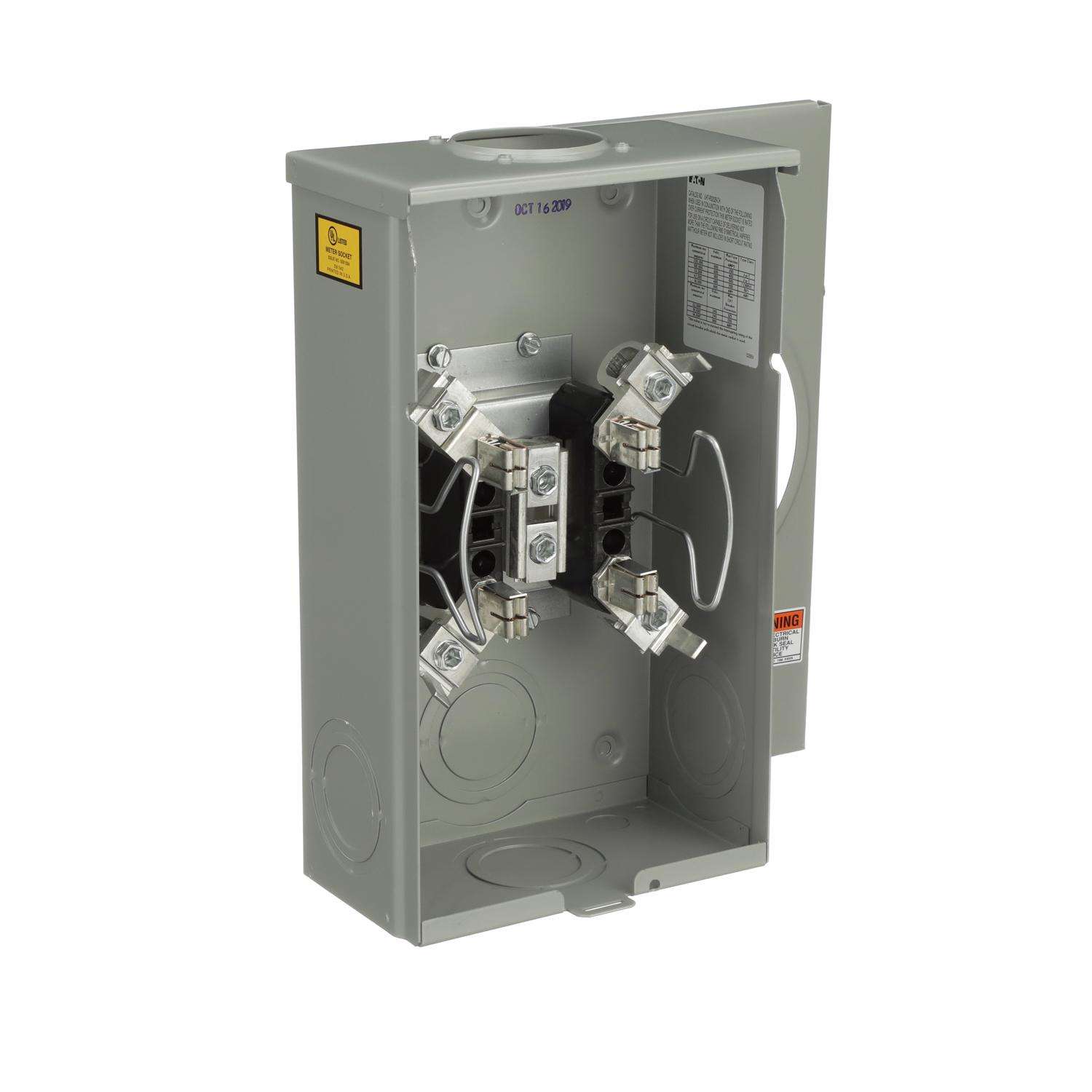

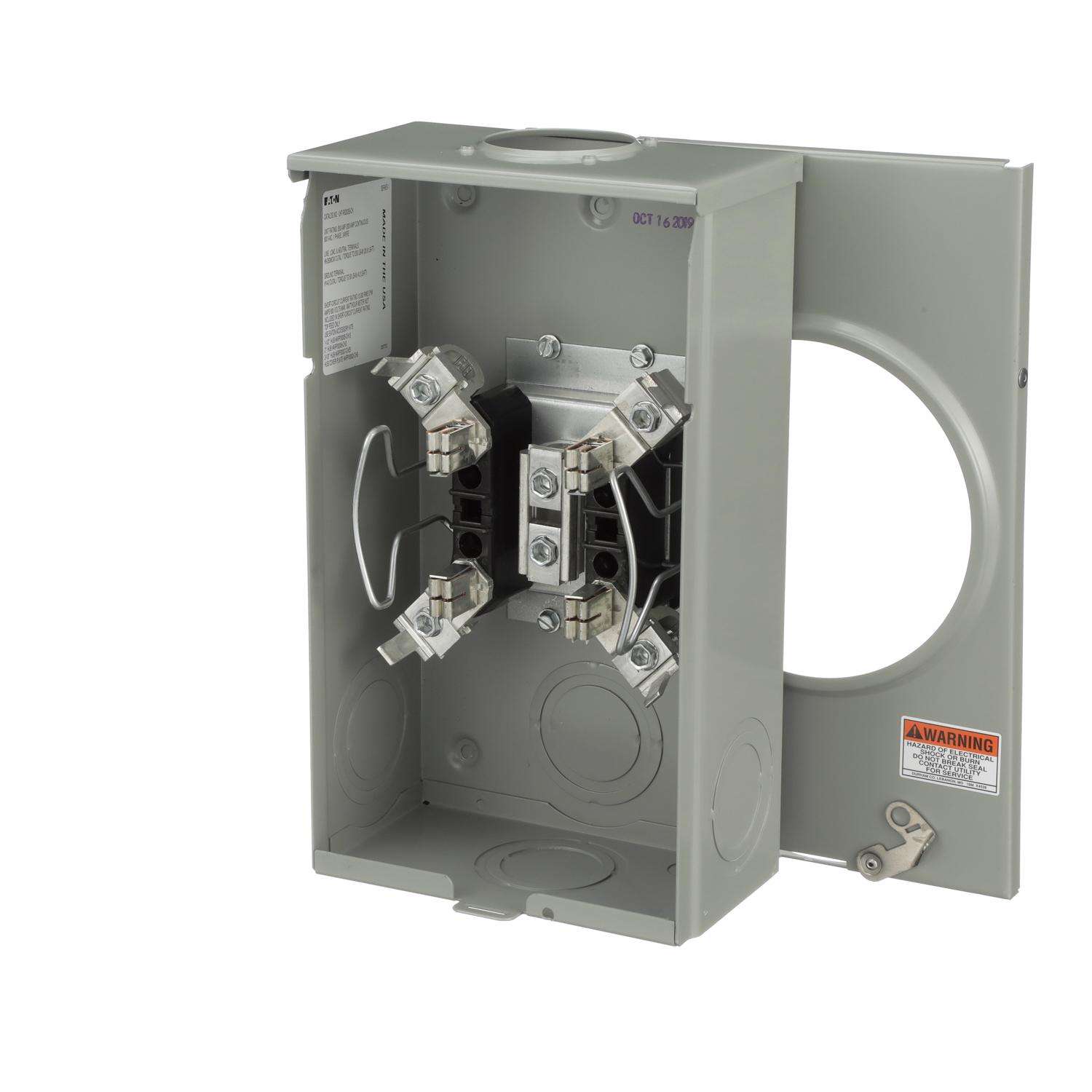

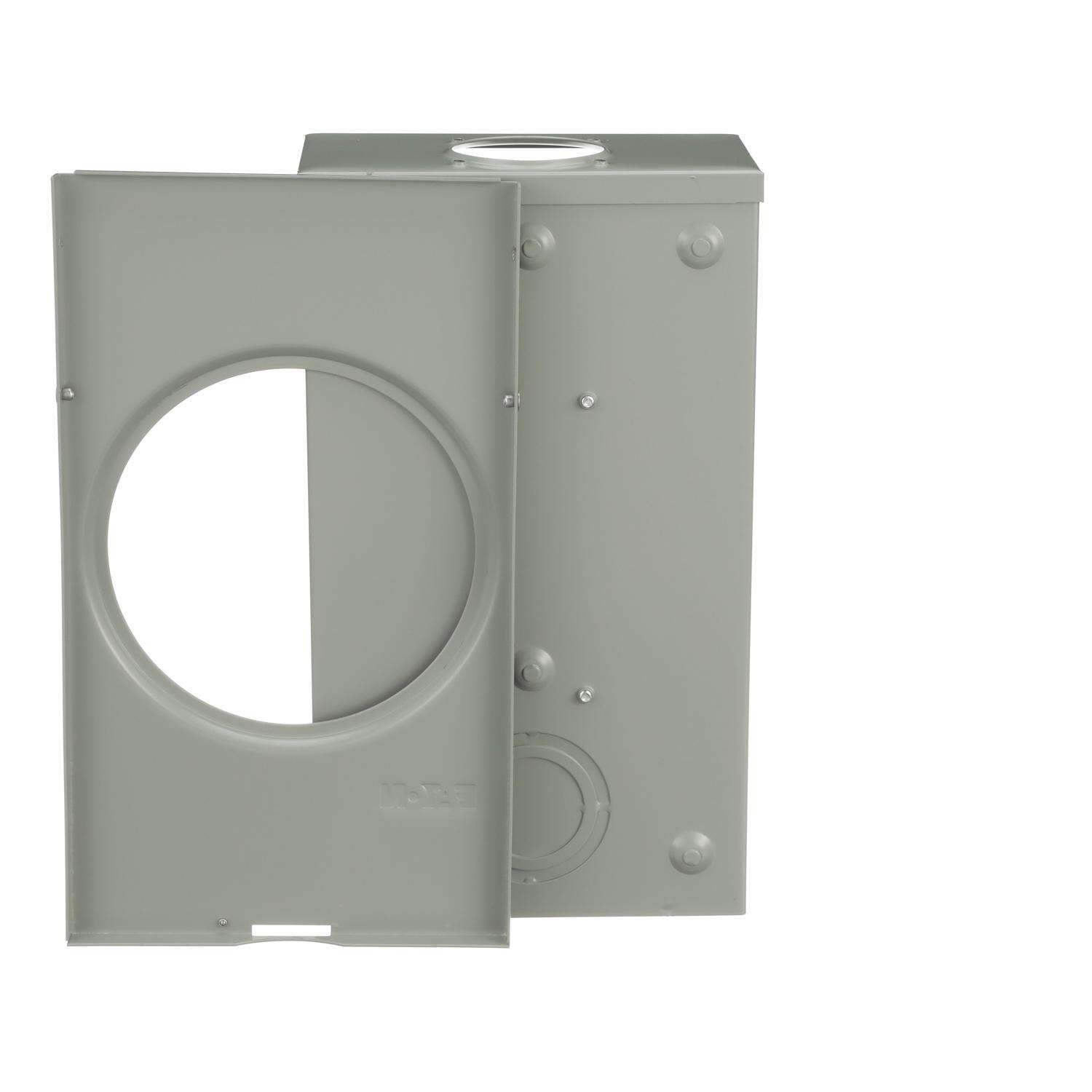

  • What's Included: 200 amp meter socket with cover
  • 200 Amp Meter Socket
  • Horn Bypass
  • Single phase

Specifications

  • What's Included: 200 amp meter socket with cover
  • Brand Name: Eaton
  • Product Type: Meter Socket
  • ANSI Certified: Yes
  • Amps: 200 ampere
  • Breakers Included: No
  • Maximum Amperage: 200 ampere
  • Mounting Type: Surface Mount
  • Nema Type: 3R
  • Number of Phases: 1
  • Packaging Type: BOXED
  • Brand Name: Eaton
  • Service Feed Type: Overhead
  • Socket Type: Ringless
  • UL Listed: Yes
  • Volts: 600 volt
