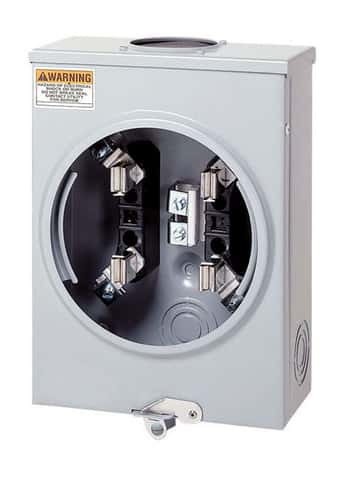

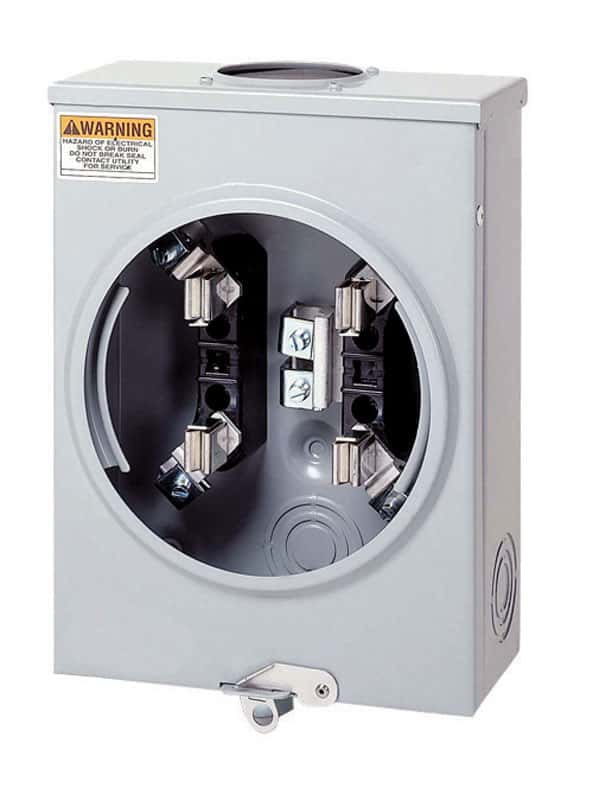

Eaton 100 amps Ring Overhead/Underground Meter Socket
Shop all Eaton
Item # 3195211
| Mfr # URRS101LCH
Roll over image to zoom
Image gallery
Product images
Roll over image to zoom
Product images
Product images
Price
$69.99
Pickup
Delivery
From:
Returns
Free returns on most items within 30 days.
Product Overview
All Eaton sockets are rated 600 VAC maximum and either 100, 200 or 320A continuous. All have a minimum short circuit rating of 10000 RMS symmetrical amperes (watt hour meter is not included in rating). All single meter sockets are UL labeled and are supplied in surface mounted outdoor enclosures. Each utility determines meter socket requirements per local codes and we offer a variety of designs to meet virtually any local utility specification.
- 1-1/4 in bolt-on hub
- Single phase
- Three-wire
Specifications
- Brand Name: Eaton
- Product Type: Meter Socket
- ANSI Certified: Yes
- Amps: 100 ampere
- Breakers Included: No
- Depth: 10.88 inch
- Maximum Amperage: 125 ampere
- Length: 3.5 inch
- Mounting Type: Surface Mount
- Nema Type: 3R
- Number of Phases: 1
- Packaging Type: BOXED
- Brand Name: Eaton
- Service Feed Type: Overhead/Underground
- Socket Type: Ring
- UL Listed: Yes
- Volts: 600 volt
- Width: 8 inch
- Click here to see the Safety Data Sheets for this product.
