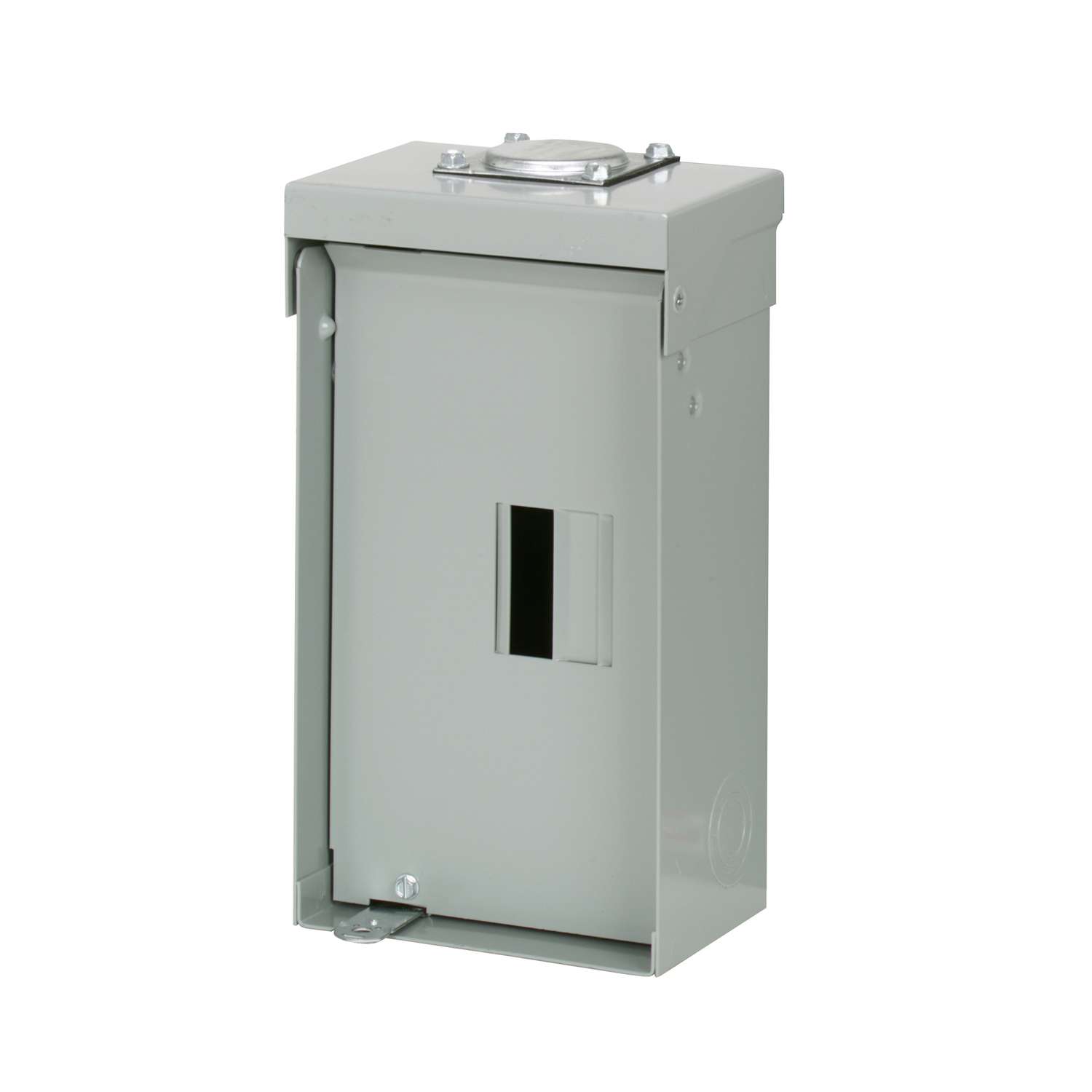

Eaton 125 amps 240 V 2 space 4 circuits Combination Mount Circuit Breaker Panel
Shop all Eaton
Item # 3004452
| Mfr # BR2L125RP
Roll over image to zoom
Image gallery
Product images
Roll over image to zoom
Product images
Product images
Price
$44.99
Pickup
Delivery
From:
Returns
Free returns on most items within 30 days.
Product Overview
Eaton Main lug loadcenter comes with cover, is rated at 120/240-Volt AC and 125-Amps. Interrupt current rating of this loadcenter is 10-Kilo-Amps. This 1-Phase loadcenter has aluminum bus and NEMA 3R outdoor enclosure for longer endurance. It measures 3.88-Inch x 14.31-Inch x 23-Inch. Type BR 4-Circuit loadcenter incorporating 3-Wire wiring configuration, accepts copper/aluminum wires of size 14 - 1/0-AWG. It has bottom/top feed location and supports surface mounting. Loadcenter featuring insulated/bondable split neutral type, withstands temperature rating of 60 to 75 deg C. Loadcenter is UL listed.
- Straight-in wiring saves labor and material
- Maximum variety of concentric knockouts, at rear and sides
- Tangential center knockout easier installation for conduit applications
- Used with type BR breakers
Specifications
- Brand Name: Eaton
- Product Type: Circuit Breaker Panel
- Amps: 125 ampere
- Depth: 3.88 inch
- Height: 23 inch
- Maximum Number of Circuits: 4 circuits
- Mounting Type: Combination Mount
- Number of Spaces: 2 space
- Packaging Type: BOXED
- Brand Name: Eaton
- UL Listed: Yes
- Volts: 240 volt
- Width: 14.31 inch
- Indoor or Outdoor: Outdoor
- Click here to see the Safety Data Sheets for this product.
