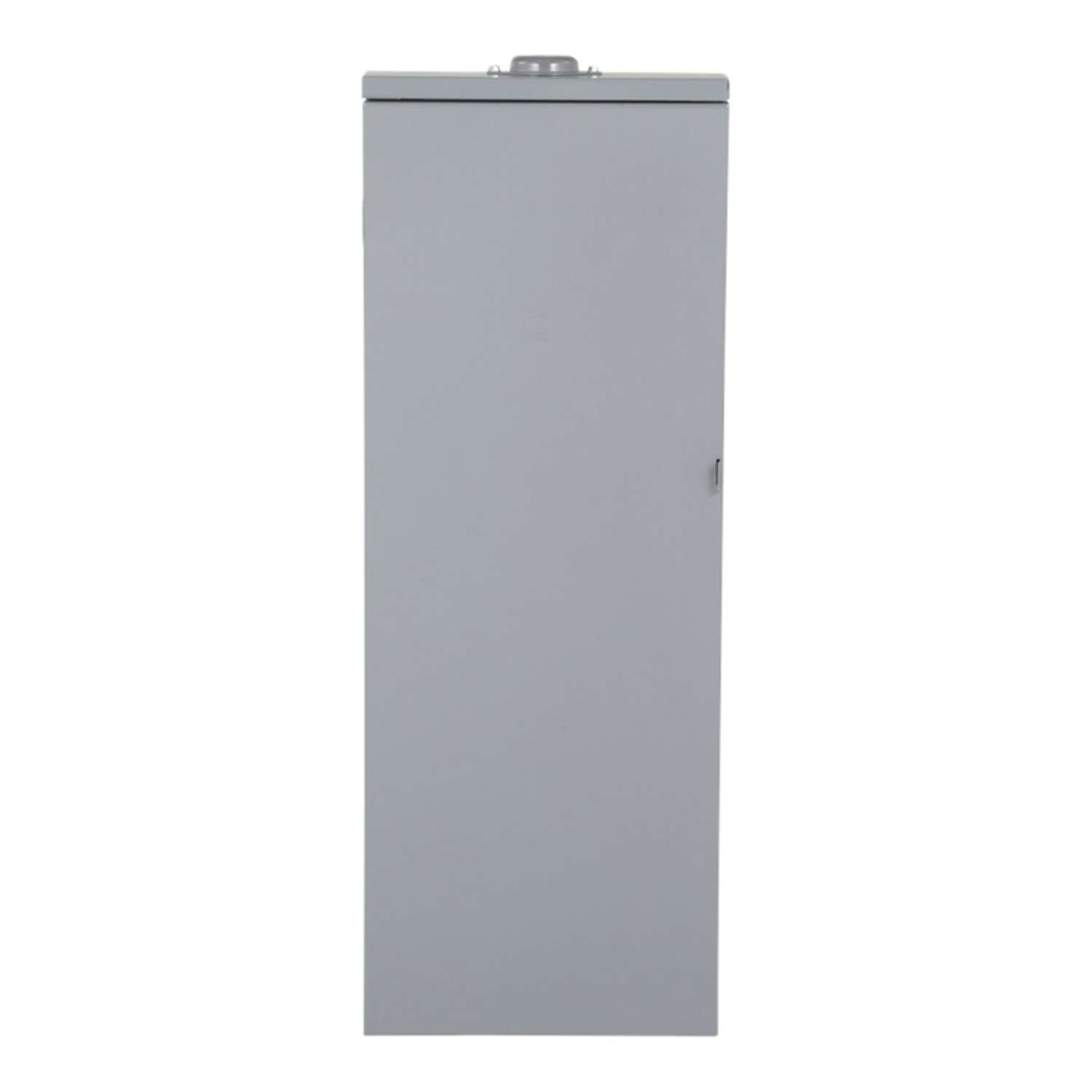

Square D Homeline 225 amps 120/240 V 42 space 84 circuits Surface Mount Main Lug Load Center

Engineered for value, Homeline Plug-on Neutral Load Centers are designed for fast installation, reliability and superior circuit protection. Homeline load centers enable the use of a full complement of accessories. Systems are single-phase and are rated for indoor use or are rainproof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 225A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 42 spaces in a NEMA 3R rainproof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or 4 AWG to 300 kcmil aluminum wire. This Homeline load center has a height of 39.37 inches, a width of 14.76 inches and depth of 4.52 inches. Homeline load centers are UL Listed.
