Product Overview

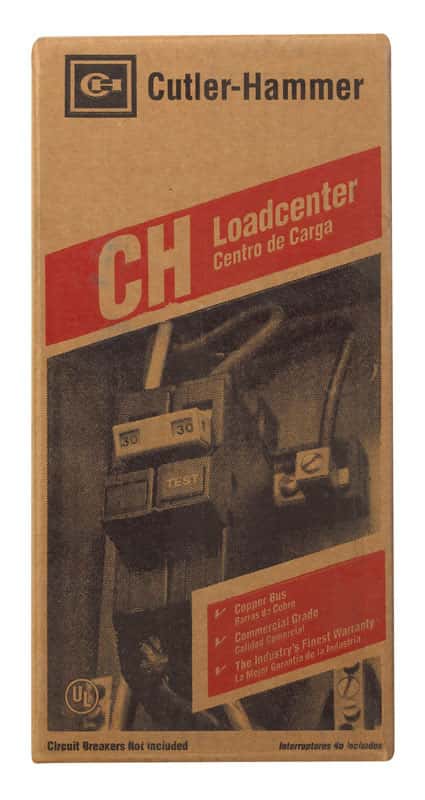

Eaton 1-phase main lug load center has copper bus construction for durability. It has a voltage rating of 120/240 VAC, current rating of 70 amp and interrupting rating of 10 kilo-amp. It has four circuits and two spacing of 3/4 inch for convenient operation. Load center can accommodate aluminum/copper wires of size 14-2 AWG. It operates at a temperature of 60/75 degree Celsius. Load center accepts CH circuit breakers for added safety and protection. Load center has NEMA 1 indoor metallic enclosure to provide protection against dust, light and indirect splashing. It has surface mounting for easy installation. Load center has top/bottom feed for convenience. Load center has insulated/bondable split single neutral that provides protection from electrical hazardous. It measures 4.500 inch x 3.130 inch x 9.500 inch. Load center is UL listed and meets UL 67/UL 50 standards.
  • A compact design makes it ideal for applications with limited space.
  • Knockouts provided at the top, bottom, rear, and sides for flexible wiring configurations.
  • NEMA 1 Indoor

Specifications

  • Brand Name: Eaton
  • Product Type: Main Lug Load Center
  • Amps: 70 ampere
  • Breakers Included: No
  • Circuit Protection Type: Main Lug
  • Depth: 3-3/4 inch
  • Height: 9 1/2 inch
  • Maximum Number of Circuits: 2 circuits
  • Mounting Type: Surface Mount
  • Number of Spaces: 2 space
  • Packaging Type: BOXED
  • Brand Name: Eaton
  • UL Listed: Yes
  • Volts: 120/240 volt
  • Width: 5-1/4 inch
  • Indoor or Outdoor: Outdoor
