Product Overview

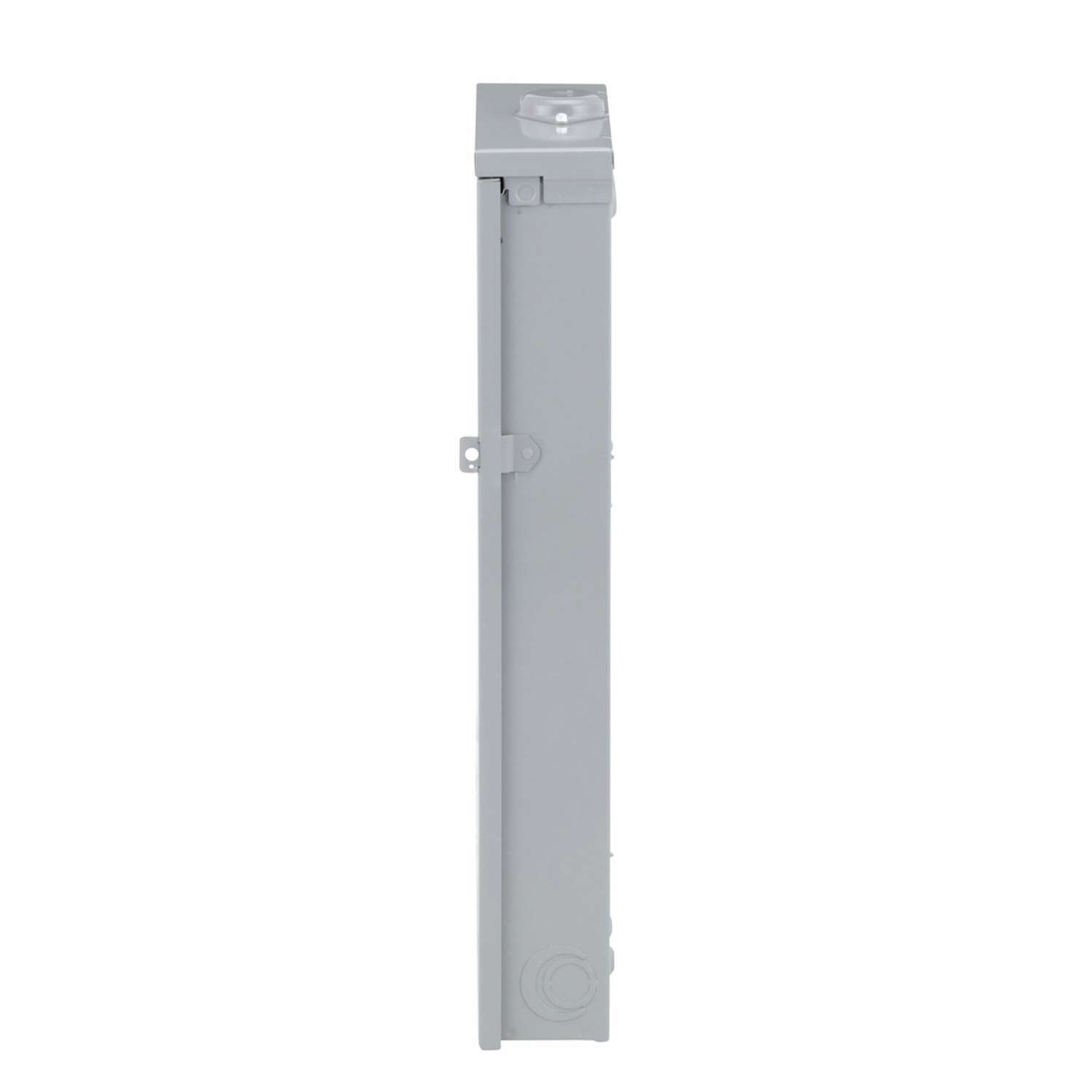

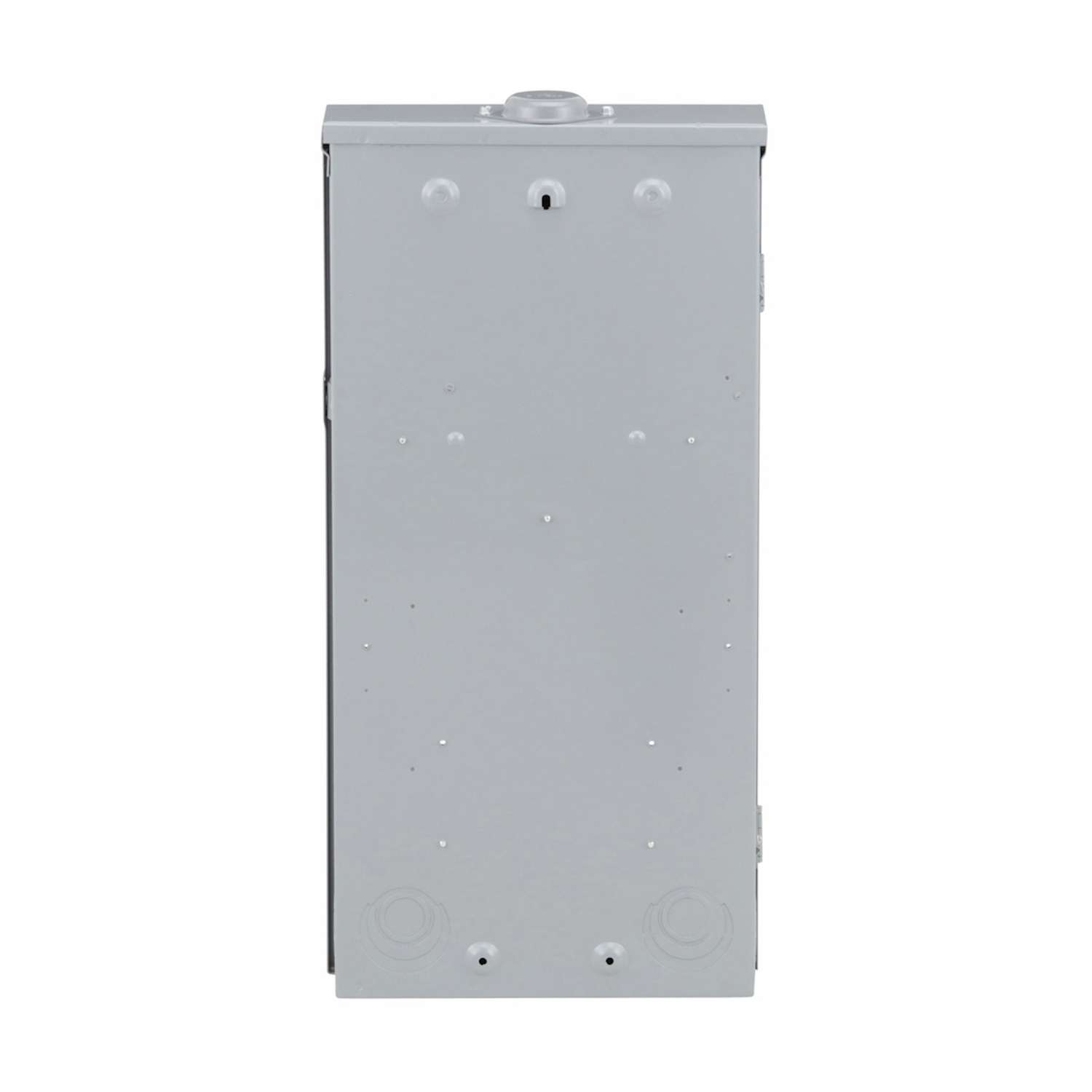

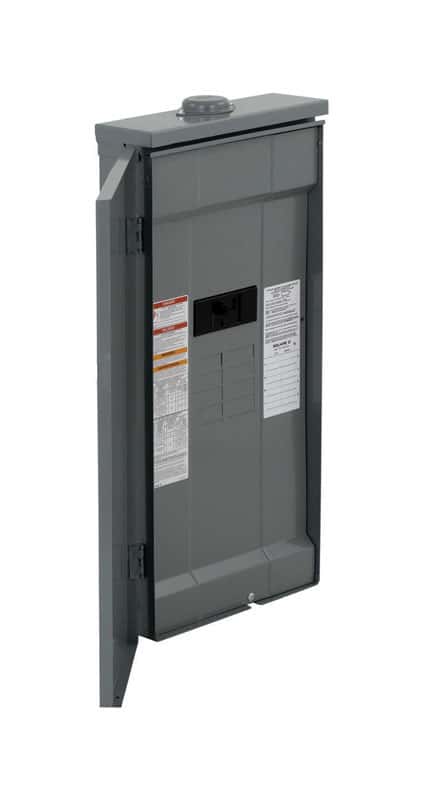

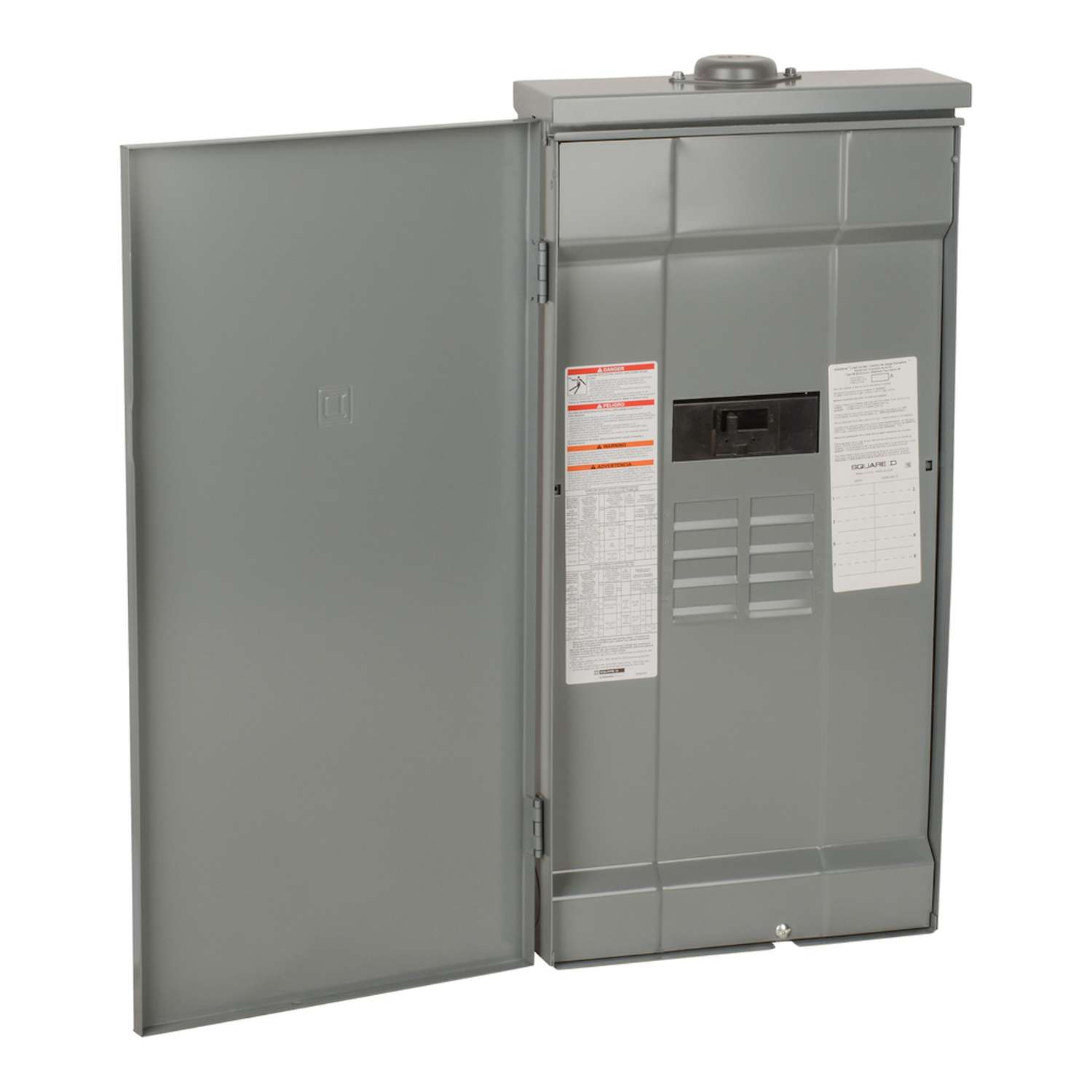

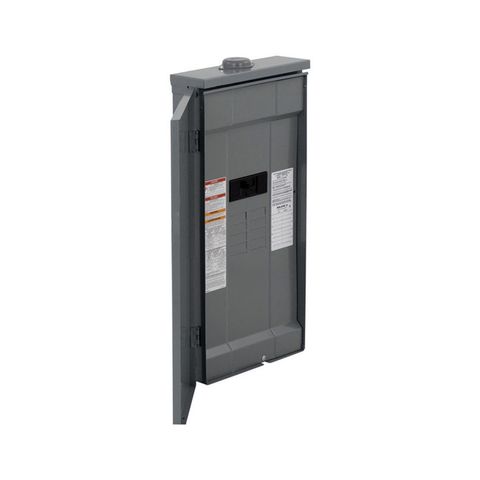

The Square D Homeline 200 Amp 8-Space 16-Circuit Outdoor Convertible Main Breaker Load Center for Plug-on Neutral breakers has feed-thru lugs and is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
  • Square D Homeline 200 Amp 8-Space 16-Circuit Outdoor Main Breaker Load Center with Feed-Thru Lug * *
  • Each pole space accepts full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) 10-14 equipment grounds
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240 VAC and 22, 000 AIR short circuit current rating
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Designed with straight-in mains to save expensive cable and time

Specifications

  • Brand Name: Square D
  • Sub Brand: HomeLine
  • Product Type: Main Breaker Load Center
  • Amps: 200 ampere
  • Breakers Included: No
  • Circuit Protection Type: Single Pole
  • Depth: 4-1/2 inch
  • Height: 29-7/8 inch
  • Maximum Number of Circuits: 16 circuits
  • Mounting Type: Wall Mount
  • Number of Spaces: 8 space
  • Packaging Type: BOXED
  • Brand Name: Square D
  • UL Listed: Yes
  • Volts: 120/240 volt
  • Width: 14-3/4 inch
  • Indoor or Outdoor: Outdoor
  • Sub Brand: HomeLine
