Product Overview

Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
  • Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation.

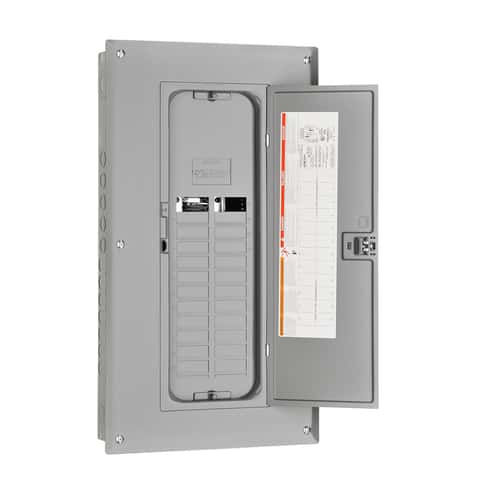

  • 125 Amp 16-Space 32-Circuit Indoor Main Lugs Load Center for Plug-on Neutral breakers. Compatible with any Square D Homeline circuit breaker *
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds. Includes a combination flush/surface cover and is convertible to main breaker load center with a QOM1 main breaker (sold separately).
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Each pole space accepts full-size, tandem or quad breakers.
  • For residential or commercial power distribution *
  • Engineered for faster installation with fewer connections *
  • Factory-installed indoor cover and copper bus bar included *

Specifications

  • Brand Name: Square D
  • Sub Brand: Homeline
  • Product Type: Load Center
  • Amps: 125 ampere
  • Breakers Included: No
  • Circuit Protection Type: Main Lug
  • Depth: 3.8 inch
  • Height: 26 inch
  • Maximum Number of Circuits: 32 circuits
  • Mounting Type: Surface Mount
  • Number of Spaces: 16 space
  • Packaging Type: BOXED
  • Brand Name: Square D
  • UL Listed: Yes
  • Volts: 120/240 volt
  • Width: 14.2 inch
  • Indoor or Outdoor: INDOOR
  • Sub Brand: HomeLine
