Product Overview

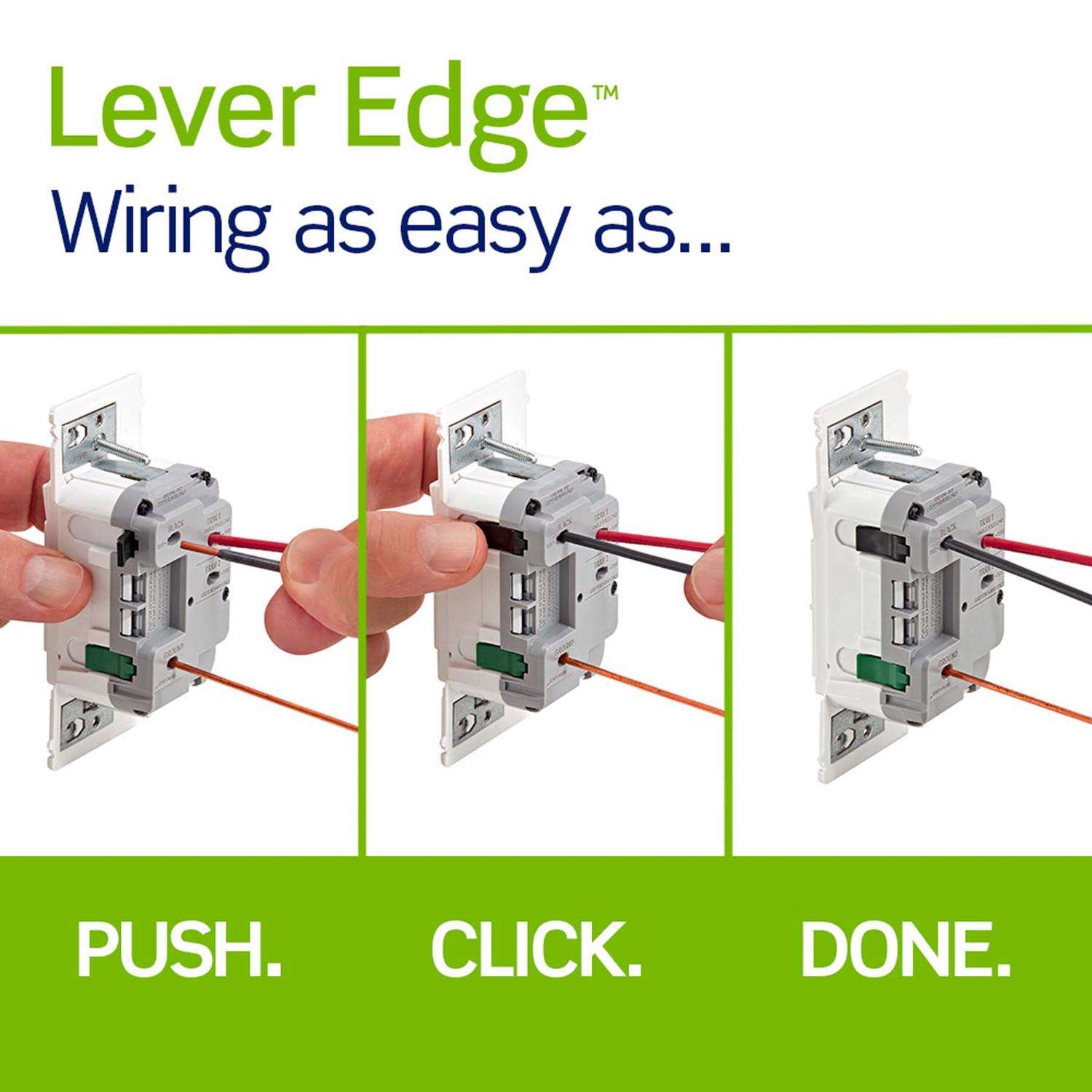

Replacing a light switch with a Decora Lever Edge Rocker Slide dimmer switch is now as easy as… push, click and done. The dimmer offers superior dimming performance with LED bulbs, and a faster, easier installation using Lever Edge terminals. The ESL01 dimmer is rated for 120V 60Hz 150W LED, CFL, and Incandescent lighting. It can be used in single pole or 3-way installations. The dimmer works with existing wiring, no neutral wire required for installation and is ideal for newer and older homes. The dimmer includes a setup button to easily adjust settings such as dimming range, fade on, startup configuration; use with Decora Midway or standard wallplates (sold separately).

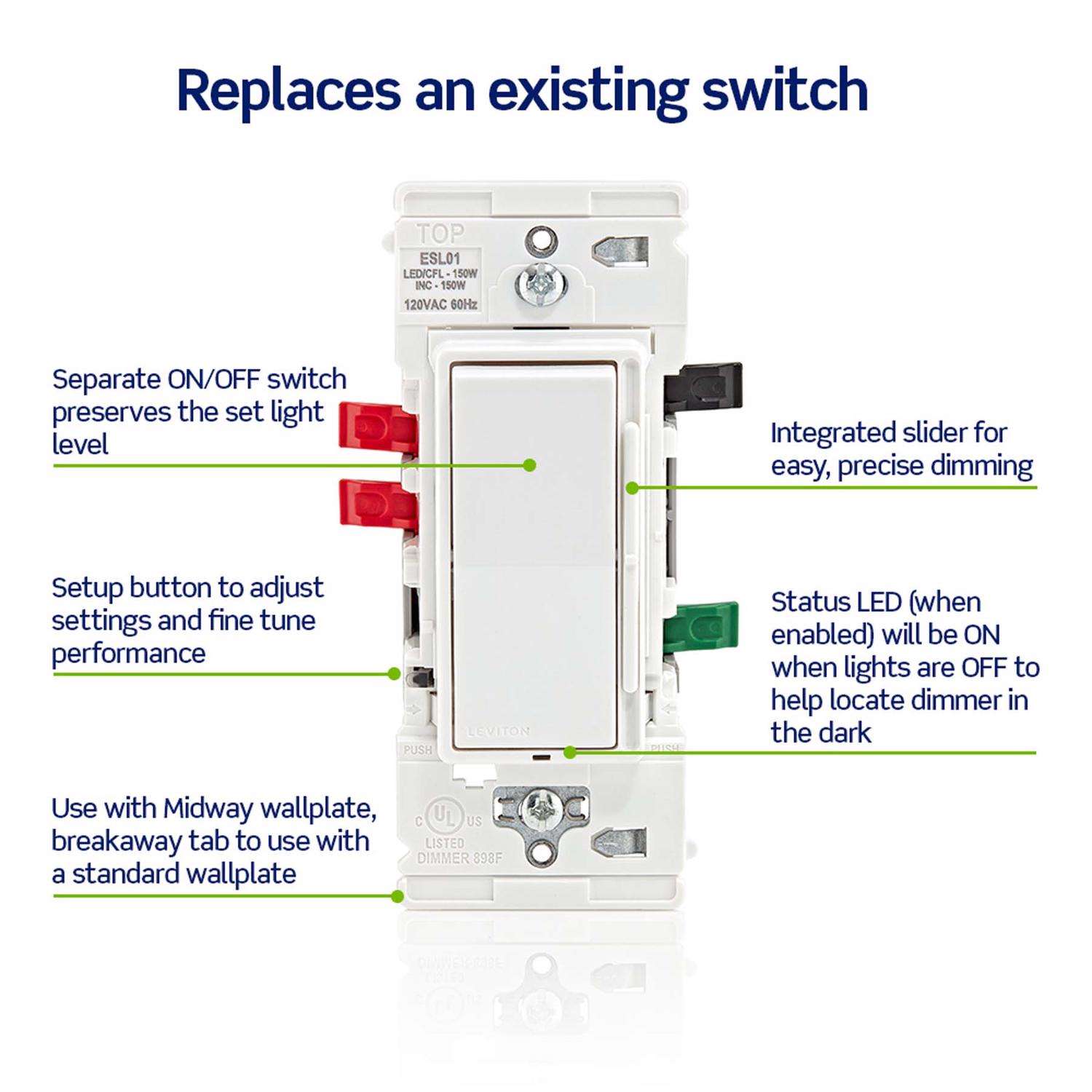

  • Integrated slider to brighten and dim lights
  • No neutral wire required for installation
  • Separate On/Off Decora switch to set and keep the preferred light level
  • Setup button to easily adjust settings such as minimum and maximum dimming range, fade on, startup configuration, and more and Decora Plus standard and screwless wallplates
  • Status LED can be enabled to illuminate when lights are OFF so it is easier to locate the dimmer in the dark
  • Single Pole or 3-way when used with a 3-way switch

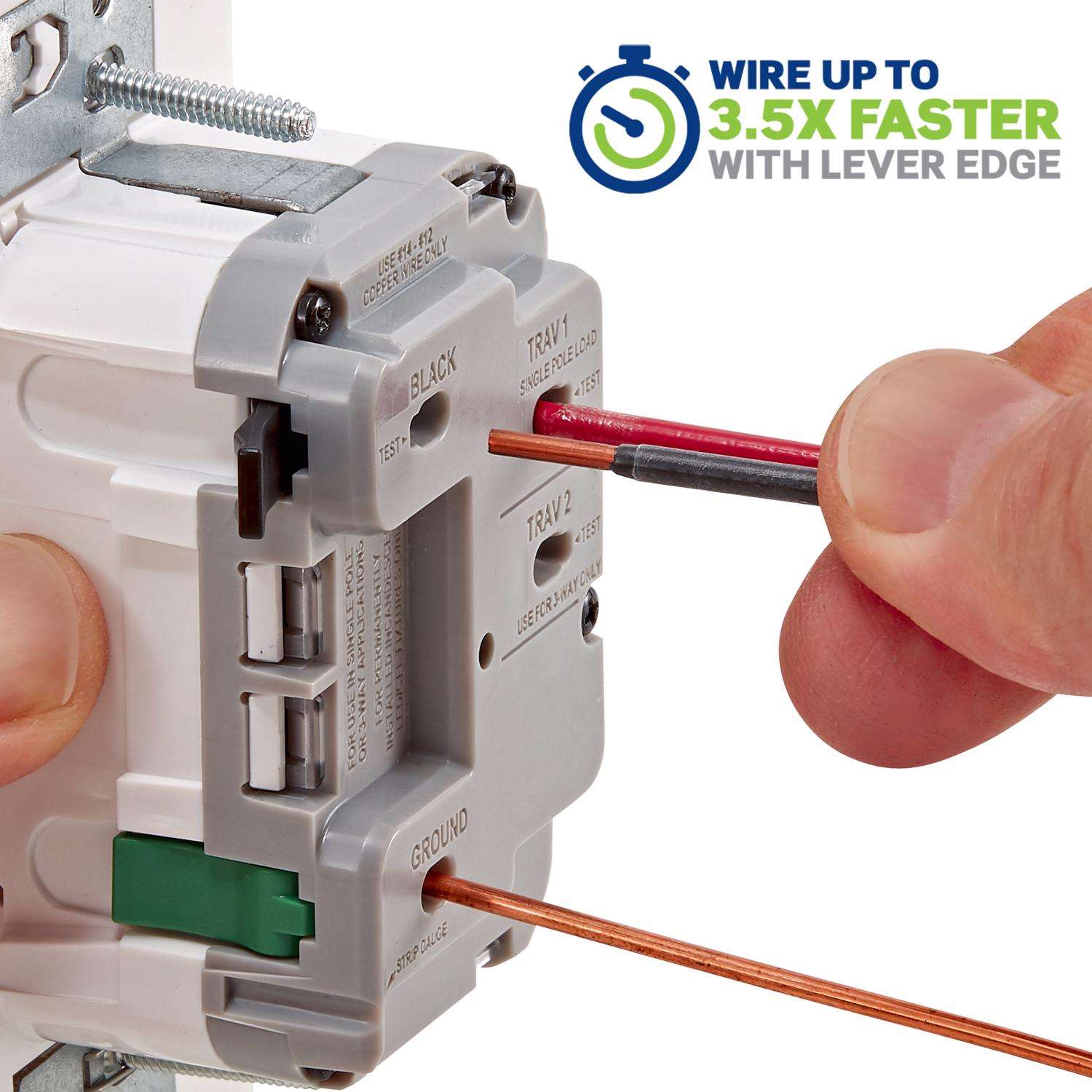

  • Change the color using DSKIT faceplates available in white, ivory, light almond, gray, black, brown and red Lever Edge Installation Features need for electrical tape
  • Color coded terminals reduce the risk of miswiring
  • The only residential device on the market with a ground wire quick termination
  • No exposed metal parts for enhanced safety, eliminates

Specifications

  • Brand Name: Leviton
  • Sub Brand: Lever Edge
  • Product Type: Dimmer Switch
  • Color: WHITE
  • Material: Thermoplastic
  • Number in Package: 1 pack
  • Packaging Type: BOXED
  • Brand Name: Leviton
  • Switch Type: Rocker
  • Sub Brand: Lever Edge
  • Click here to see the Safety Data Sheets for this product.
