Product Overview

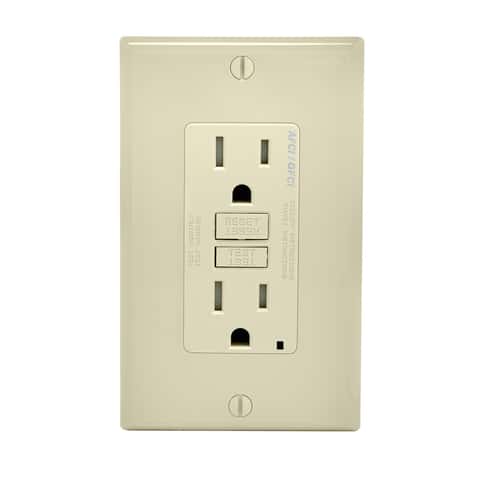

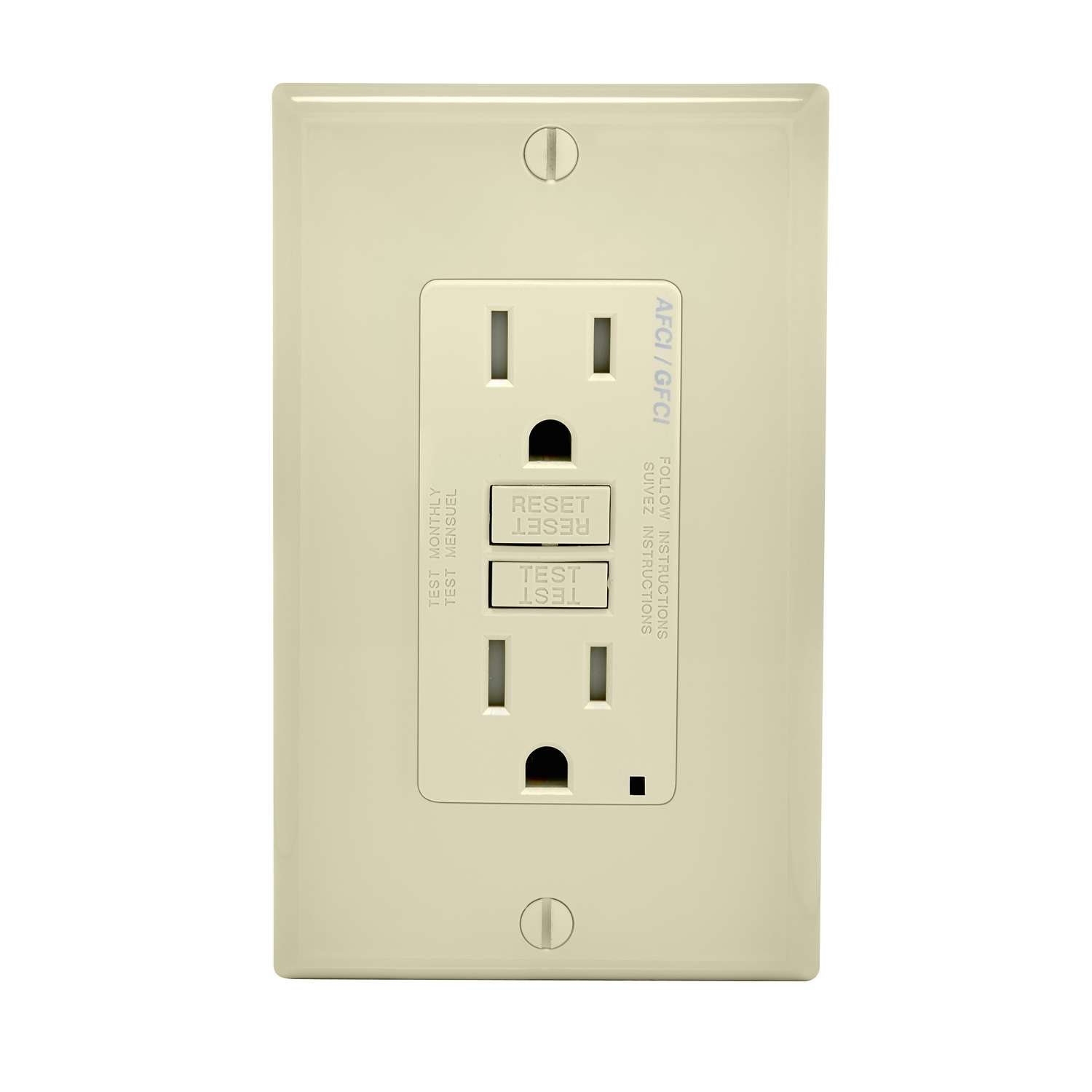

The SmartlockPro Dual Function AFCI/GFCI Receptacle offers protection both from electrical fires that could result from arc-faults and from electrical shock due to ground faults in one smart device. Through advanced technology the SmartlockPro Dual Function AFCI/GFCI Receptacle helps protect home and family by working to detect arc-fault and ground fault hazards and if detected, quickly cuts off power to help avoid a potential fire or shock occurrence. The SmartlockPro Dual Function AFCI/GFCI Receptacle offers a National Electrical Code (NEC) compliant option for AFCI/GFCI protection in residential kitchens and laundry areas for new construction, modifications/extensions and replacement receptacles. It is also ideal as a replacement for ungrounded receptacles, satisfying NEC requirements for both AFCI and GFCI protection.
  • Trip threshold meets or exceeds UL requirements for tripping time on ground faults and on both series and parallel arcs for optimal safety
  • On initial power up, tests the GFCI circuit within 3 seconds
  • Patented lockout action prevents reset if the device is damaged
  • Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal for at-a-glance analysis
  • Test and reset buttons are readily accessible on the face of the device
  • Improved immunity to high frequency noise reduces nuisance tripping
  • Superior resistance to electrical surges and over-voltages enhancing reliability
  • Patented bridge contact design provides individual sets of contacts for receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired
  • One-piece T-design trip latch mechanism provides efficient operation
  • Impact-resistant thermoplastic cover and body for durability

Specifications

  • Brand Name: Leviton
  • Sub Brand: SmartlockPro
  • Product Type: AFCI/GFCI Dual Function Outlet
  • Commercial or Residential: Commercial and Residential
  • Color: Light Almond
  • Depth: 1.27 inch
  • Grounded: Yes
  • Maximum Amperage: 15 ampere
  • Material: Polycarbonate
  • Nema Type: 5-15R
  • Number of Poles: 2
  • Number in Package: 1 pack
  • Packaging Type: BOXED
  • Brand Name: Leviton
  • Volts: 125 volt
  • Width: 1.68 inch
  • Indoor or Outdoor: INDOOR
  • Sub Brand: SmartlockPro
  • Outlet Configuration: Duplex
