Product Overview

A plunger switch has an actuator that makes or breaks the circuit contact when its button is depressed. A momentary switch, sometimes called a spring return switch, automatically returns to the rest position. A normally ON or Normally OFF switch is designed so that it can be wired either normally ON (also called a normally closed circuit) or normally OFF (also called a normally open circuit), depending on your needs.Single pole, single throw (SPST) is a two terminal switch that opens or closes one circuit.

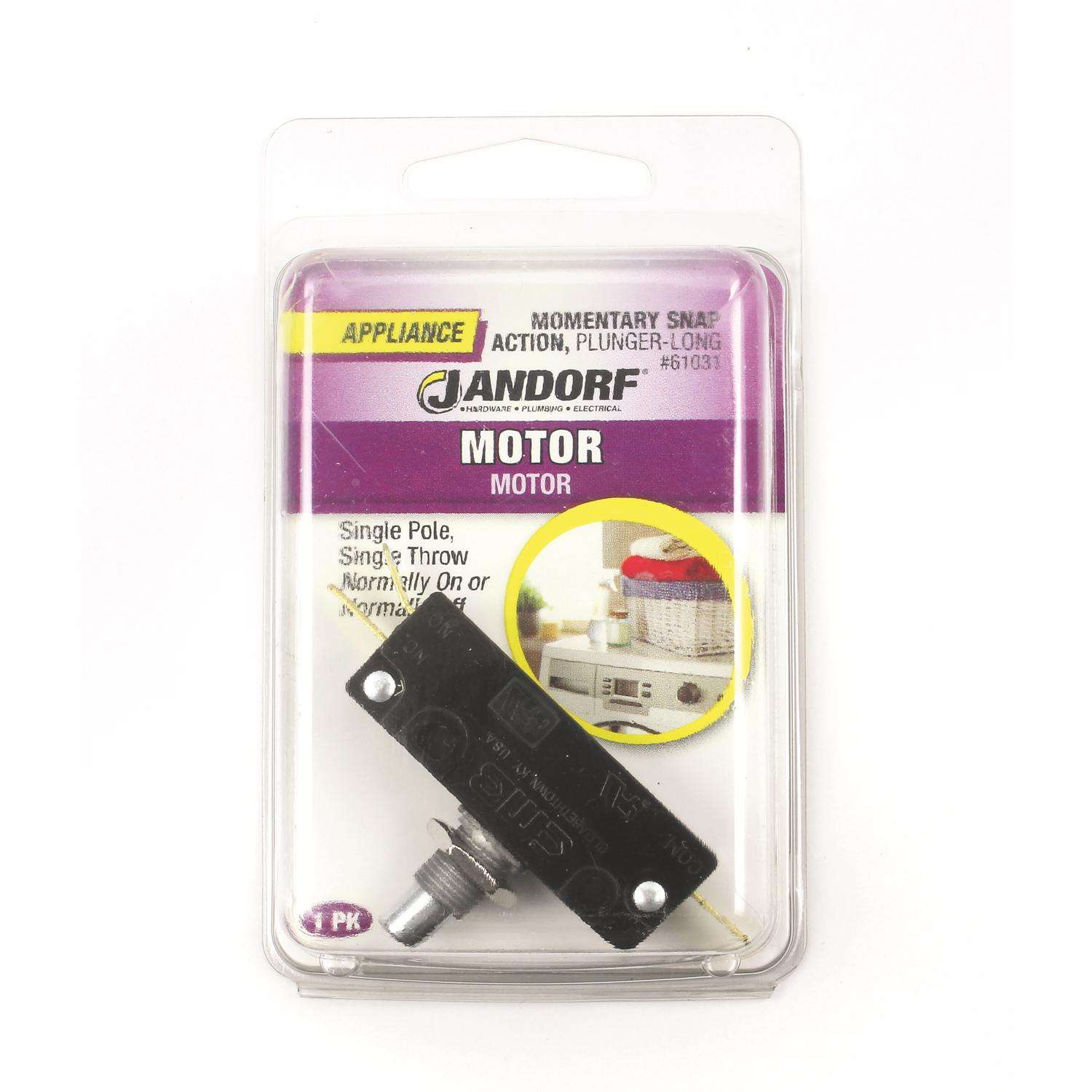

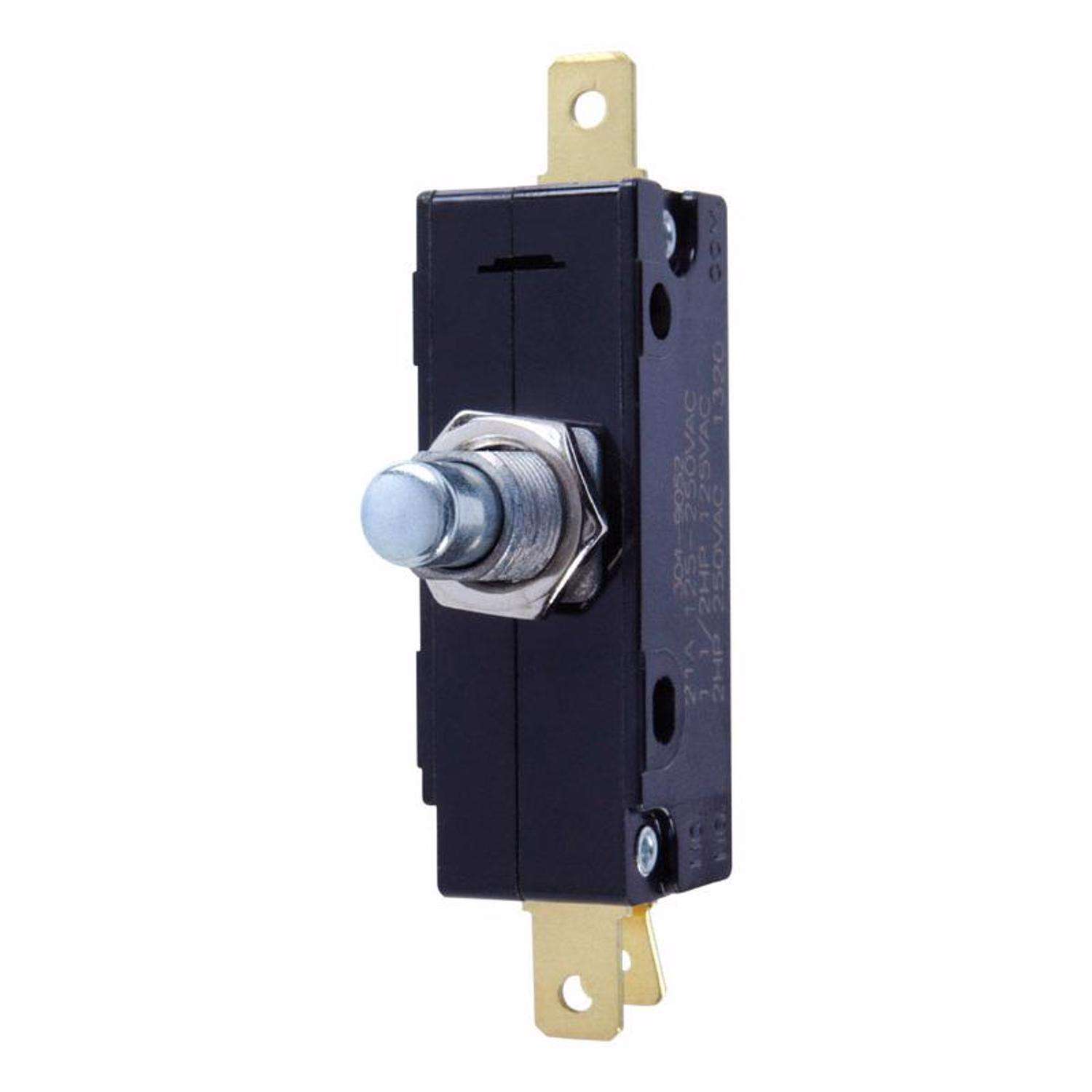

  • This momentary snap action switch, with a long plunger actuator, is commonly used for motor applications.
  • Features tab terminals for an easy, quick connection.
  • Single Pole, Single Throw (SPST)
  • Can be wired as either Normally ON or Normally Off function
  • Rated: 21A-125/250VAC; 1-1/2HP 125VAC; 2HP 250VAC

Specifications

  • Brand Name: Jandorf
  • Product Type: Appliance Switch
  • Amps: 21 ampere
  • Color: Black/Silver
  • Number of Poles: Single Pole
  • Number in Package: 1 pack
  • Packaging Type: Carded
  • Brand Name: Jandorf
  • Switch Type: Momentary
  • Volts: 125 volt
  • Wall Plate Included: No
  • UL/CSA Listed: UL Listed
  • Click here to see the Safety Data Sheets for this product.
