Product Overview

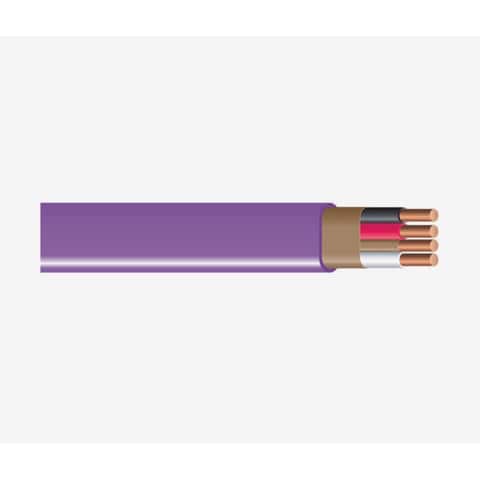

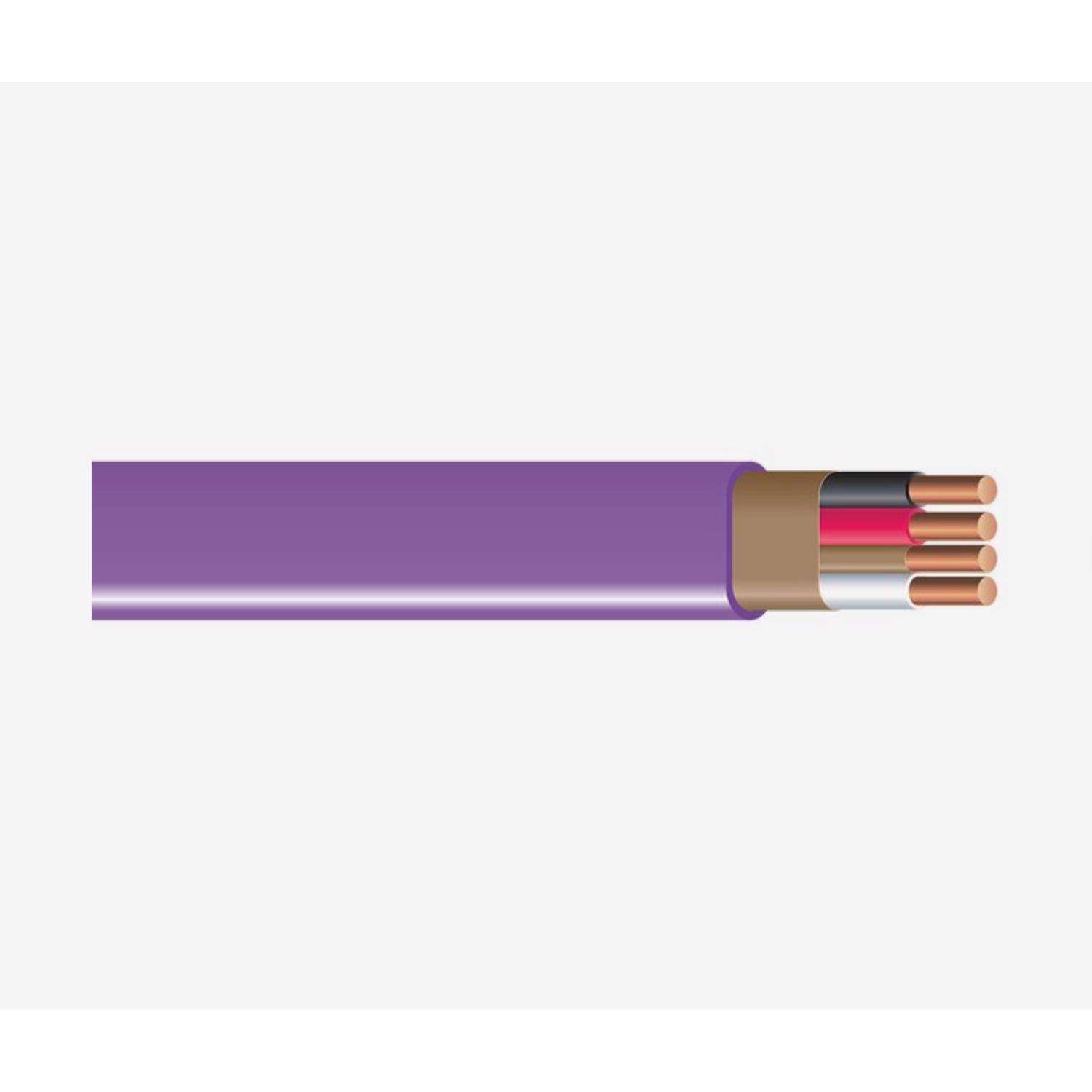

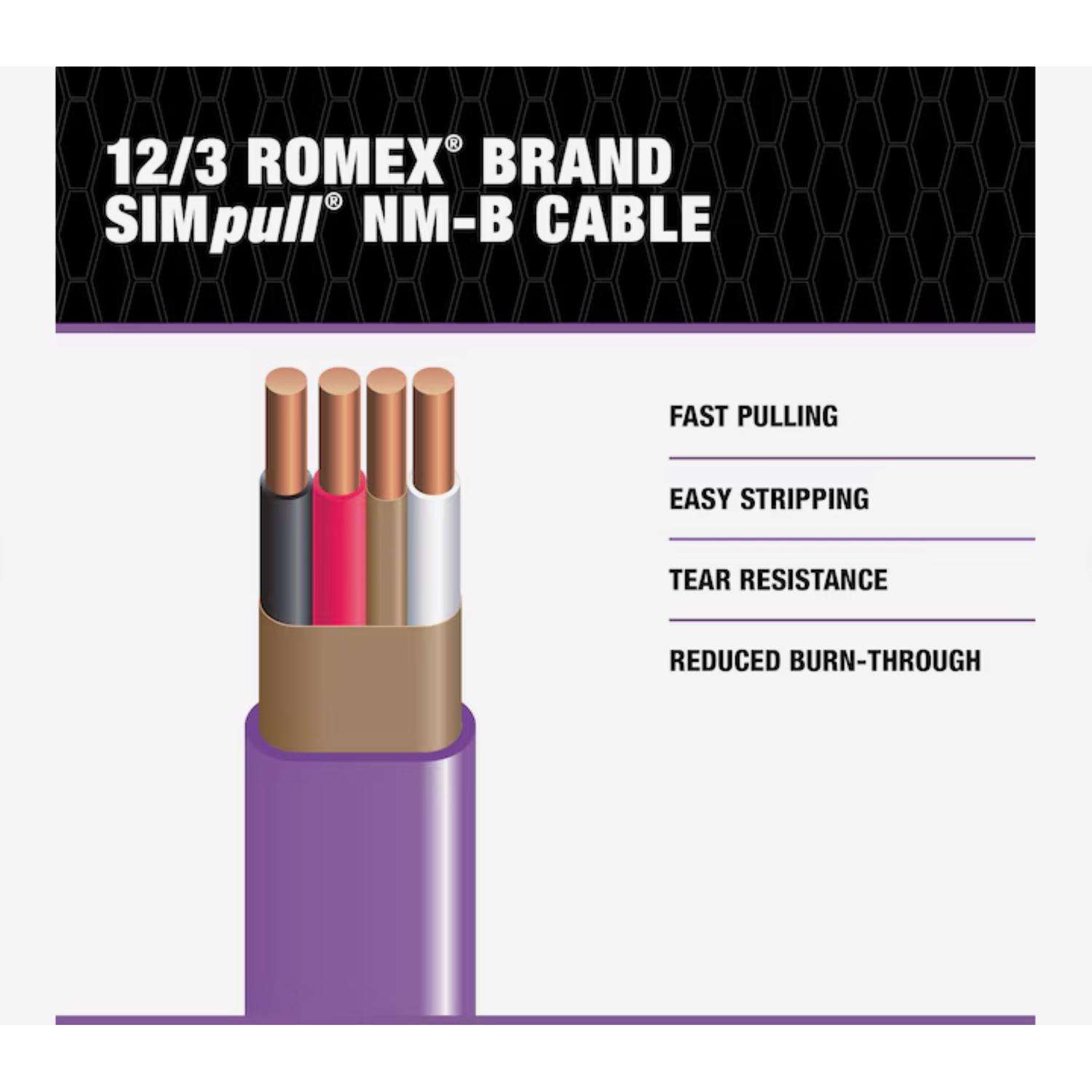

Wire residential indoor branch circuits for outlets, switches and other loads with Southwire Romex SIMpull Type NM-B Cable. Slik quik jacket allows for 50 percent reduction in pulling force for easier installation. May be run in air voids of masonry block or tile walls not subject to excessive moisture and dampness.
  • Romex SIMPULL NM-B Residential
  • NM-B - Non Metallic Type B
  • 600 Volts
  • For Dry Locations Only
  • 90C Heat Capacity
  • 3 conductor design
  • 12 AWG
  • 19 mils insulation and jacket thickness
  • 107 lb. per 1000'
  • 20 allowable ampacity

Specifications

  • Brand Name: Southwire
  • Product Type: Wire
  • Amp Rating: 20 ampere
  • Cable or Wire Type: Romex Type NM-B WG Non-Metallic
  • Conductor Material: Copper
  • Conductor Gauge: 12 Gauge
  • Direct Burial: Yes
  • Flame Retardant: Yes
  • Ground Material: Copper
  • Insulation Material: PVC: Thermoplastic
  • Jacket Material: Nylon
  • Number of Conductors: 3
  • Brand Name: Southwire
  • Stranded or Solid: Solid
  • Temperature Rating: 90 degree Fahrenheit
  • UL Listed: Yes
  • Voltage Rating: 600 volt
  • Wire Length: 25 foot
  • Indoor or Outdoor: INDOOR
  • Gauge/Conductors: 12/3
  • Click here to see the Safety Data Sheets for this product.
