Product Overview

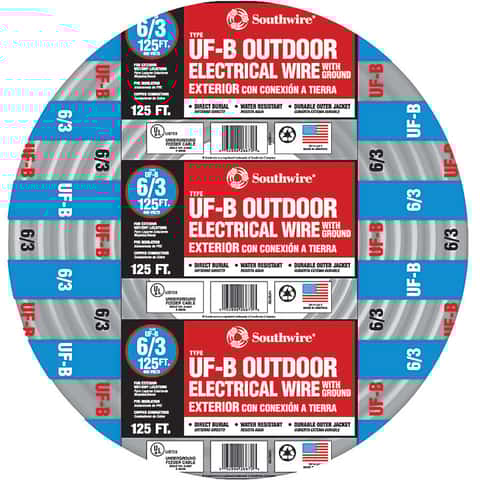

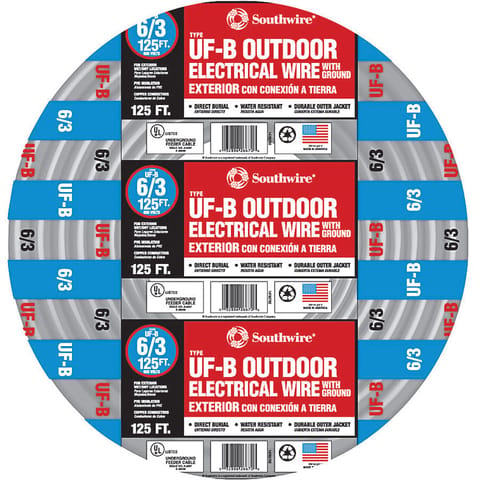

Southwire’s UF-B cable is used in applications that include outside lamp posts, pumps and other loads. It can also be used for outbuildings such as garages and barns. UF-B feeds from a distribution point in an existing building. UF-B has a heat capacity of 90 degree Celsius and is rated at 600 volt. UL Listed and CSA Certified.
  • UF-B Underground Building Wire
  • UF-B: Underground Feeder Type B
  • 600 Volts
  • For Wet or Dry Locations
  • 90 Degree C Heat Capacity
  • 90 Degree C Heat Capacity

Specifications

  • Brand Name: Southwire
  • Product Type: Cable
  • Amp Rating: 55 ampere
  • Cable or Wire Type: Type UF-B WG Underground Feeder
  • Conductor Material: Copper
  • Conductor Gauge: 6 Gauge
  • Color: GRAY
  • Direct Burial: Yes
  • Flame Retardant: Yes
  • Ground Material: Copper
  • Ground Wire Gauge: 6 Gauge
  • Insulation Material: PVC
  • Jacket Material: Nylon
  • Number of Conductors: 3
  • Brand Name: Southwire
  • Stranded or Solid: Stranded
  • Temperature Rating: 90 degree Fahrenheit
  • UL Listed: Yes
  • Voltage Rating: 600 volt
  • Wet Location Use: Yes
  • Wire Length: 125 foot
  • Indoor or Outdoor: Indoor and Outdoor
  • Gauge/Conductors: 6/3
  • Sunlight/UV Resistant: Yes
