Product Overview

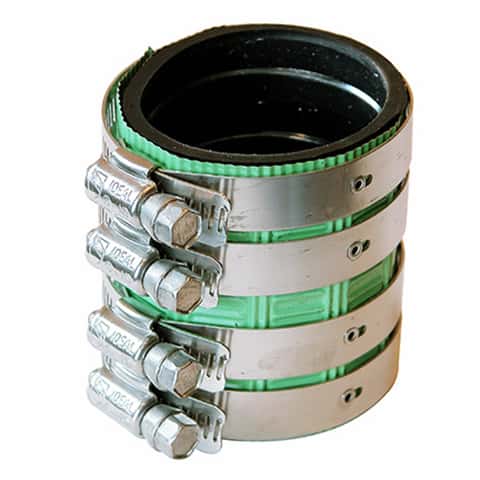

The No-Hub Coupling has a patented shield design that provides maximum transfer of pressure from the clamps to the gasket and pipe. Engineered to connect no-hub cast iron pipe in applications, replacing the less-efficient hub and spigot. The shield adjusts to a variety of a pipes diameters and circumferences - eliminating leak paths. The patented, bi - directional corrugation shield seals pressure in both parallel and transverse patterns on the gasket and pipe to provide a positive, reliable seal. The distinctive green shield quickly identifies the Heavy-Duty HD Couplings and makes it easier for inspectors. 3/8" hex - head screw applies 80 in.-lbs. of installation torque to the band/shield assembly. Boasts an ultimate torque rating exceeding 100 in.-lbs. and heavier gauge stainless steel.
  • Neoprene gasket provides a strong grip and a seal that lasts
  • Rated for above or below ground applications
  • The clamps feature a one-piece screw housing that mechanically interlocks to the band

Specifications

  • Brand Name: Fernco
  • Product Type: No Hub Coupling
  • Application: DWV
  • ANSI Certified: No
  • Average Lead Content: Lead Free
  • Application: DWV
  • End 1 Diameter: 2 inch
  • End 1 Type: Hub each
  • End 2 Diameter: 2 inch
  • End 2 Type: Hub
  • IAPMO Certified: No
  • Maximum Pressure: 4.3 pound per square inch
  • Maximum Temperature: 220 degree Fahrenheit
  • Material: PVC
  • NSF Listed: No
  • Number in Package: 1 pack
  • Packaging Type: BOXED
  • Brand Name: Fernco
  • Click here to see the Safety Data Sheets for this product.
