Product Overview

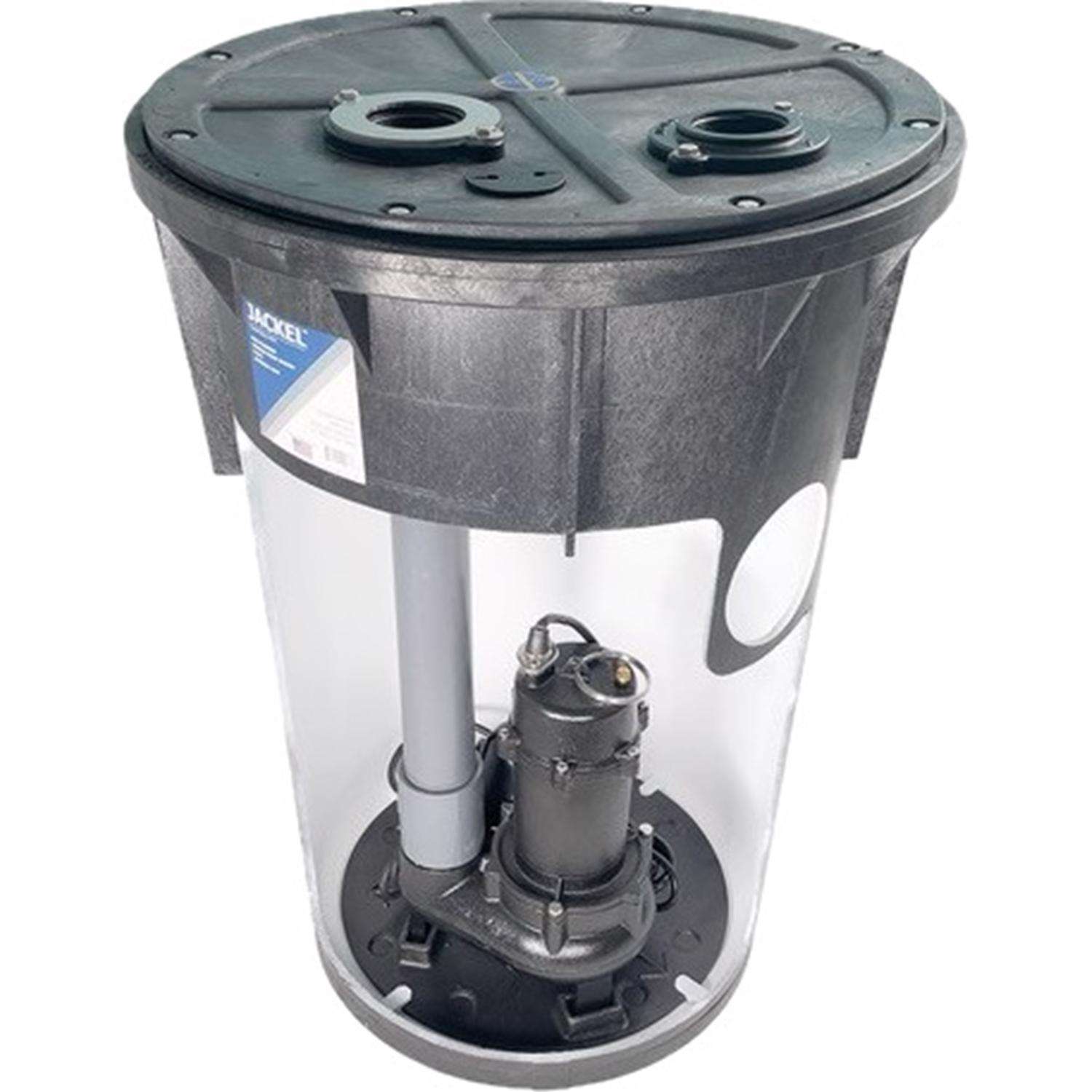

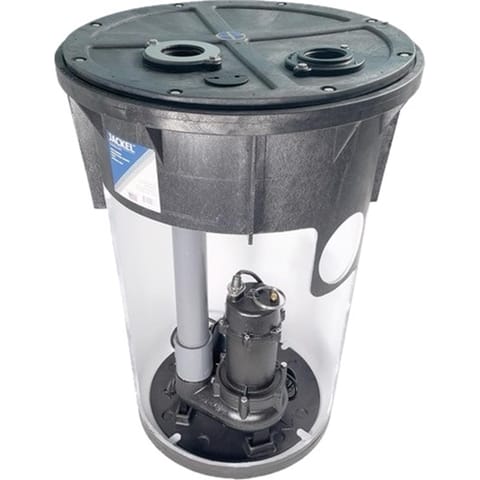

The Jackel 1/2 HP Submersible Pre-Plumbed Sewage Ejector Basin System comes fully pre-plumbed for easy installation. The system includes a 1/2 HP Sewage Pump that is capable of pumping up to 6,480 GPH. The pump comes secured to the basin with our unique torque plate. The pump is wrapped in our rugged 18x30 Sewage Basin with a reinforced bottom and topped off with our unique 18-inch. cover with 8 bolts to prevent unwanted access. Protecting the pump is our 2-inch full-flow sewage check valve.
  • What's Included: (1) 1/2 HP Sewage Pump, (1) 18x30 in. Sewage Basin, (1) 18 in. Cover, (1) 4 in. Snap-In-Hub, (1) 2 in. Sewage Check Valve
  • This complete system is great for basements and other below-grade installations.
  • The automatic, all cast-iron, 1/2 HP sewage pump is able to pass 2 in. solids and includes 10 ft. power and piggy-back float switch
  • Ultra-quiet, heavy-duty ABS compression fit check valve passes a full 2 in. solid

Specifications

  • What's Included: (1) 1/2 HP Sewage Pump, (1) 18x30 in. Sewage Basin, (1) 18 in. Cover, (1) 4 in. Snap-In-Hub, (1) 2 in. Sewage Check Valve
  • Brand Name: Jackel
  • Product Type: Sewage System
  • Amps: 10 ampere
  • Horsepower: 1/2 HP (horsepower)
  • Housing Material: Cast Iron
  • Height: 31 inch
  • Maximum Discharge Flow: 6420 gph
  • Maximum Temperature: 77 degree Fahrenheit
  • Pump Switch Type: Tethered Float Switch
  • Brand Name: Jackel
  • Volts: 115 volt
  • Warranty: 1 Year
  • Powered By: AC
  • Maximum Feet of Head: 18 foot
  • Discharge Pipe Size: 2 inch
  • CSA Certified: No
  • Maximum Solids Diameter: 2 inch
  • Minimum Sump Pit Diameter: 18 inch
  • Turn On/Off Level: 15 in./7 in.
  • Intake Size: 2 inch
