Product Overview

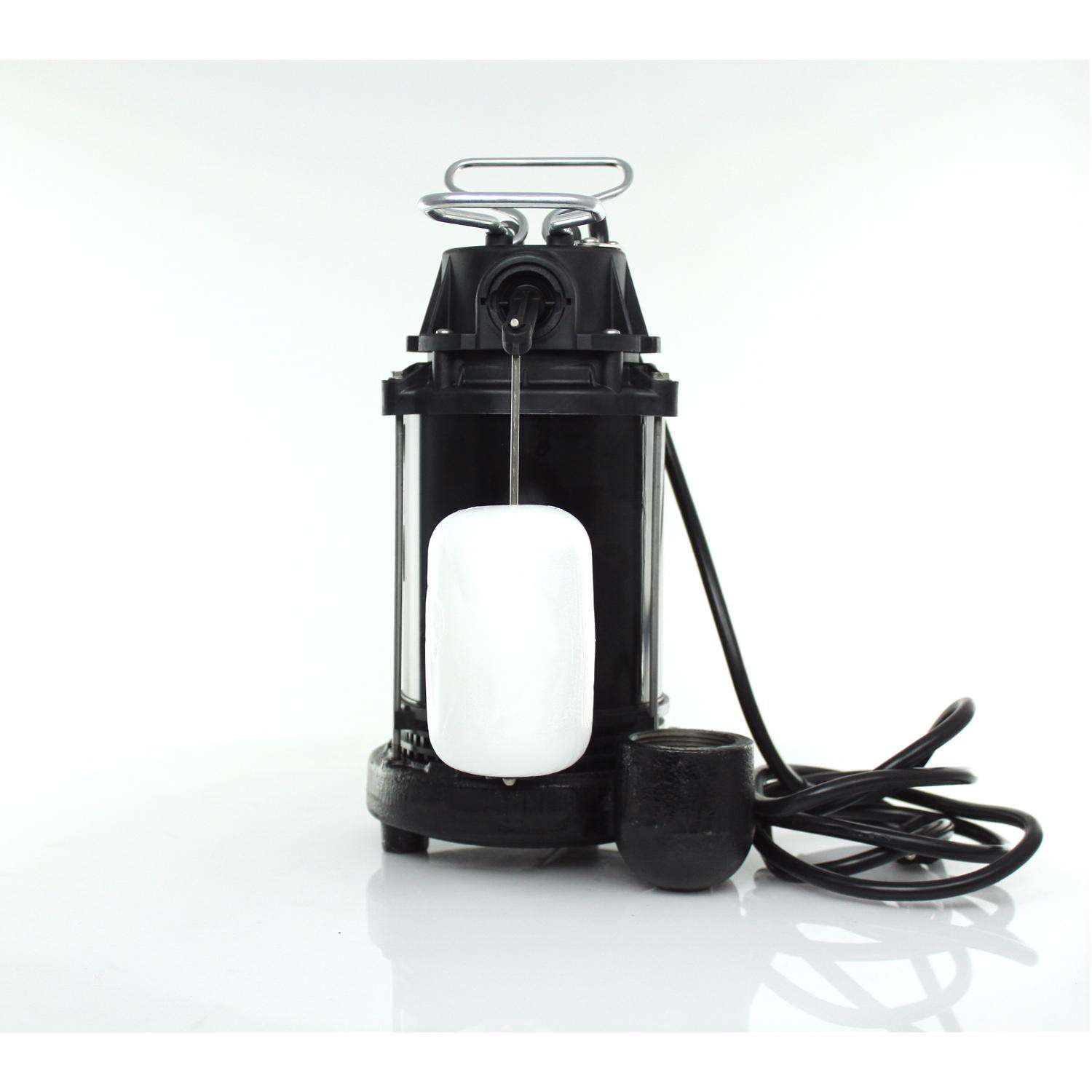

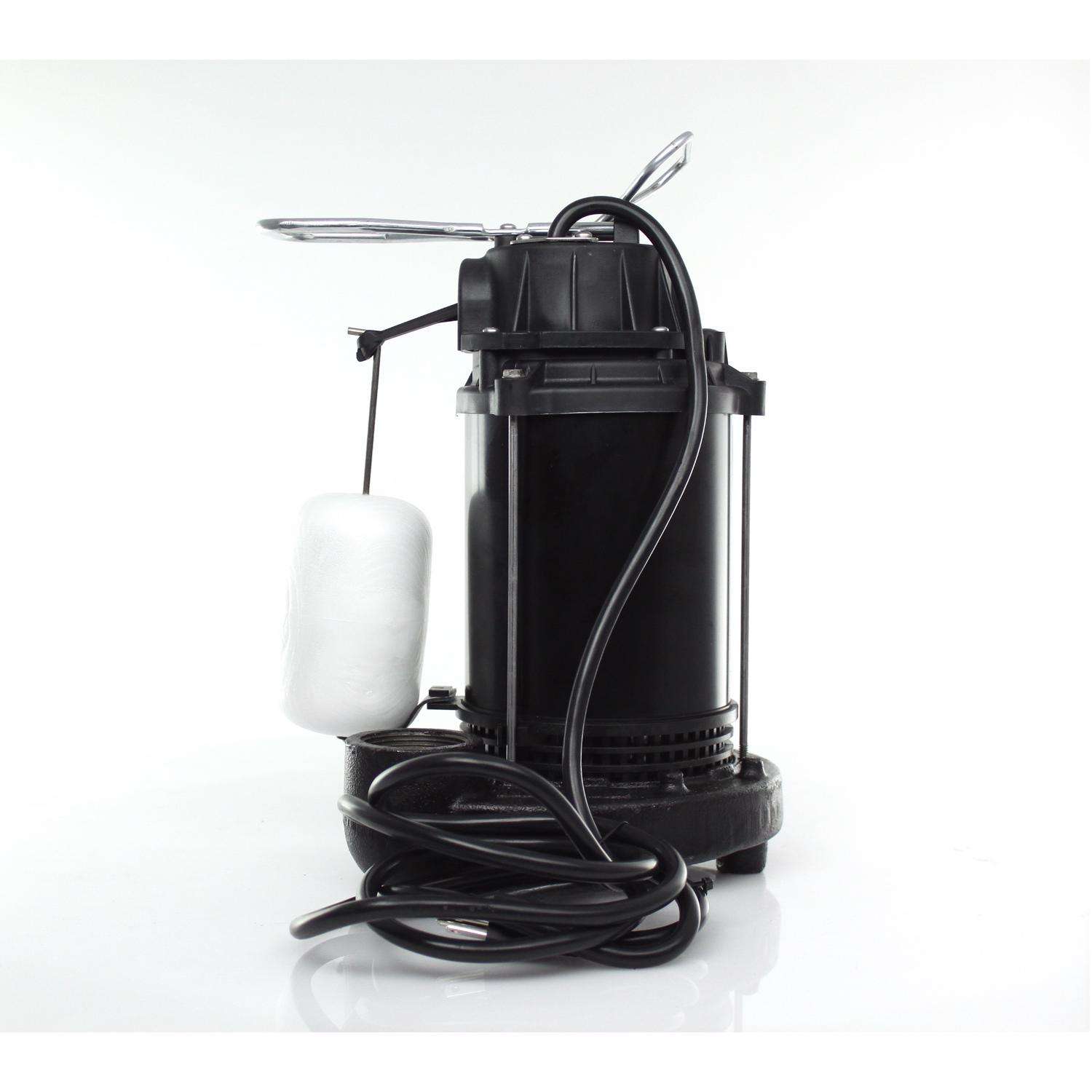

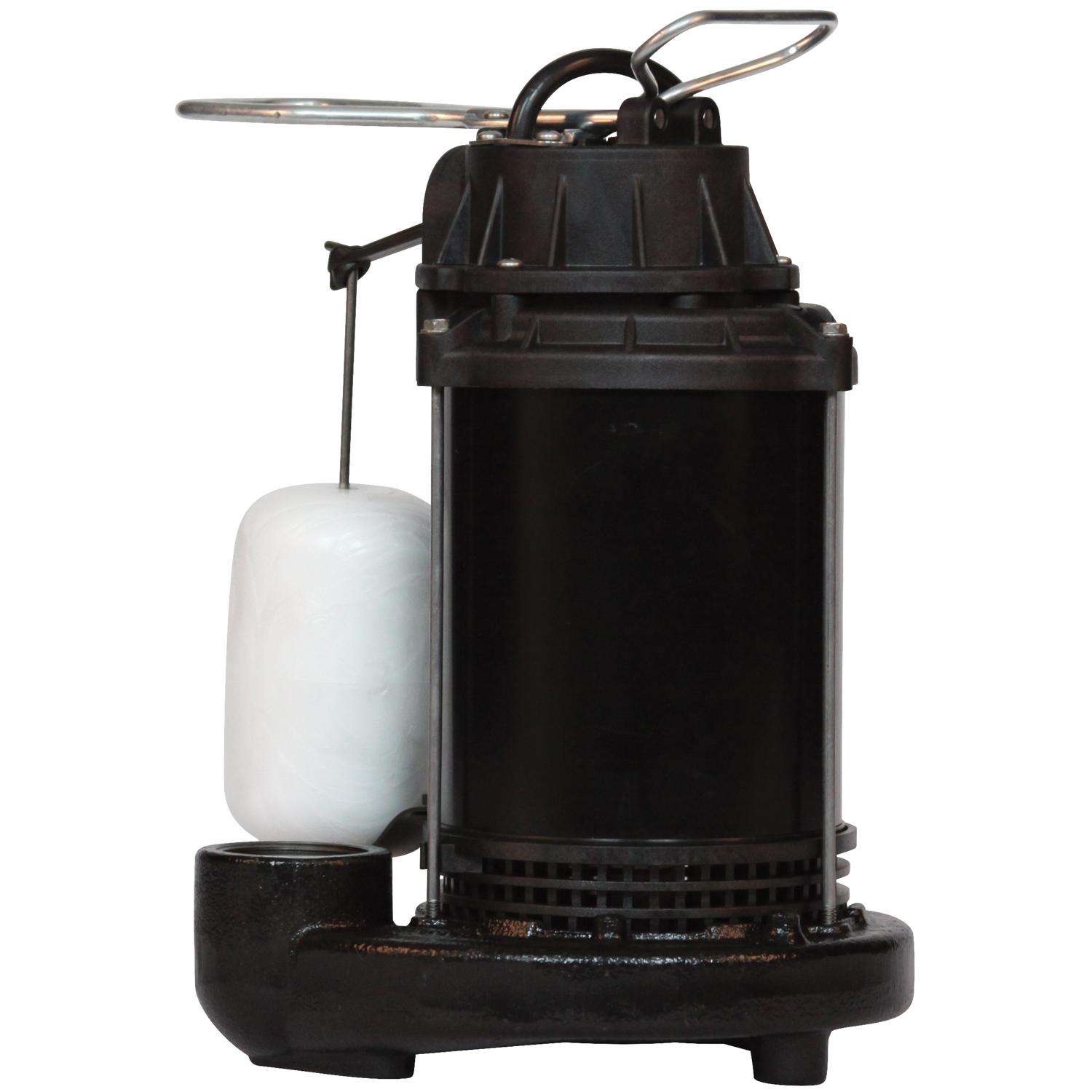

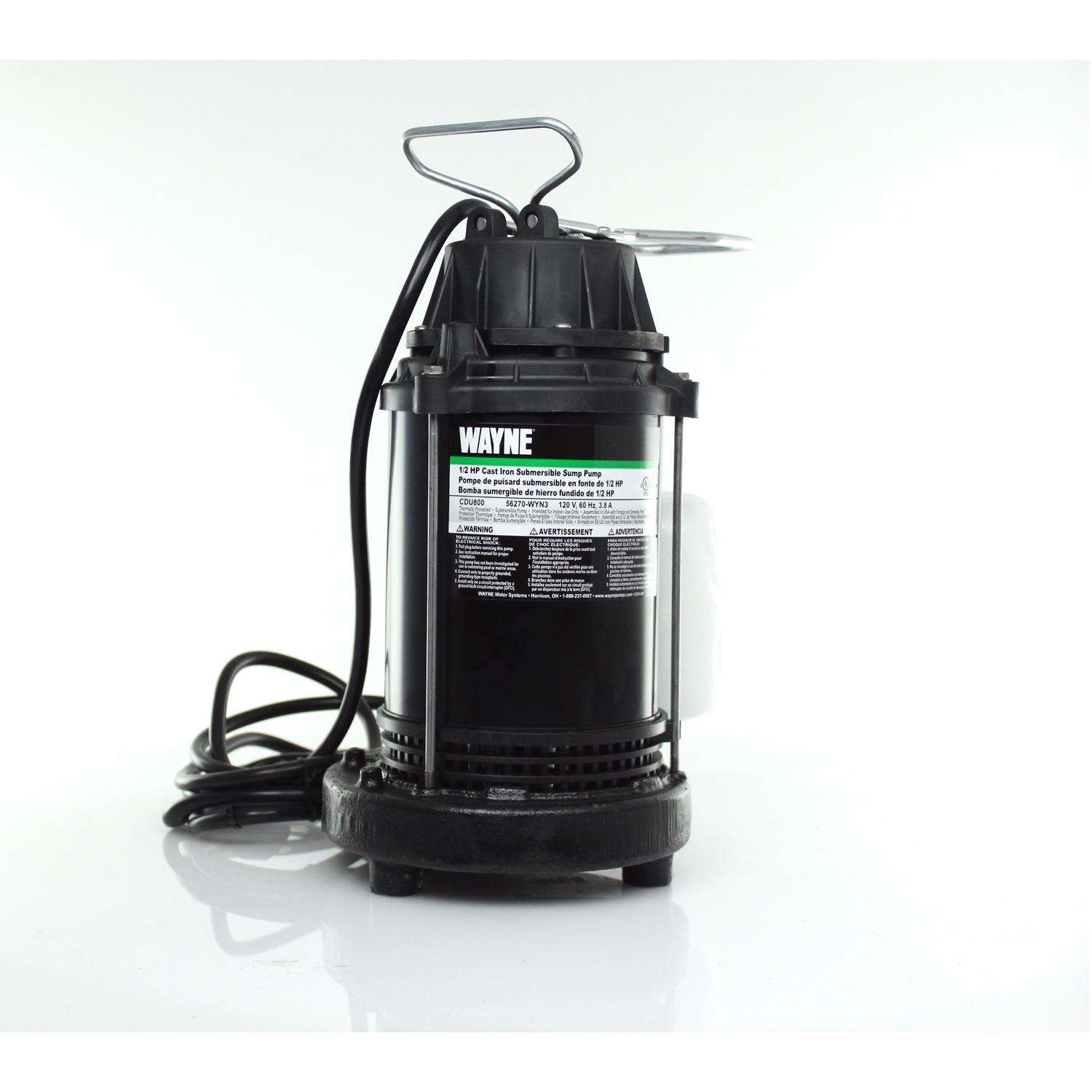

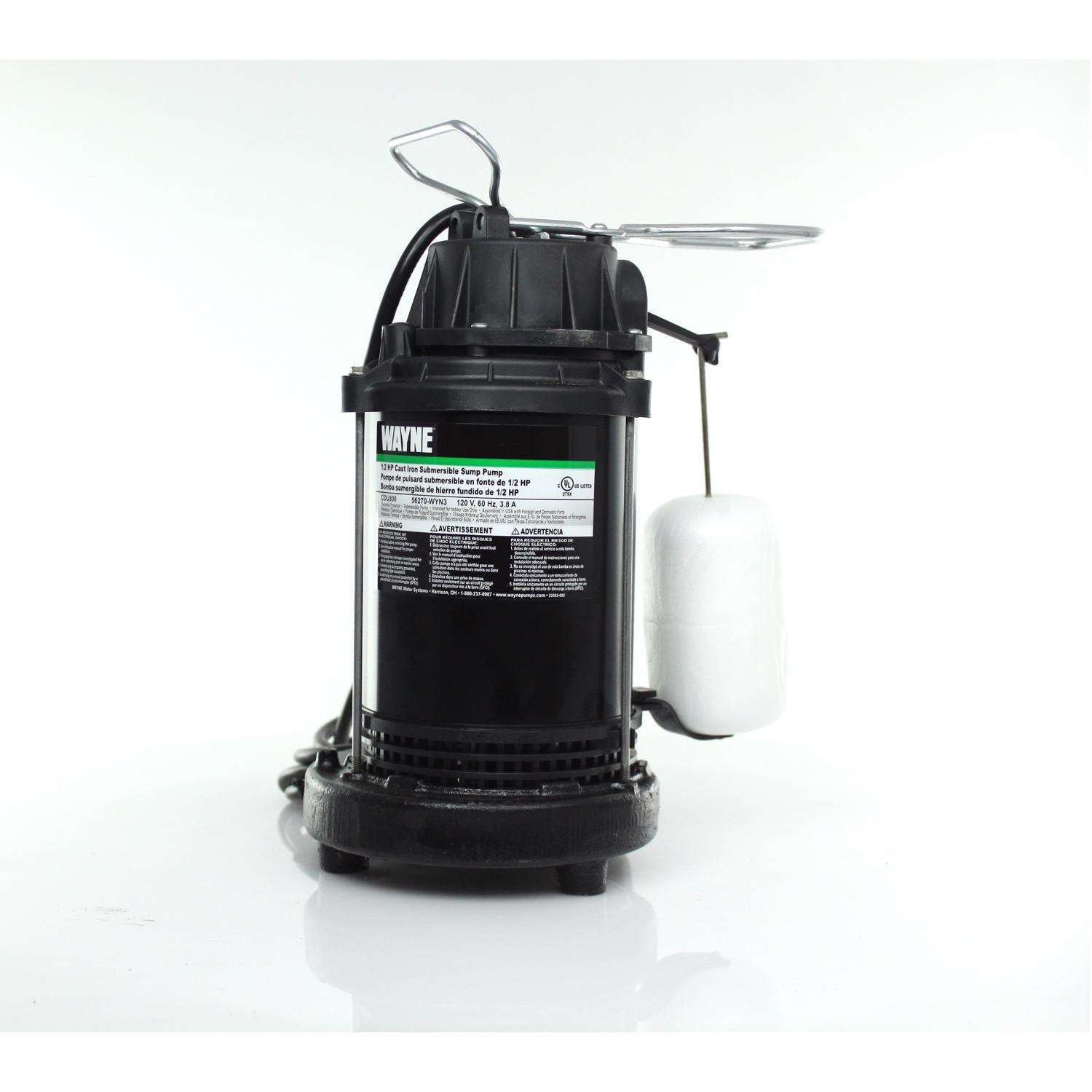

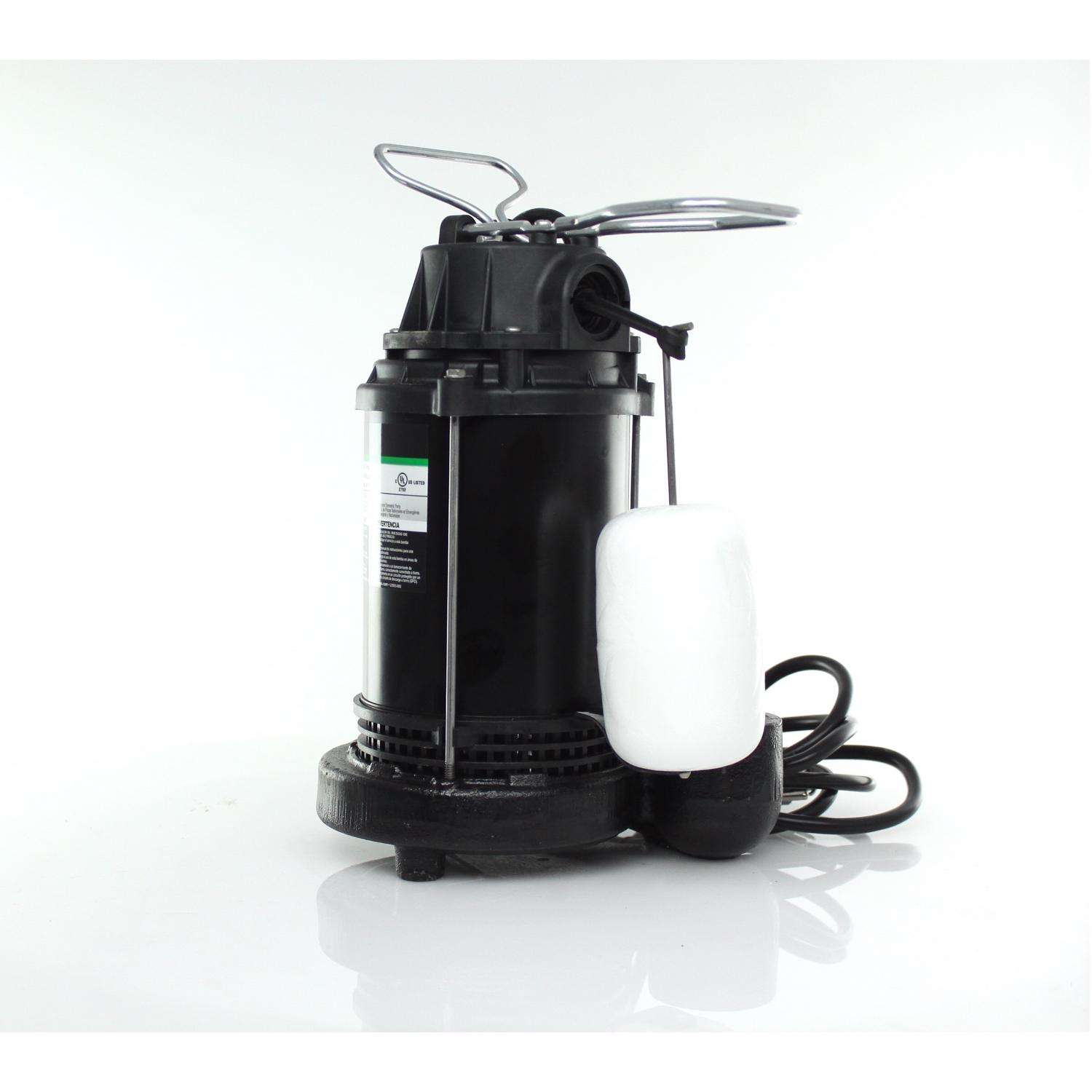

Wayne's CDU800 features a durable cast iron base and epoxy-coated housing for long life and quiet operation. This submersible pump is designed for small sump pits, as small as 11 inch, the CDU series is one of the most popular replacement sump pumps in America. The ceramic mechanical seal assures long life in the most demanding applications and the 1-1/2 inch discharge allows easy installation. This powerful 1/2 HP sump, pumps up to 4200 GPH.
  • Submersible cast iron and coated steel sump pump with vertical float switch
  • Top suction pump design eliminates air locks and clogging from debris in bottom of sump pit
  • Epoxy-coated steel motor housing and rugged, cast iron pump base
  • Fully submersible
  • For use in 11 inch diameter or larger sump basins

Specifications

  • Brand Name: Wayne
  • Product Type: Sump Pump
  • Amps: 10 ampere
  • Cord length: 8 cubic feet
  • Depth: 10 inch
  • Horsepower: 1/2 HP (horsepower)
  • Housing Material: Cast Iron
  • Height: 14 inch
  • Maximum Discharge Flow: 5,100 gph
  • Maximum Temperature: 110 degree Fahrenheit
  • Minimum Temperature: 40 degree Fahrenheit
  • Pump Type: Submersible
  • Pump Switch Type: Vertical Float Switch
  • Brand Name: Wayne
  • Sump Pump Outlet Diameter: 1-1/2 inch
  • Volts: 120 volt
  • Width: 10 inch
  • Powered By: AC
  • Maximum Feet of Head: 20 foot
  • Agency Compliance: CSA and UL
  • Intake: Top Suction
  • Discharge Flow at 10 ft.: 3840 gph
  • Discharge Flow at 20 ft.: 2040 gph
  • Turn On/Off Level: 9 in./4 in.
  • Click here to see the Safety Data Sheets for this product.
