Product Overview

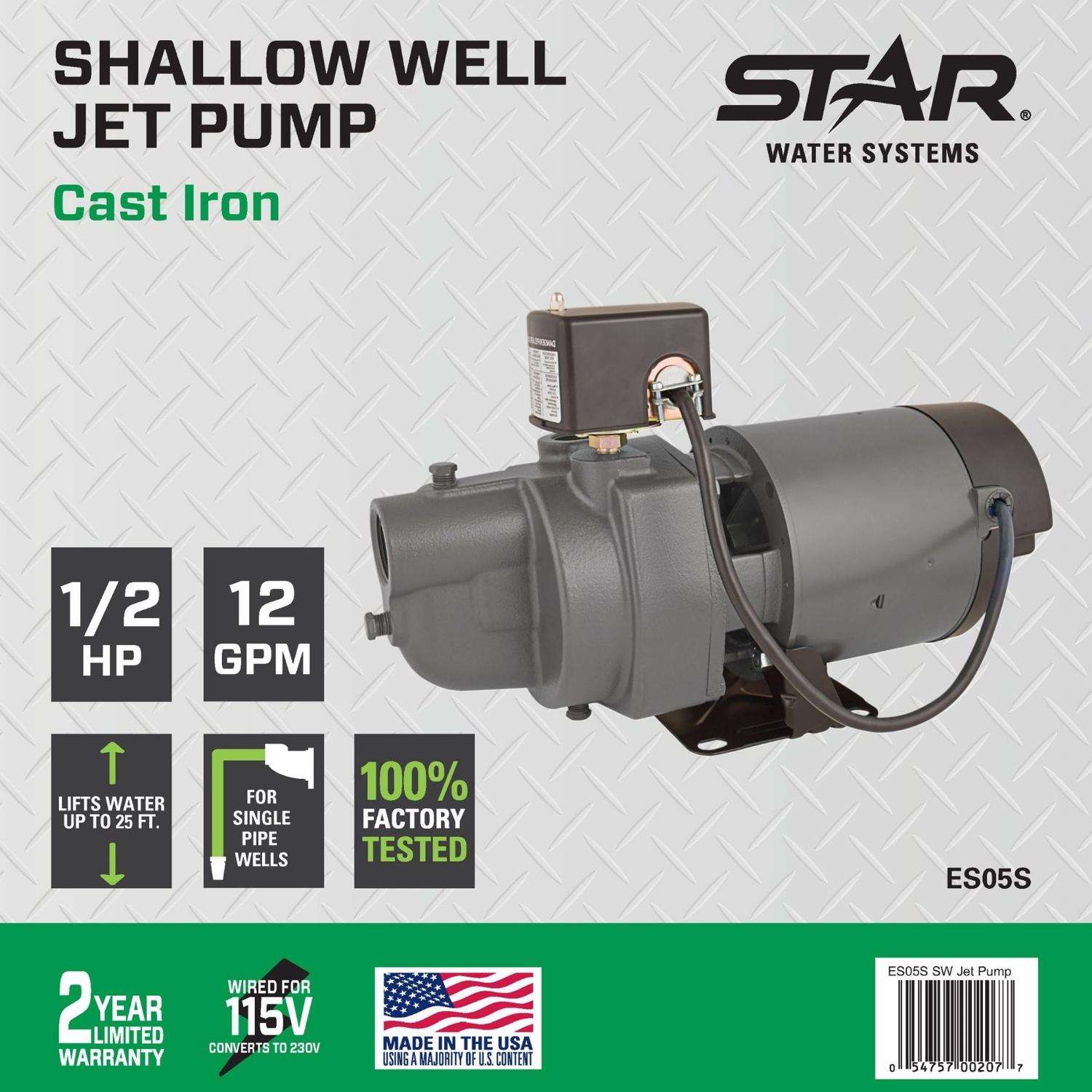

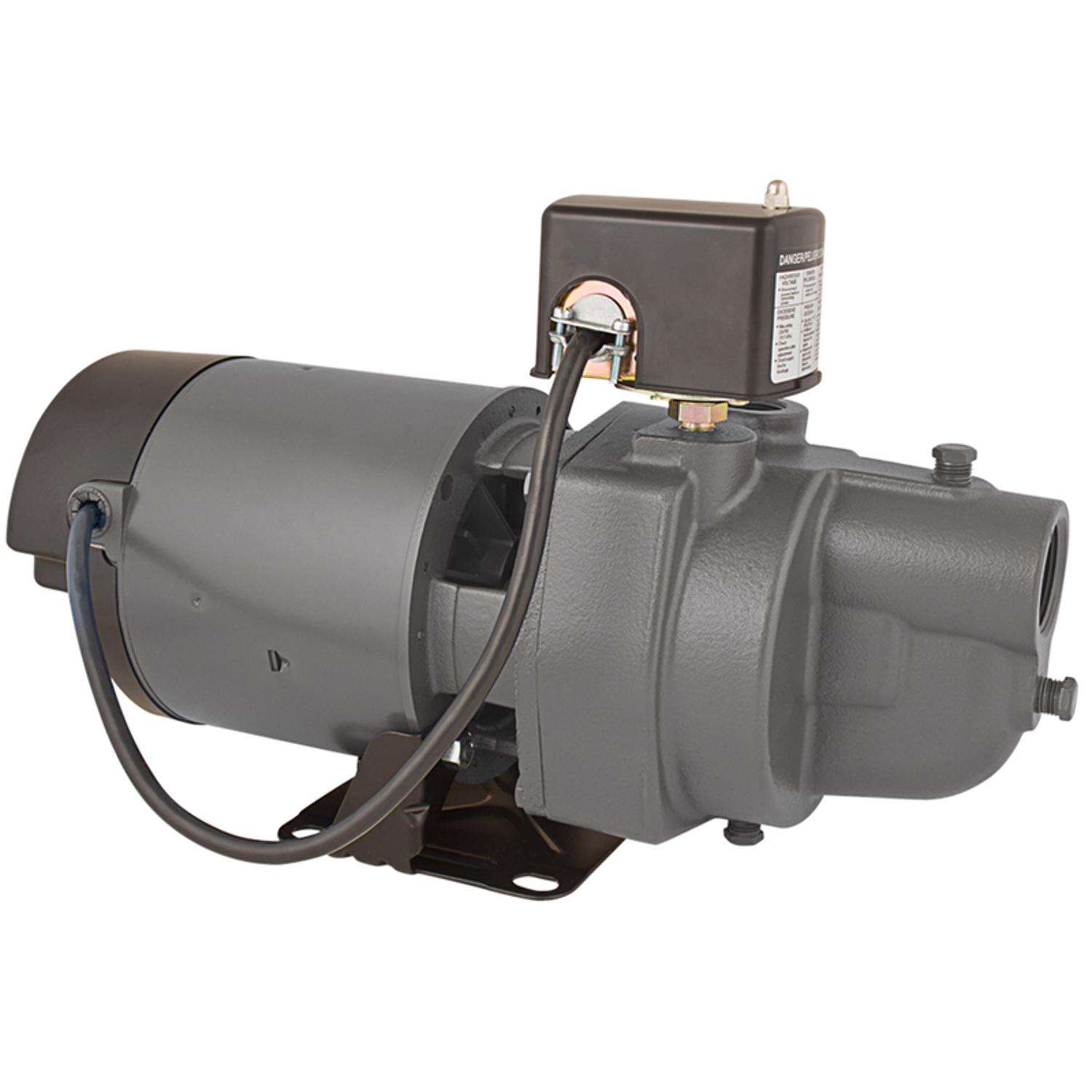

Designed for shallow wells with suction lifts from 0' to 25' (0 to 8 m). These pumps provide capacities up to 930 GPH (3,520 LPH) and pressures up to 50 PSI.
  • What's Included: Pump, Pressure Switch, Ejector
  • Made in the USA using a Majority of US Content
  • Special priming port for easy priming
  • Carbon/ceramic mechanical shaft seal
  • Continuous duty uni-frame 56 frame motor (NEMA J adaptable)
  • Capacitor start motors provide maximum starting torque
  • Easy access drain plug for winterizing
  • Ejector for easy serviceability
  • Thermal overload protects against overheating

Specifications

  • What's Included: Pump, Pressure Switch, Ejector
  • Brand Name: Star Water Systems
  • Product Type: Well Pump
  • Amps: 8.6/4.3 ampere
  • Corrosion Resistant: Yes
  • Depth: 19.5 inch
  • Hardware included: No
  • Horsepower: 1/2 HP (horsepower)
  • Housing Material: Cast Iron
  • Height: 11 inch
  • Maximum Discharge Flow: 930 gph
  • Maximum Temperature: 130 degree Fahrenheit
  • Minimum Temperature: 40 degree Fahrenheit
  • Pump Type: Shallow
  • Pump Switch Type: Pressure
  • Brand Name: Star Water Systems
  • Self Priming: Non-Self Priming
  • Volts: 115/230 volt
  • Warranty: 2 year Limited Parts and Labor
  • With Tank: No
  • Width: 10.6 inch
  • Powered By: AC
  • Maximum Feet of Head: 25 foot
  • Discharge Pipe Size: 1 inch
  • Agency Compliance: CSA and UL
  • Click here to see the Safety Data Sheets for this product.
