Product Overview

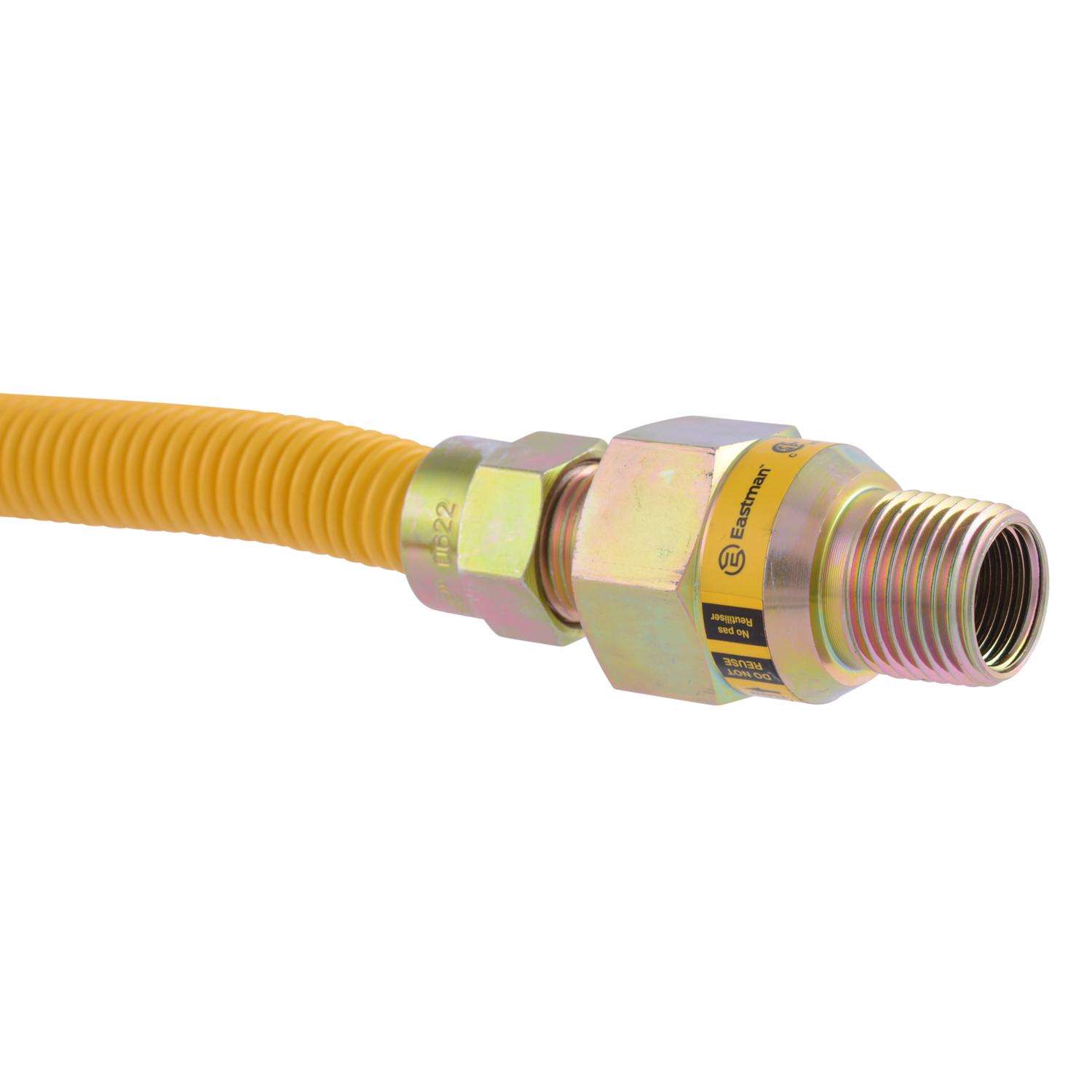

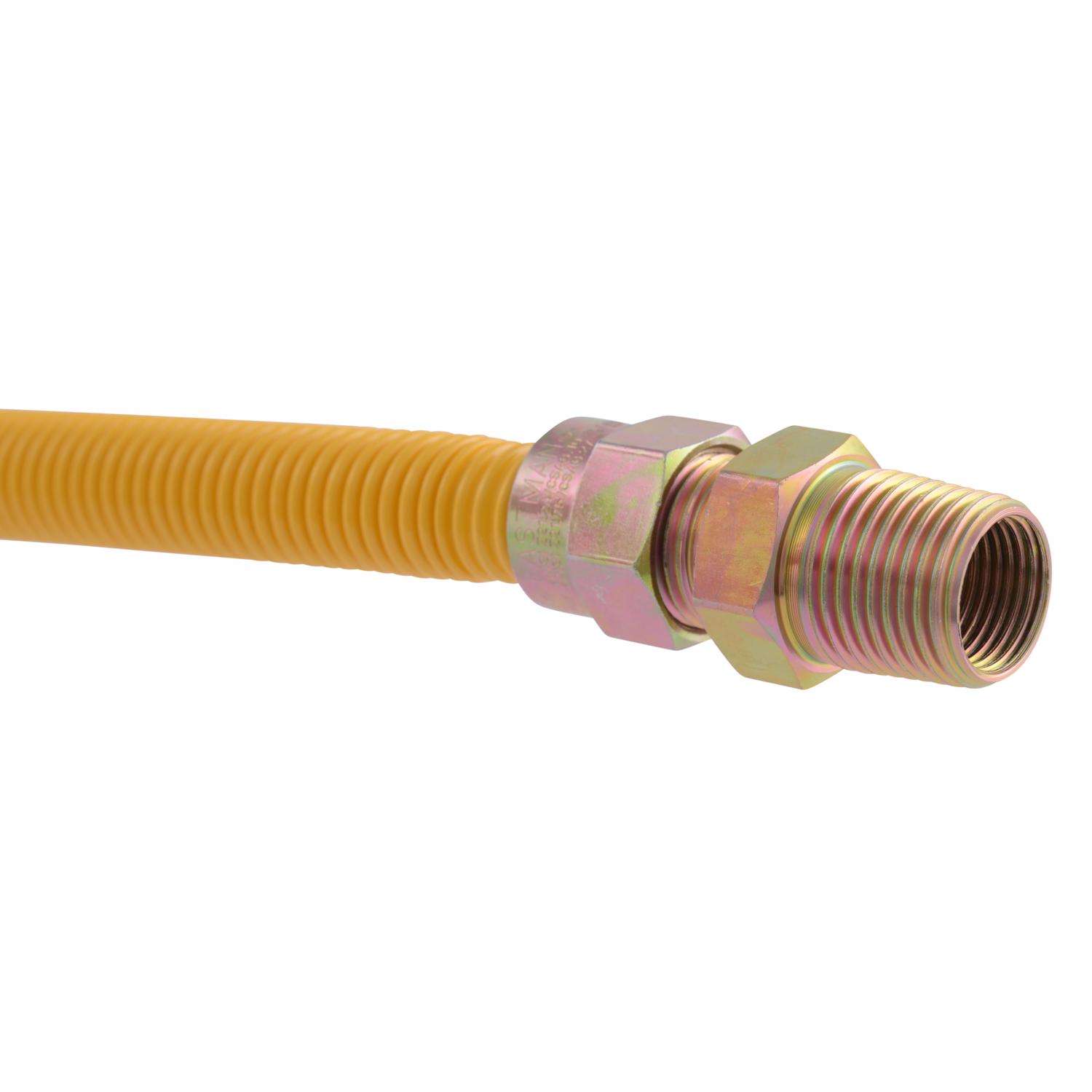

The Eastman 1/2-IN OD gas connector is designed to connect most major brands of water heaters, dryers, and moderate usage appliances to a shut-off valve. The connector is certified for use with most water heaters and dryers with gas ratings up to 60,500 BTUs. This gas connector includes an ArmorBoost EFV (thermal excess flow valve). The ArmorBoost EFV from Eastman is designed to help protect you and your family from catastrophic ruptures or disconnects in your gas line. The ArmorBoost valve immediately restricts gas flow to help protect you from the build-up of flammable gas. The valve will remain activated until the gas line is properly repaired. For added protection, the ArmorBoost EFV features a special fire-safe thermal ring that expands to stop gas flow when extreme temperatures of 350Degree plus are reached. DuraCoat Epoxy Coating provides extra protection from corrosion, chemical stains from common household products, and UV rays and is approved for indoor/outdoor use. includes (1) 48-IN 1/2-IN OD epoxy-coated gas connector, (1) 1/2-IN MIP (Tapped 3/8-IN FIP) fitting, (1) 1/2-IN MIP (Tapped 3/8-IN FIP) ArmorBoost EFV auto shut-off valve.

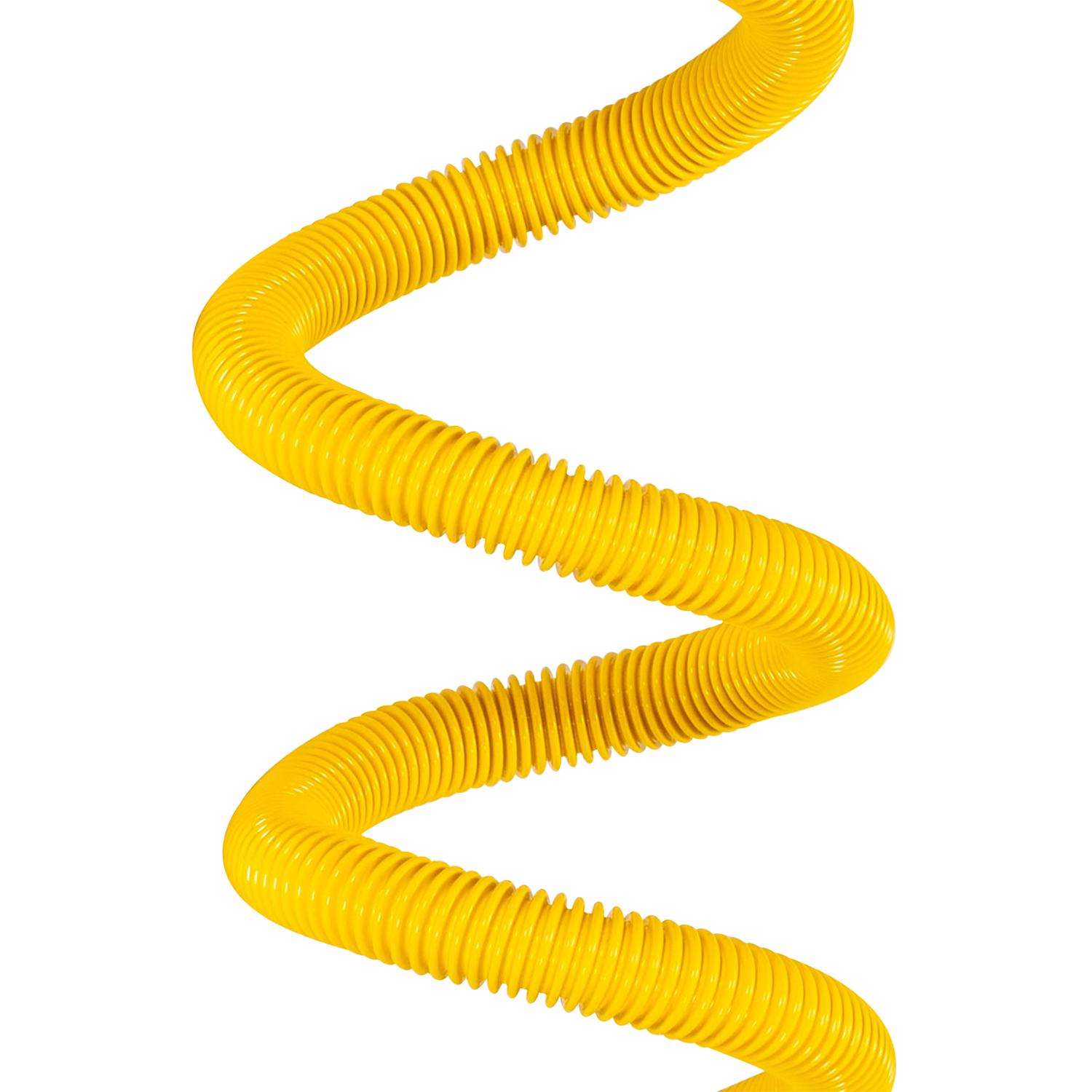

  • Corrugated stainless steel with corrosion resistant coating
  • Use to install 4-burner gas ranges, cook-top, dryers and water heaters
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • For indoor use
  • Temperature rating: -20 deg. F to 150 deg. F
  • CSA certified to ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27

Specifications

  • Brand Name: Eastman
  • Product Type: Gas Connector
  • Application: Water Heater, Range and Dryer
  • Application: Water Heater, Range and Dryer
  • Inlet Diameter: 1/2 inch
  • Length: 48 inch
  • Material: Stainless Steel
  • Outlet Diameter: 1/2 inch
  • Packaging Type: Bagged
  • Brand Name: Eastman
  • Working Pressure: 1/2 pound per square inch
  • Outlet Fitting Type: MIP
  • Inlet Fitting Type: MIP inch
  • Click here to see the Safety Data Sheets for this product.
