Product Overview

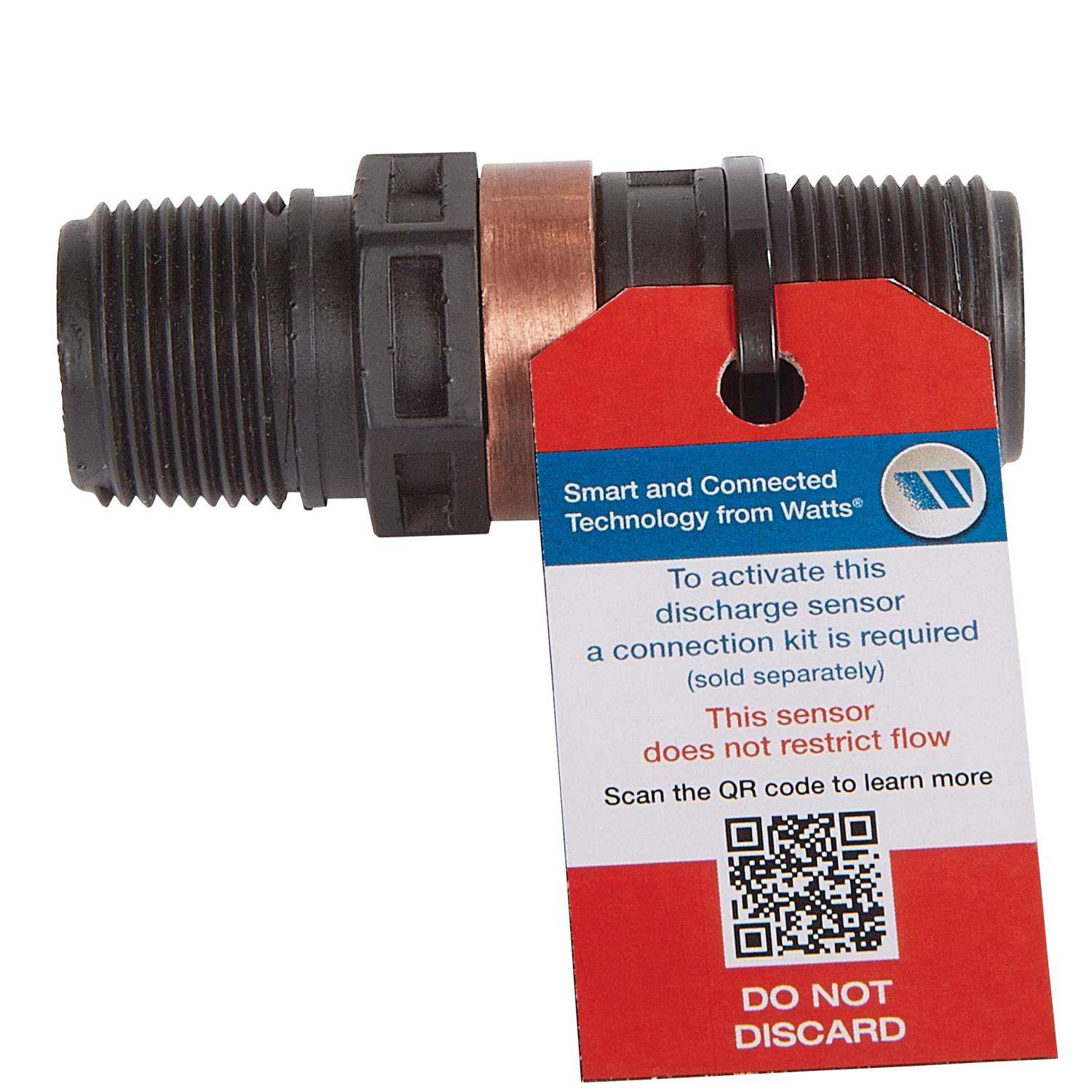

The valve can be used for hot water space heating boiler applications to protect against excessive pressure. It features an iron body with a forged bronze inlet, non-metallic disc-to-metal seating, and a test lever. Includes a nonrestrictive discharge drain line flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. Sensor activation requires the purchase of an activation kit that can be connected to existing building management systems or the Watts Cellular Gateway.
  • NPTF male inlet and female outlet connections
  • Above drain seat to prevent sediment from fouling the valve
  • Non-mechanical seat-to-disc alignment will not stick or freeze
  • Valve is designed for emergency safety relief and shall not be used as an operating control
  • Tamper-resistant bonnet screws
  • Automatic reseating feature
  • Multiple thermostat lengths available
  • Coated thermostat
  • This pressure relief valve has a 30 psi pressure relief set point

Specifications

  • Brand Name: Watts
  • Product Type: Pressure Relief Valve
  • Adjustable: No
  • End 1 Size: 3/4 inch
  • End 2 Size: 3/4 inch
  • End 1 Type: FIP
  • End 2 Type: FIP
  • Maximum Pressure: 75 pound per square inch
  • Maximum Temperature: 210 degree Fahrenheit
  • Number in Package: 1 piece
  • Packaging Type: BOXED
  • Brand Name: Watts
  • Body Material: Bronze
  • Lead Content: Leaded
  • Click here to see the Safety Data Sheets for this product.
