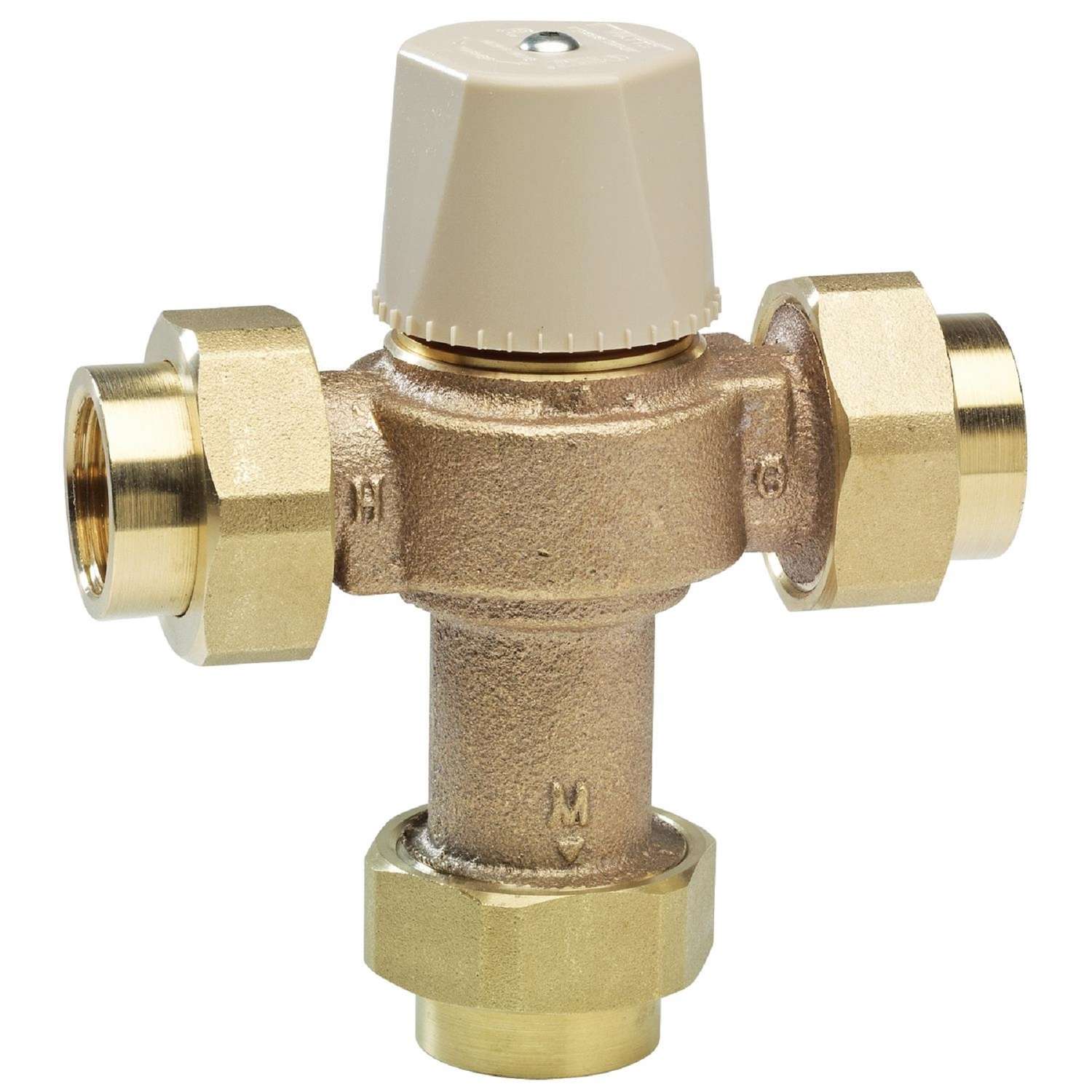

Watts 3/4 in. FNPT Brass Mixing Valve 3/4 in. FNPT 1 pk

Series LFMMV Thermostatic Mixing Valves maintain and limit mixed hot water to a desired, selectable temperature. The LFMMV series can be set to any temperature between 80 degrees F. and 120 degrees F. with flow rates as low as 0.5 gpm and as high as 12 gpm. This mixing valve series is listed under ASSE 1017 for valves used in hot water source applications, ASSE 1069 for single-pipe, tempered water applications and ASSE 1070 for valves used in individual or multiple fixture applications. The LFMMV feature lead free construction to comply with Lead Free installation requirements. The superior flow characteristics of this valve provide accurate temperature control, plus or minus 3 degrees F, with low pressure drop across the rated flow range. As an added feature, the LFMMV-M1 series incorporates integral inlet filter washers and check valves in both the hot and cold water inlets to protect against cross flow.
