Product Overview

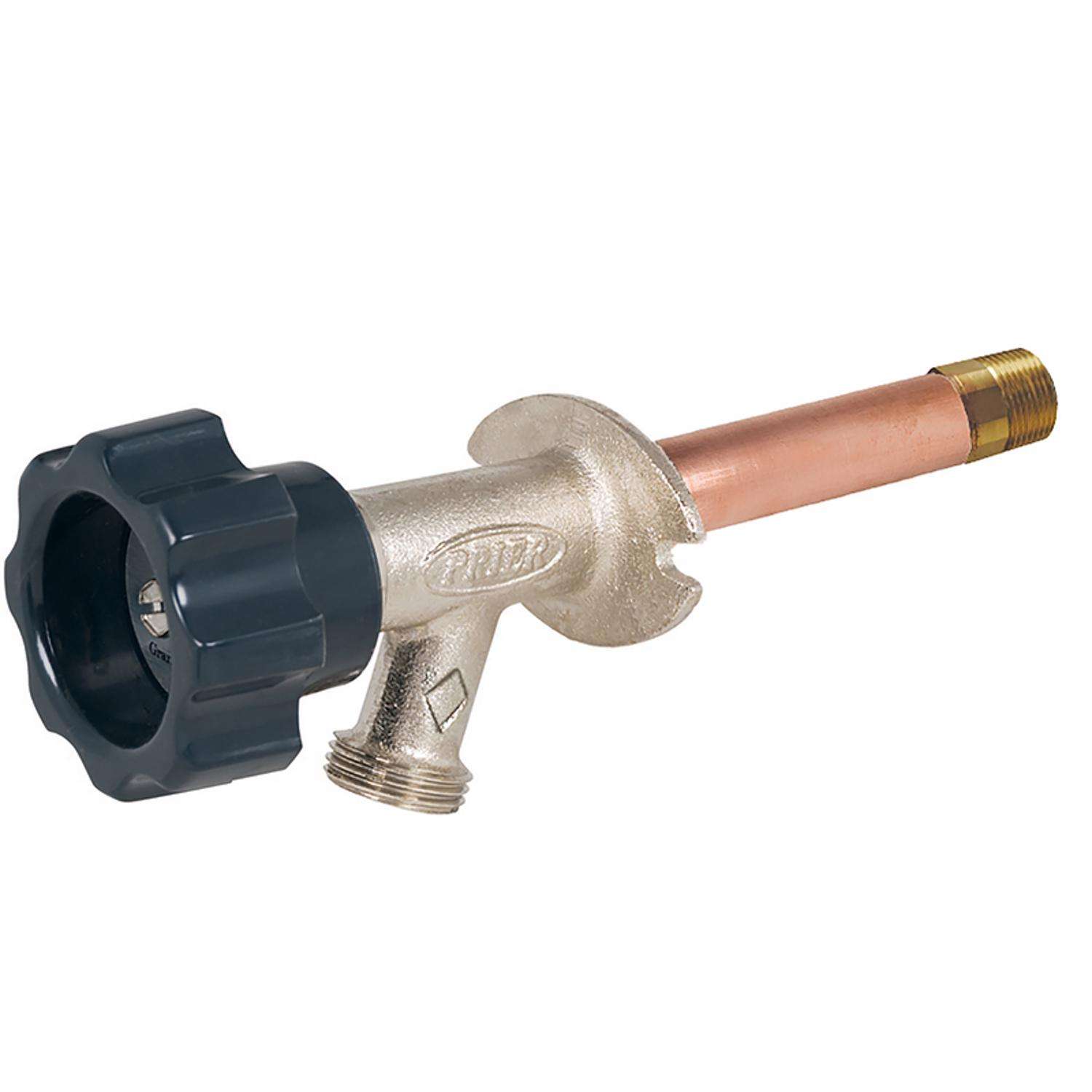

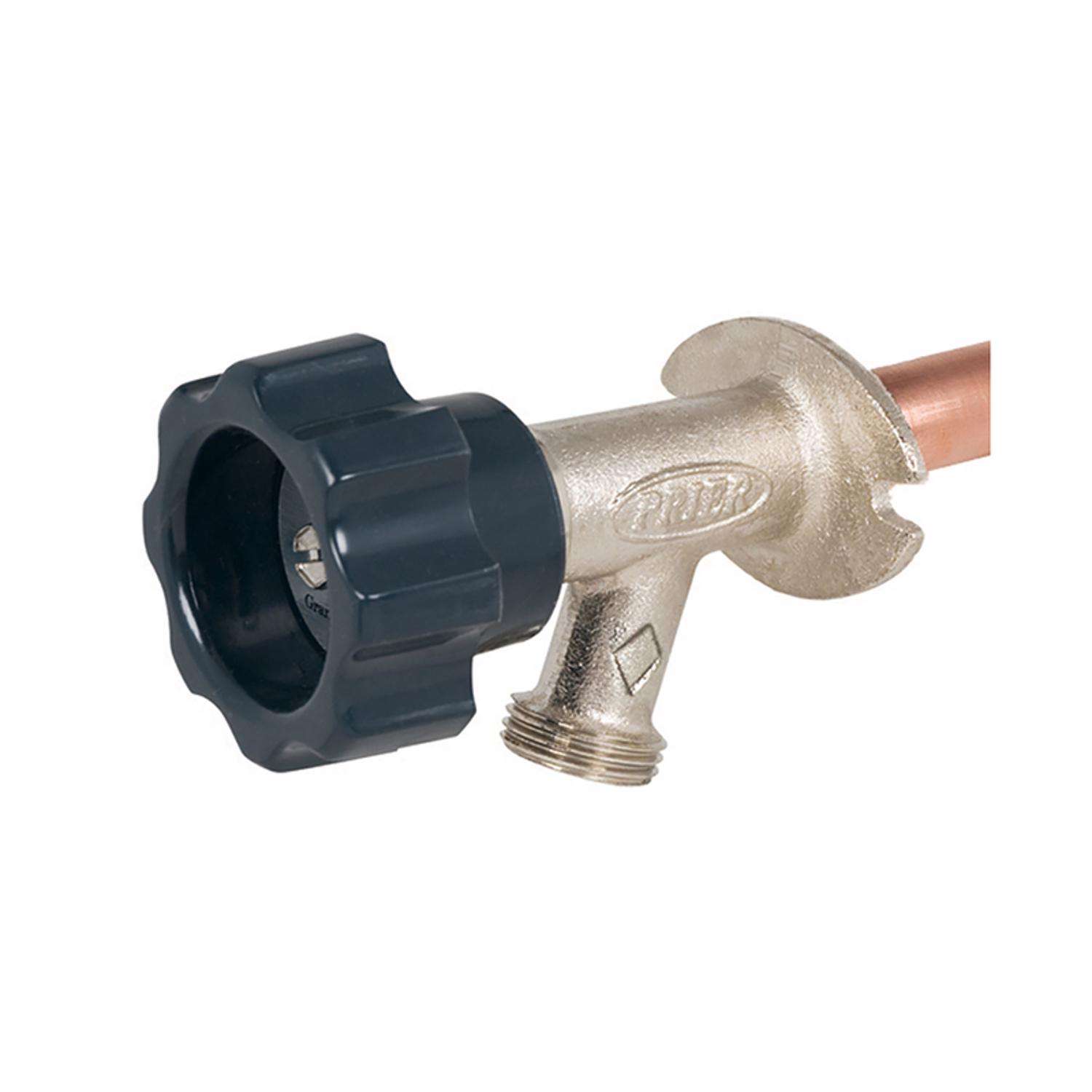

Prier 300 Diamond Series provides a year round source of water to areas of structures that are subject to freezing temperatures. The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing. The Prier 300 Series is one of the original freezeless hydrant designs and is installed throughout the United States. It is available from stock in lengths from Close Coupled to 14 inch and four different inlets.
  • Freezeless Wall Hydrant features 3/4" MIP x 1/2 FIP inlet with 12" insertion length
  • Integral cast backflange with wide screw holes
  • Solid brass body and seat; durable ACME threads secure stem at seat end
  • Satin nickel plated body maintains attractive finish
  • Easy grip polycarbonate operating handle with stainless steel handle screw
  • Standard OO size seat washer & AFG teflon with graphite packing for easy maintenance
  • Spout aligning mark for easy installation and field repairable with no special tools required

Specifications

  • Brand Name: Prier
  • Product Type: Freezeless Wall Faucet
  • End 1 Size: 3/4 inch
  • End 1 Type: MPT
  • End 2 Type: FPT
  • Finish: Satin
  • Flow Rate: 8 Gallons per Minute
  • Frost-Proof: Yes
  • Handle Type: Round
  • Length: 12 inch
  • Maximum Pressure: 125 pound per square inch
  • Maximum Temperature: 125 degree Fahrenheit
  • Material: Brass
  • Packaging Type: BOXED
  • Brand Name: Prier
  • Turn Type: Multiturn
  • Anti-Siphon: No
