Product Overview

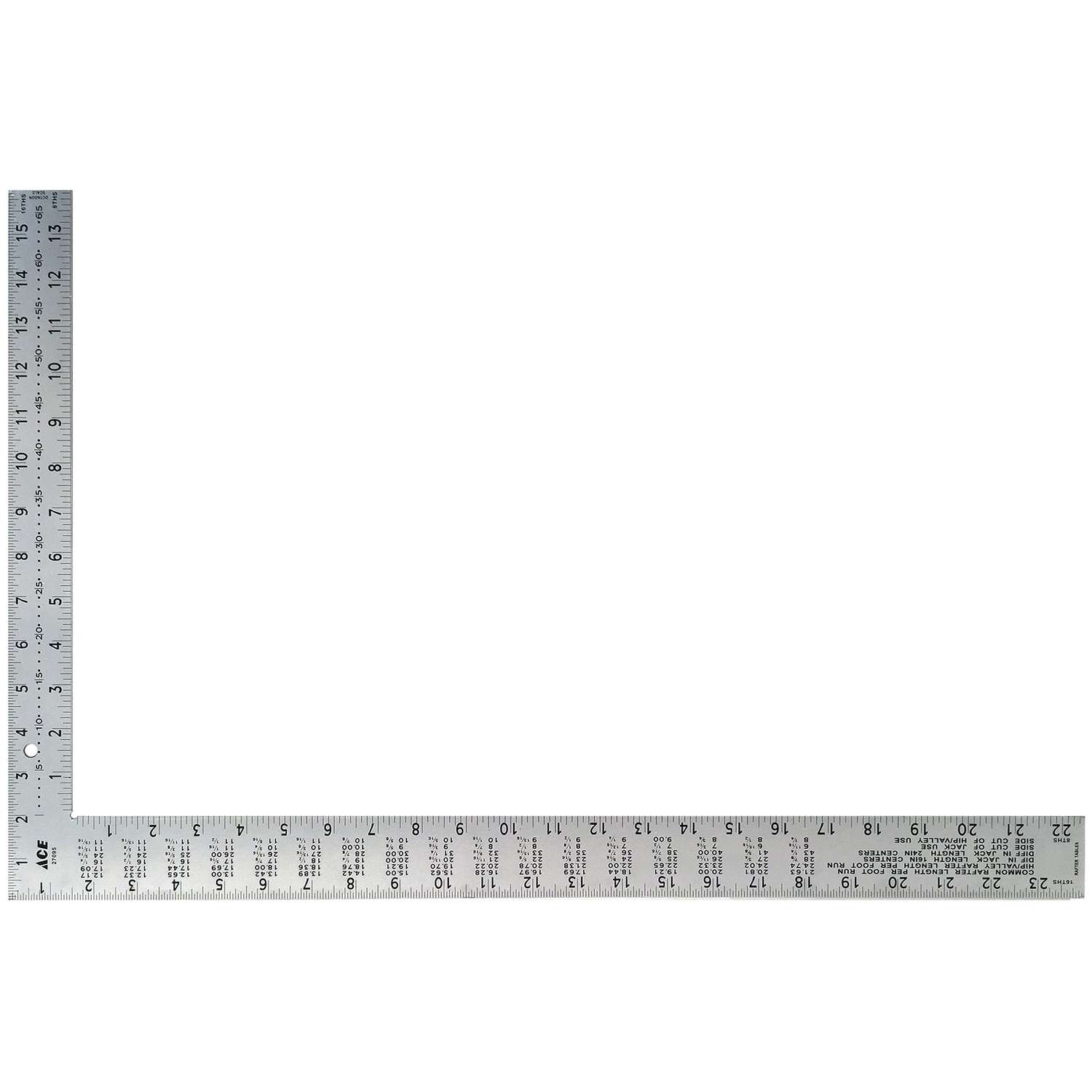

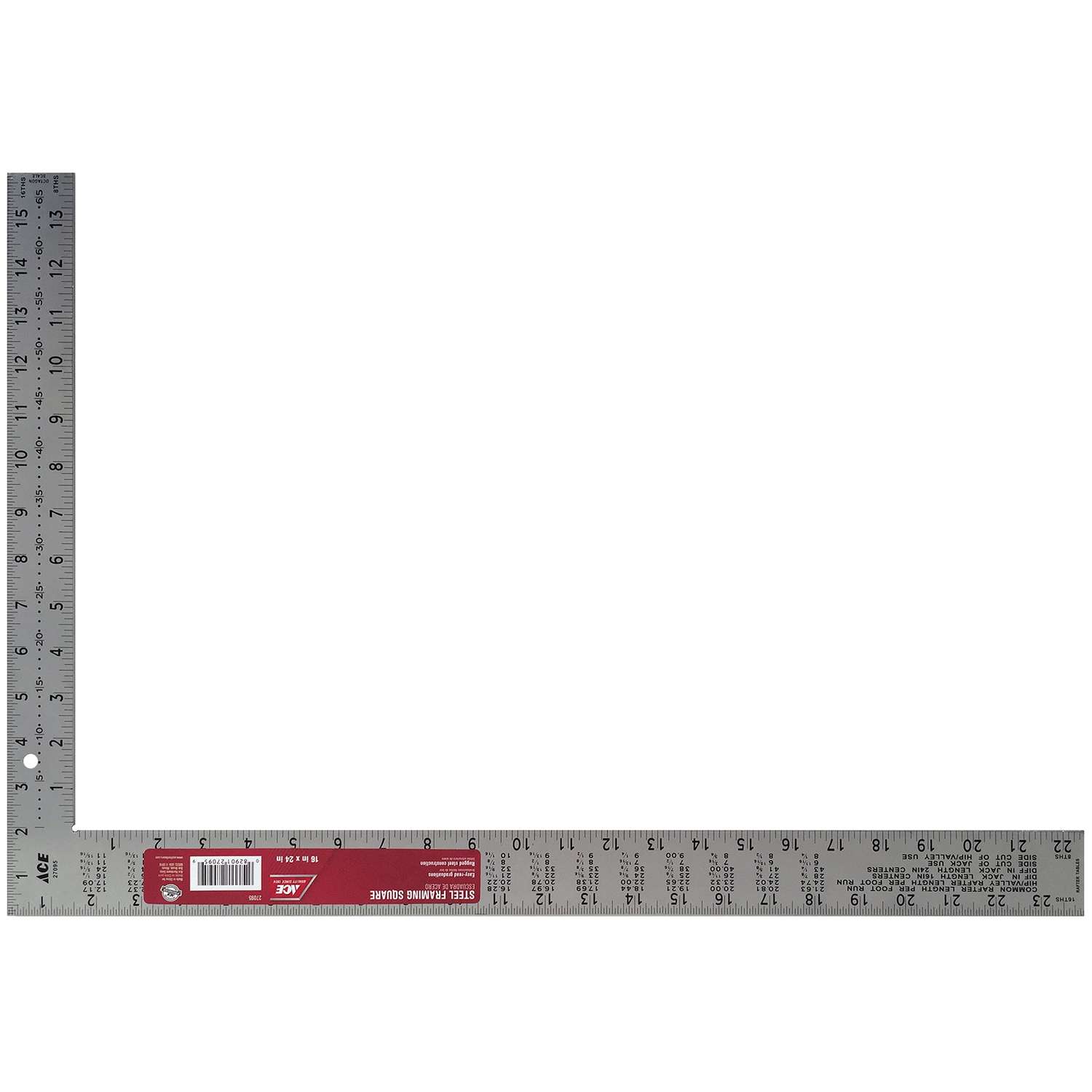

Johnson's 16" x 24" framing square is everything a builder needs to get the work done quickly, efficiently and accurately. It includes graduations in 1/8", 1/10", 1/12" and 1/16" as well as board foot tables and rafter tables, making it useful for any number of different jobs. And those graduations and tables are permanently stamped so you'll never worry about them fading or wearing. This framing square is constructed of steel with a urethane anti-rust coating that is made to last.
  • 24 in. x 2 in. body, 16 in. x 1-1/2 in. tongue, 1/8 in. thick
  • Steel body with urethane anti-rust coating
  • Permanently stamped graduations and numbers
  • Graduations measure in 1/8 in., 1/10 in., 1/12 in., 1/16 in.
  • Includes board foot tables and rafter tables

Specifications

  • Brand Name: Ace
  • Product Type: Framing Square
  • Adjustable: No
  • Color: Silver
  • Height: 16 inch
  • Length: 24 inch
  • Material: Steel
  • Number in Package: 1 piece
  • Brand Name: ACE
  • Width: 9/100 inch
