Product Overview

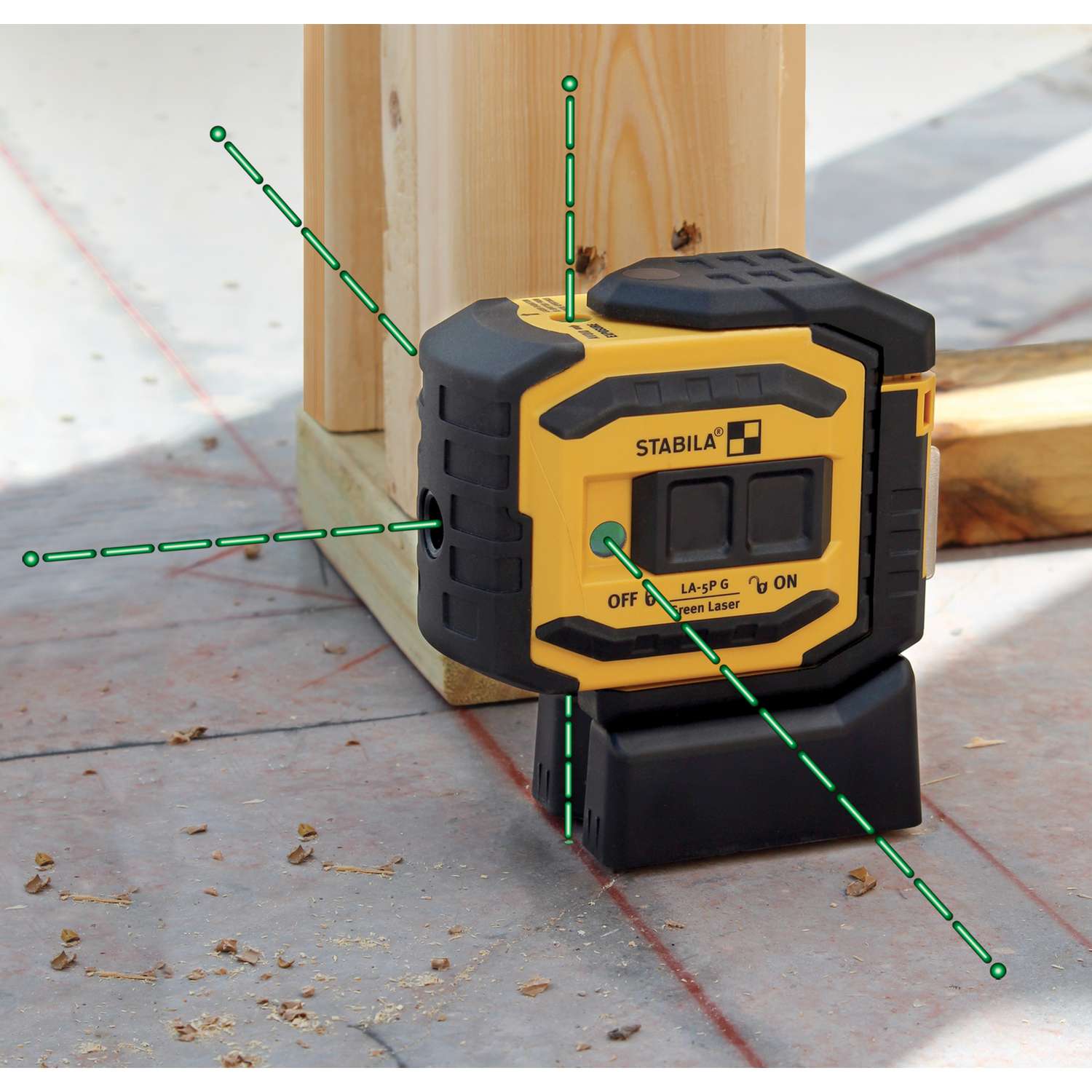

This pouch laser is strong yet light. A mechanical on/off switch and pendulum lock provide enhanced reliability. The LA-5P G has 5 easy to see bright and tight laser dots. When compared to traditional methods of 3-4-5 squaring, establishing short range square layouts with the LA-5P G is more effective. Builders with interior wall applications will appreciate that they can work directly against wood plates and metal track. The LA-5P G is great for positioning interior and partition walls up to 50 ft. and for transferring layout points from floor to ceiling.

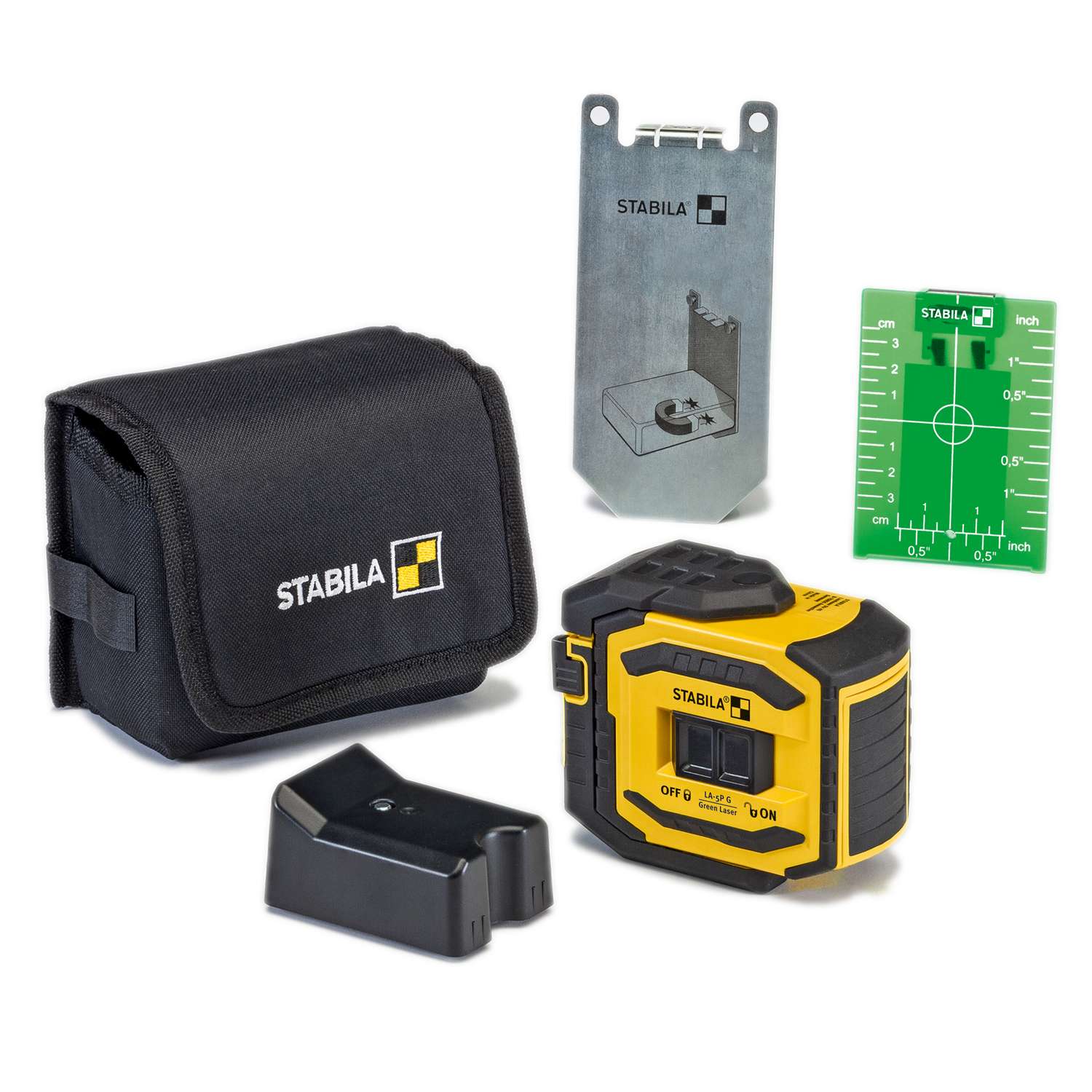

  • What's Included: LA-5P G Laser, framing base (#07471), target Plate, wall bracket, carrying belt pouch
  • Transfer plumb points from floor to ceiling and layout right angles/square.

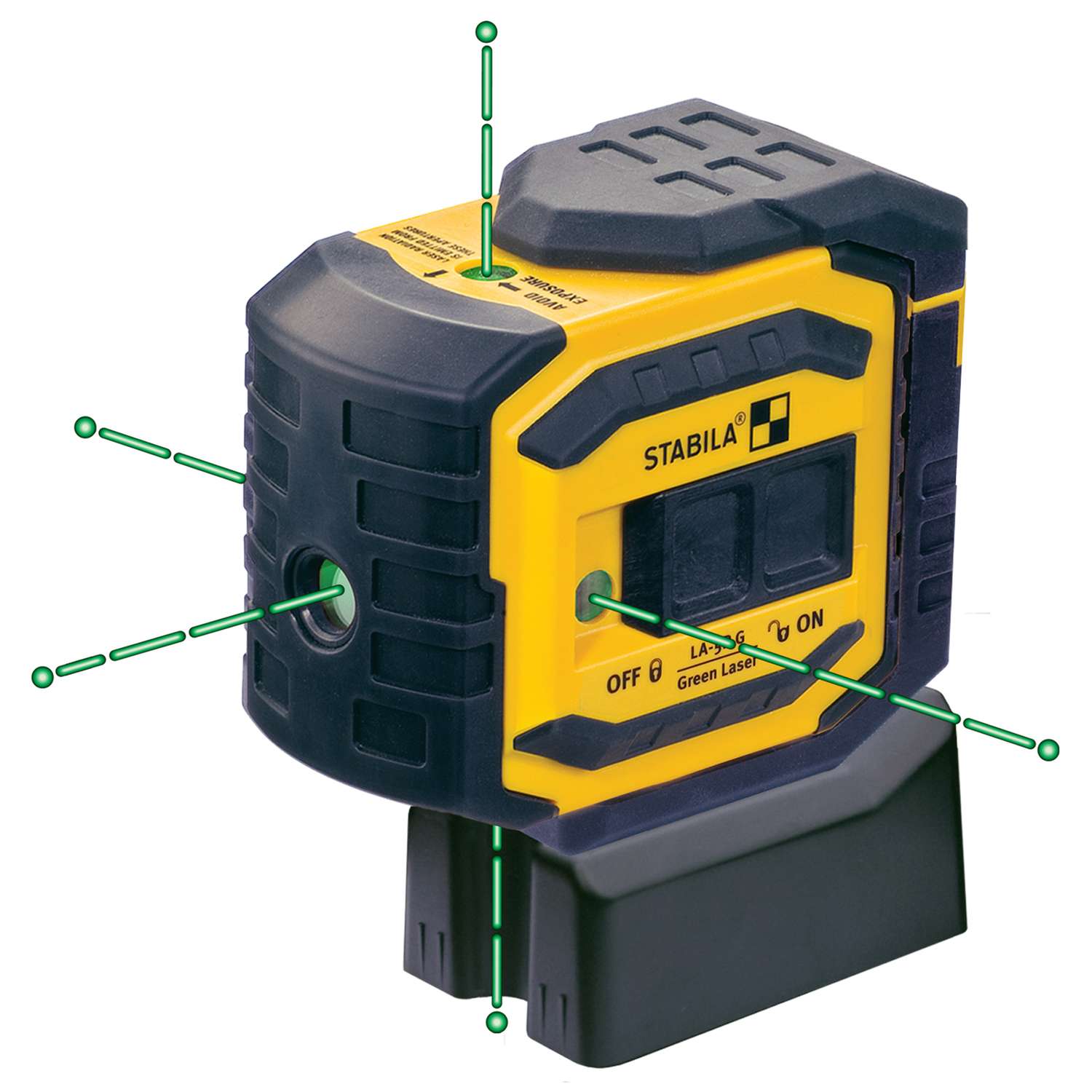

  • 5 crisp green laser dots clearly visible outside up to 40 and inside up to 60.
  • With 90 degree points, two right angles are created.

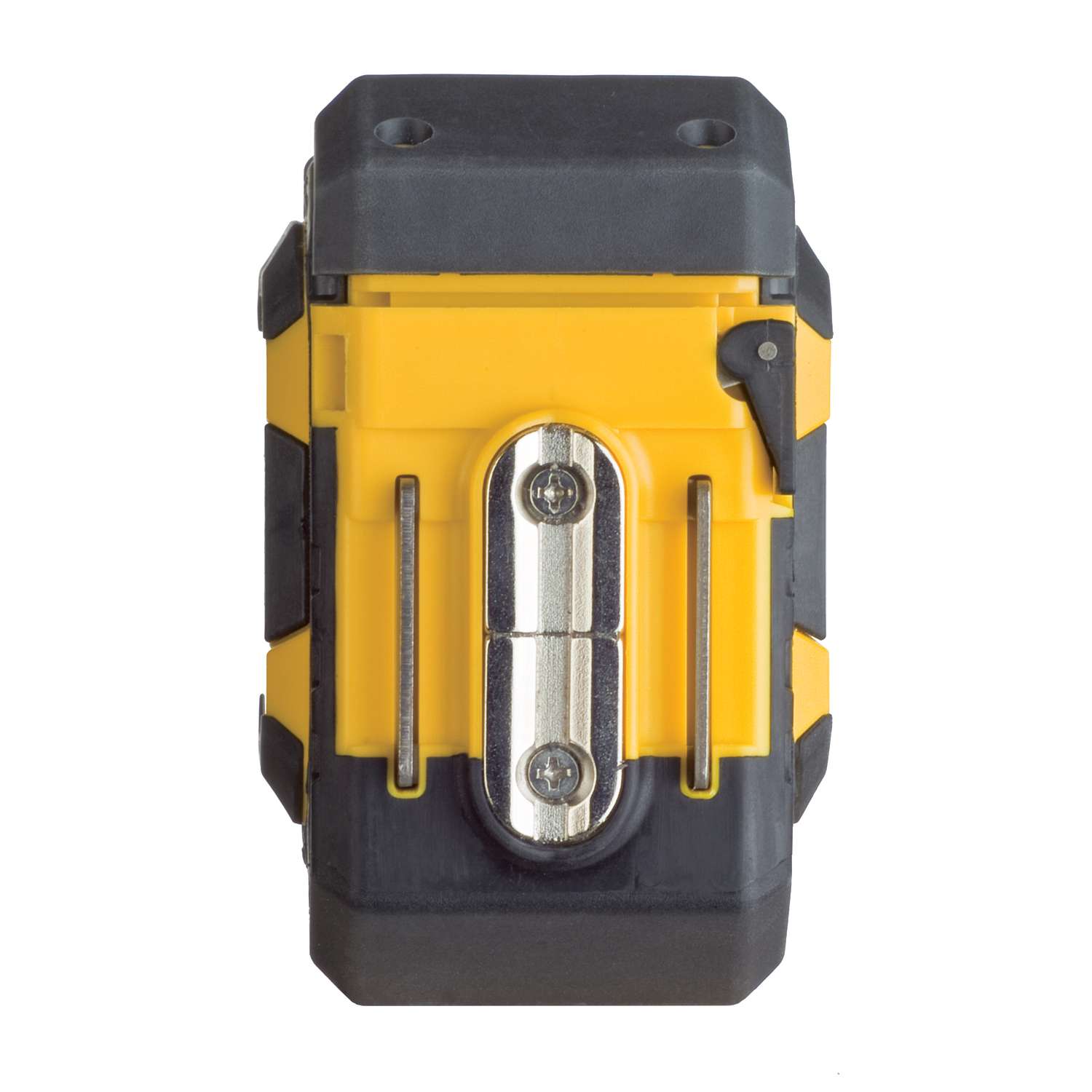

  • 1/4 in. thread tripod mount, v-groove magnet for metal surfaces, fasten to walls with wall bracket (included).
  • Framing base allows fast alignment for standing up panelized walls.
  • Laser rotates inside housing for built-in protection.
  • Up dot accuracy tolerance: Will not exceed 3/32 in. at 30 ft.
  • Down dot accuracy tolerance: Will not exceed 1/8 in. at 30 ft.
  • Level dot accuracy tolerance: Will not exceed 3/32 in. at 30 ft.
  • Square dot accuracy tolerance: Will not exceed 1/16 in. at 30 ft.

Specifications

  • What's Included: LA-5P G Laser, framing base (#07471), target Plate, wall bracket, carrying belt pouch
  • Brand Name: STABILA
  • Product Type: Laser Level Kit
  • Accuracy: 1/8 inch
  • Accessories Included: Yes
  • Batteries Included: Yes
  • Battery Size: AA Battery
  • Color: Yellow
  • Length: 4 inch
  • Material: Plastic/Rubber
  • Number of Batteries Required: 3 Batteries
  • Number of Beams: 5 beam
  • Number in Package: 5 piece
  • Range: 50 foot
  • Brand Name: STABILA
  • Self Leveling: Yes
  • Style: LA-5P G
  • Waterproof: No
  • Width: 4.7 inch
  • Indoor or Outdoor: Indoor and Outdoor
