Product Overview

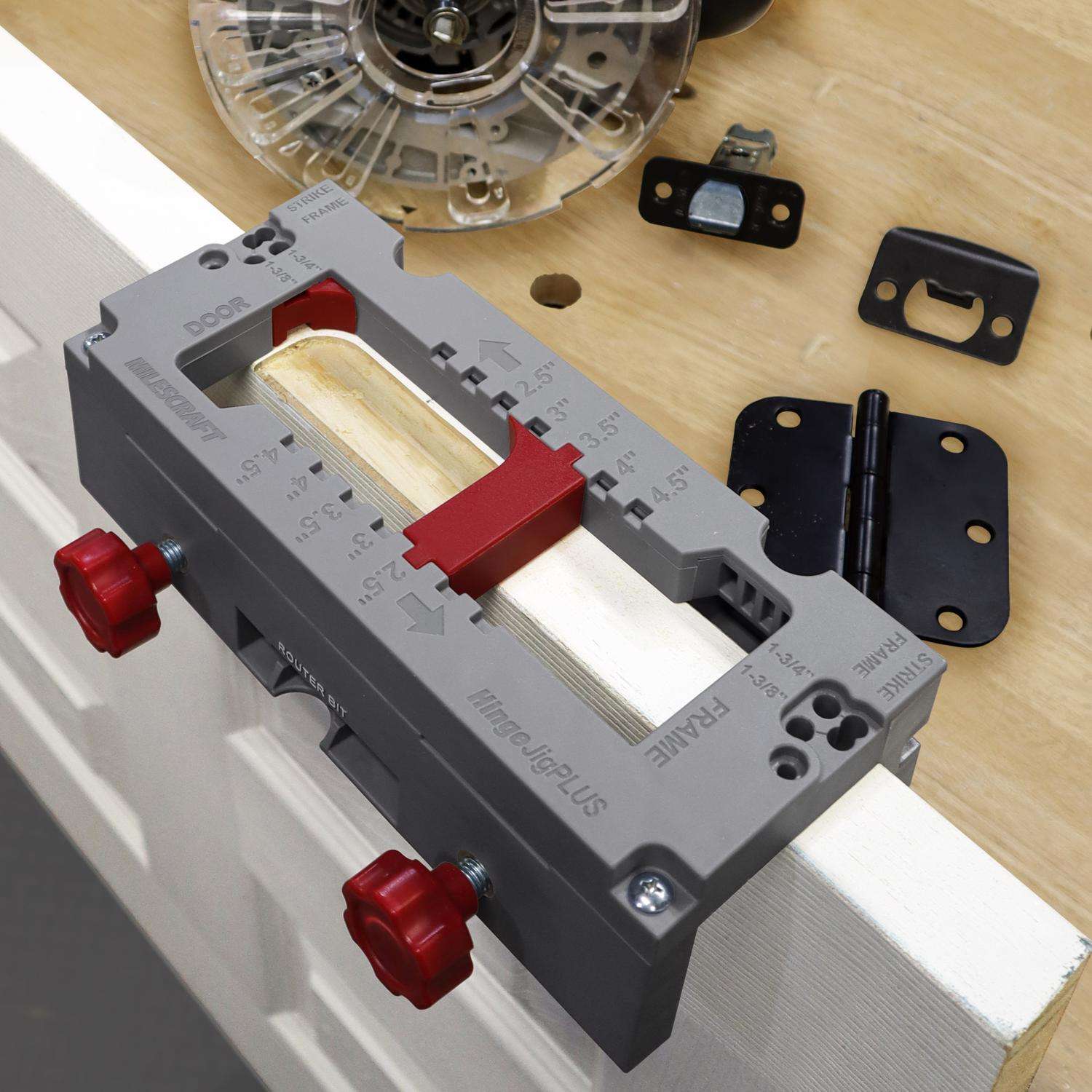

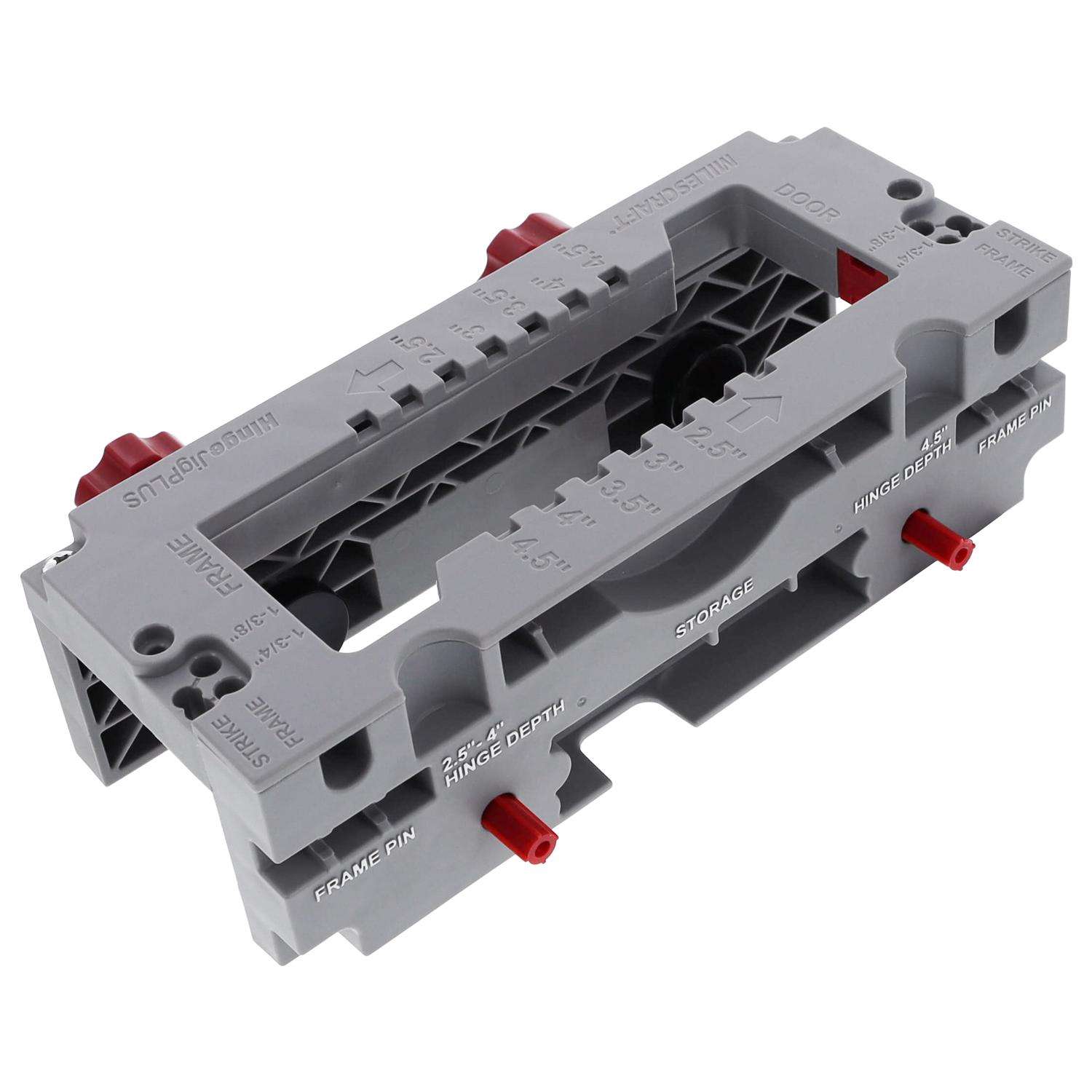

The HingeJig Plus, by Milescraft, is a one-stop solution for door installation work. The jig routs and installs door and jamb / frame hinges, latches, and strike plate mortises quickly and accurately. The included bonus PinDoctor even assists in removing your old door. The dual-clamping design of the HingeJig Plus mounts quickly and holds firm to ensure cuts are clean and accurate. No need for screws or nails which can damage your door. Rout perfect hinge mortises in 2.5”, 3”, 3.5”, 4” and 4.5” sizing on both a door, or the frame! For Doors – Set appropriate backset plug setting and insert the adjustable spacer into the correct sizing slot facing the Door cavity, clamp, and route. On Frames, the HingeJigPLUS is reconfigured to clamp or mount to new or existing jambs and frames using the FRAME cavity. Included offset pins make sure that the spacing stays accurate and the width of the hinge mortise is just right. Built-in depth setting guides to ensure proper routing depth on smaller or larger hinges. The design of the HingeJigPLUS also makes it easy to change between 1/4” and 5/8” radius mortises. Flip the radius inserts and spacer to the curved side for 5/8” hinges, or the flat side for 1/4” hinges. The HingeJig Plus includes drop in templates to rout latch plate and strike mortises. Simply remove the adjustable spacer, set the backset plug to latch, and drop in a template The strike template is used when the jig is in the Frame position, and uses the index pins to set correct distance.

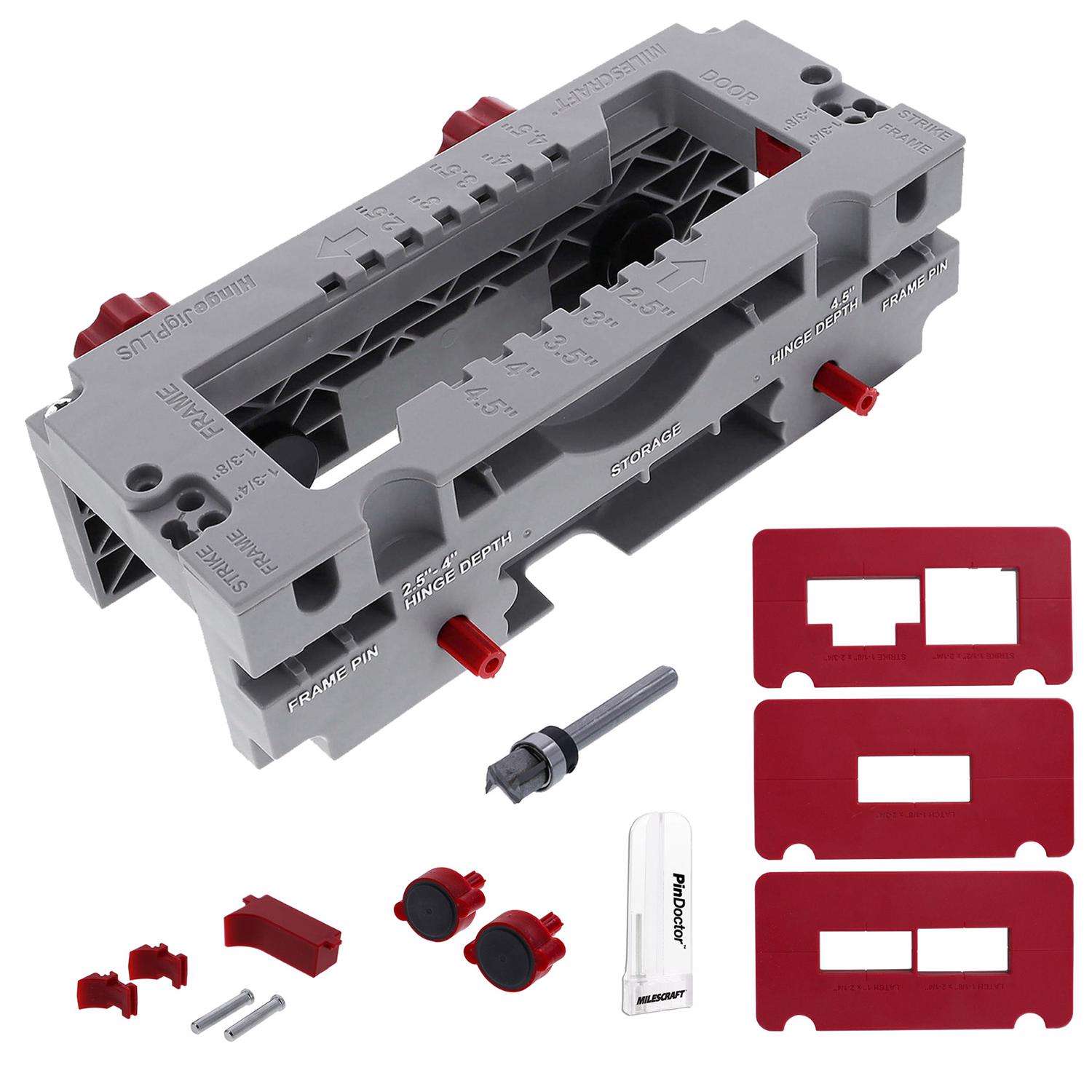

  • What's Included: Jig Main Body, (2) Built-in Clamps, Bonus Pin Doctor, Adjustable Hinge Spacer, 12mm Router bit with Bearing, (2) Corner Radius Inserts, (2) Adjustable Backset Plugs, (2) x Frame/Jamb Indexing Pins, (2) Latch Templates, Strike Plate Template
  • Padded, dual self-clamping design of door hinge installation jig sets up quickly and prevents damages to doors caused by mounting screws or nails
  • Adjustable settings allow door hinge jig to be used on all standard size 1-3/8 inch and 1-3/4 inch thick doors
  • Reconfigure HingeJig Plus to rout hinges and strike plates on jamb / frame
  • Cut professional hinge mortises with 1/4 inch, 5/8 inch or square corners (chisel Required)
  • Door hinge installation kit routs hinge mortises for 2-1/2 inch to 4-1/2 inch door hinges

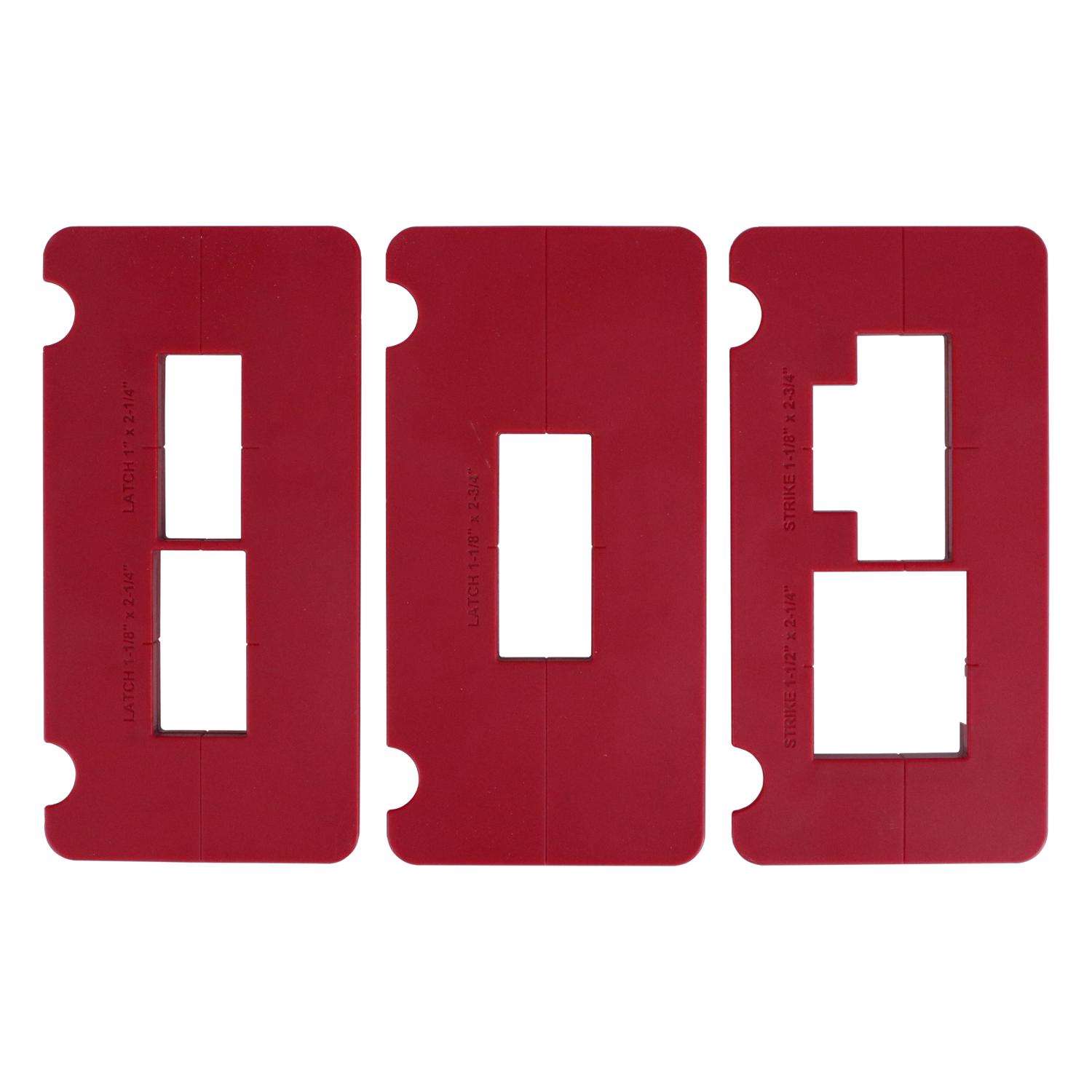

  • Door hinge installation kit includes additional templates to rout common door latch mortises sized 1 inch x 2-1/4 inch, 1-1/8 inch x 2-1/4 inch, and 1-1/8 inch x 2-3/4 inch

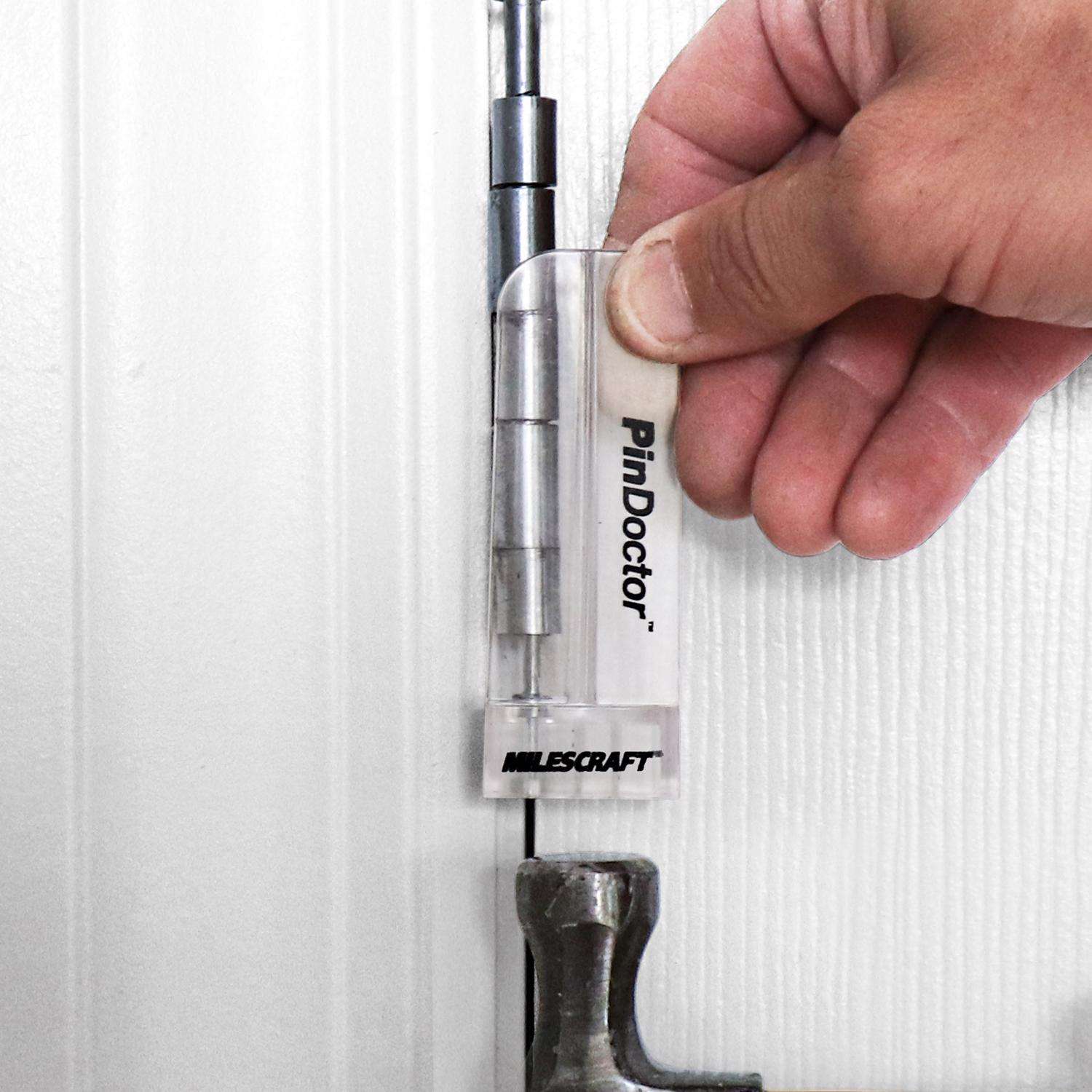

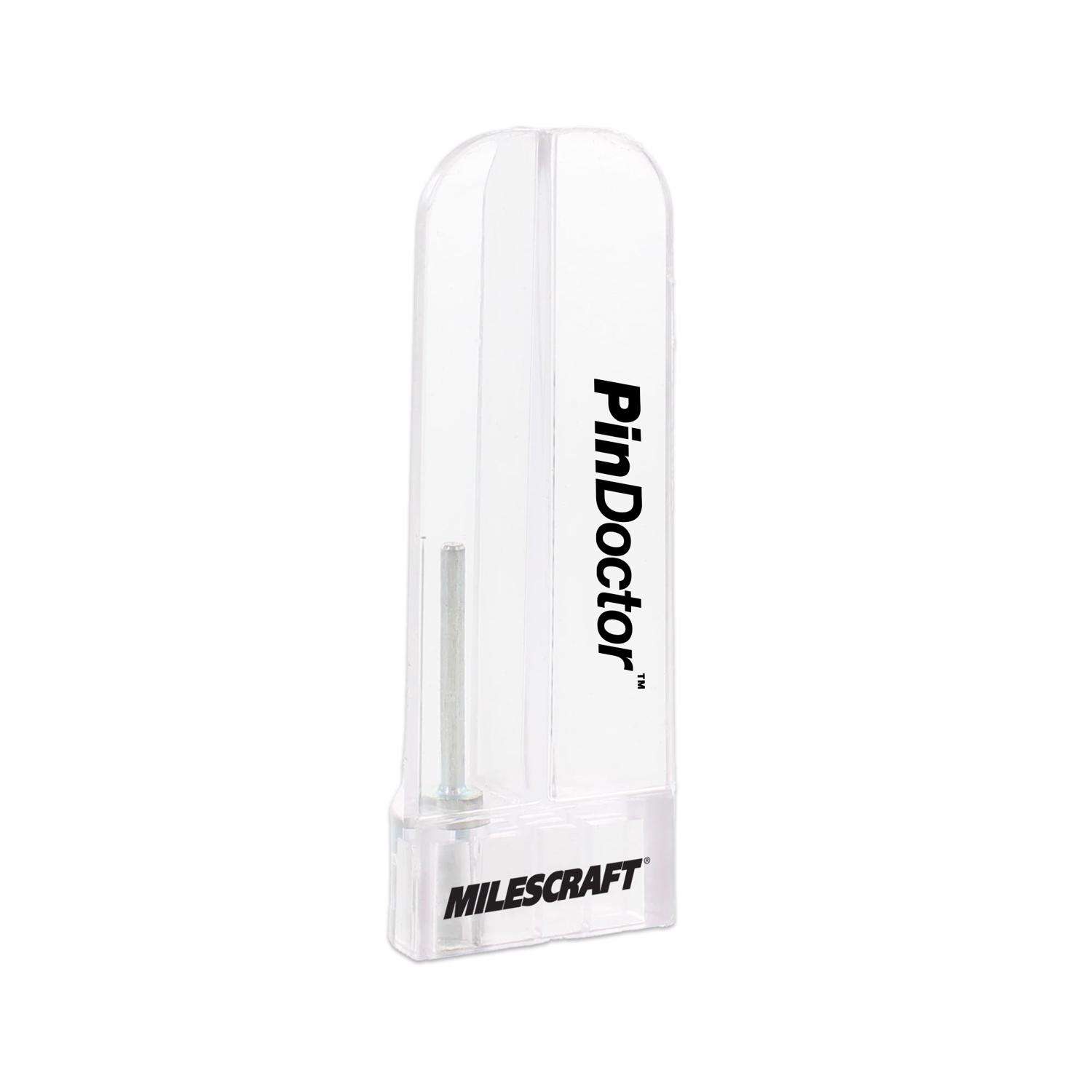

  • Bonus PinDoctor hinge pin removal tool helps remove existing doors
  • Indexing pins ensure door hinge installation jig is properly aligned for jamb / frame and strike plate routing

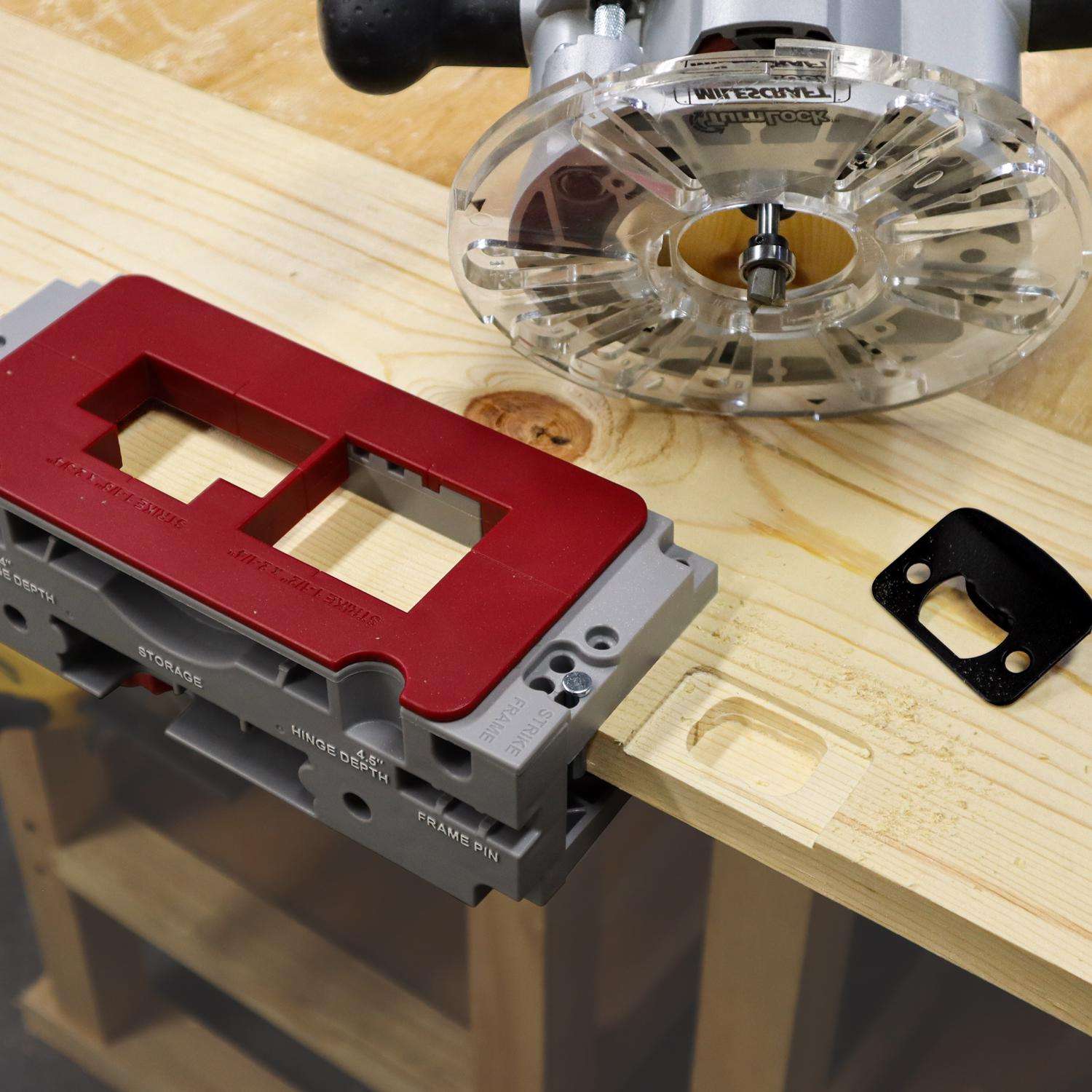

  • Drop in templates to rout 1-1/2 inch x 2-3/4 inch, 1-1/8 inch x 2-3/4 inch strike plates included

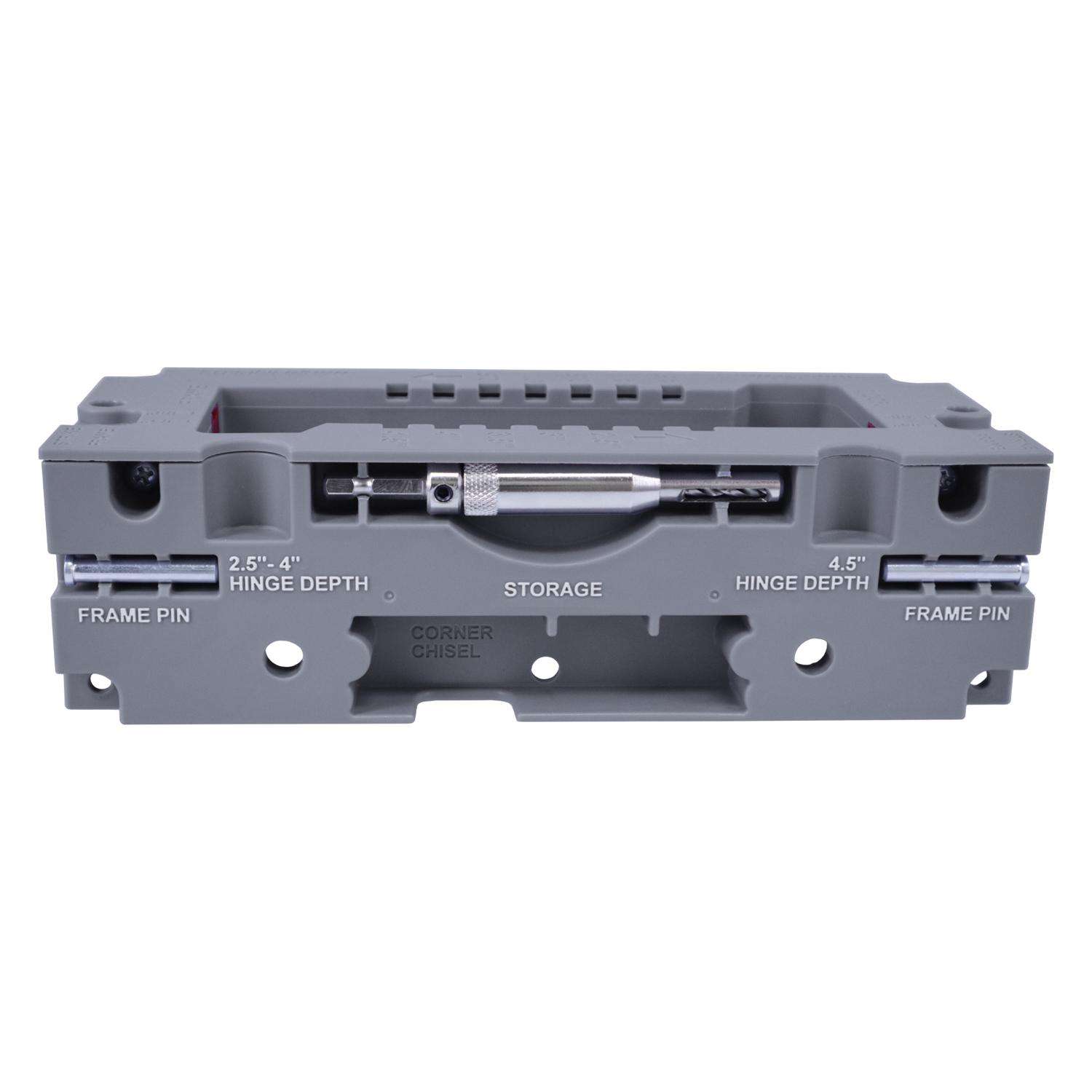

  • Door mortising jig contains built in storage compartments for router bit and available self-centering hinge bit and corner chisel (HingeBit and CornerChisel not included) for convenient retrieval

Specifications

  • What's Included: Jig Main Body, (2) Built-in Clamps, Bonus Pin Doctor, Adjustable Hinge Spacer, 12mm Router bit with Bearing, (2) Corner Radius Inserts, (2) Adjustable Backset Plugs, (2) x Frame/Jamb Indexing Pins, (2) Latch Templates, Strike Plate Template
  • Brand Name: Milescraft
  • Sub Brand: Hinge Jig Plus
  • Product Type: Door Hinge Template
  • Material: ABS Plastic
  • Number in Package: 13 piece
  • Packaging Type: BOXED
  • Brand Name: Milescraft
  • Sub Brand: Hinge Jig Plus
